Introduction

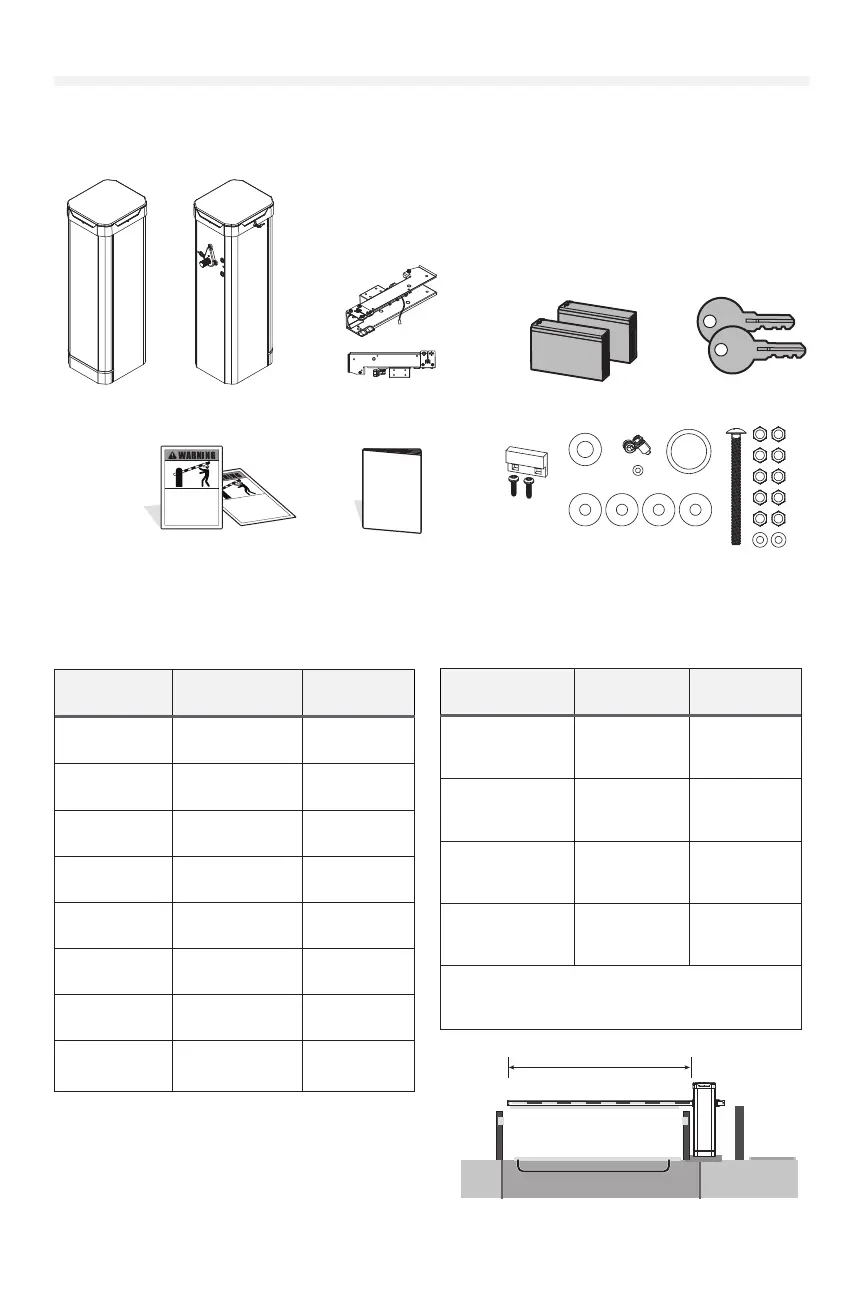

Carton Inventory
NOTE: Operator does not include arm. Please see “Operator and Arm Installation Options” on page 12 for arm
selection and operator compatibility below.
Batteries 12 VDC 7AH (2)
Key (2)
Warning Signs (2)
Installation Manual
Operator BackOperator Front Gate Arm Bracket
with Harness
Hardware
x2
Moving Ba rrier Arm
Can Cause Serious
Injury or Death
Persons are to keep clear! The barrier arm is
able to be moved wit
hout prior warning.
Do not let children operate the barrier arm or
play in the barrier arm area.
This entrance is for vehicles only. Pedestrians
must use
separate entrance.
Moving Barrier Arm
Can Cause Serious
Injury or Death
Persons are to keep clear! The barrier arm is
able to be moved without prior warning.
Do not let children operate the barrier arm or
play in the barrier arm area.
This entrance is for vehicles only. Pedestrians
must use separate entrance.
Arm Selection (Not Provided)
ATTENTION: MUST ORDER CORRECT LIFTMASTER ARM FOR THE INDIVIDUAL SITE APPLICATION SEPARATELY. ONLY
LIFTMASTER ARMS ARE UL CERTIFIED WITH THE OPERATOR.
Straight Arms Description
Operator
Compatibility
BGARM10 10' Functional
Length Arm
PBG, CBG
BGARM10LED 10' Functional
Length Arm w/LED
PBG, CBG
BGARM12 12' Functional
Length Arm
PBG, CBG
BGARM12LED 12' Functional
Length Arm w/LED
PBG, CBG
BGARM14 14' Functional
Length Arm
CBG
BGARM14LED 14' Functional
Length Arm w/LED
CBG
BGARM18 18' Functional
Length Arm
IBG
BGARM24 24' Functional
Length Arm
IBG
NOTE: LED arms come with one LED strip. The system is
designed to use one LED strip/arm.
Articulated Arms Description
Operator
Compatibility
BGARM10ART84 10' Functional
Length Arm with
84" Clearance
PBG
BGARM10ART98 10' Functional
Length Arm with
98" Clearance
PBG
BGARM12ART84 10' Functional
Length Arm with
84" Clearance
PBG
BGARM12ART98 10' Functional
Length Arm with
98" Clearance
PBG
NOTE: Clearance height is measured from the base of
the operator to the bottom of the articulated arm when
in the open position.
Functional Length
