Champion Genesis DH5000T Series User Manual

6
Converting Straight-through Operation to Corner Operation (continued)
! ATTENTION !
The dish rack guides must be repositioned for corner operation.
Follow the steps below to change the dish rack guides for corner operation.

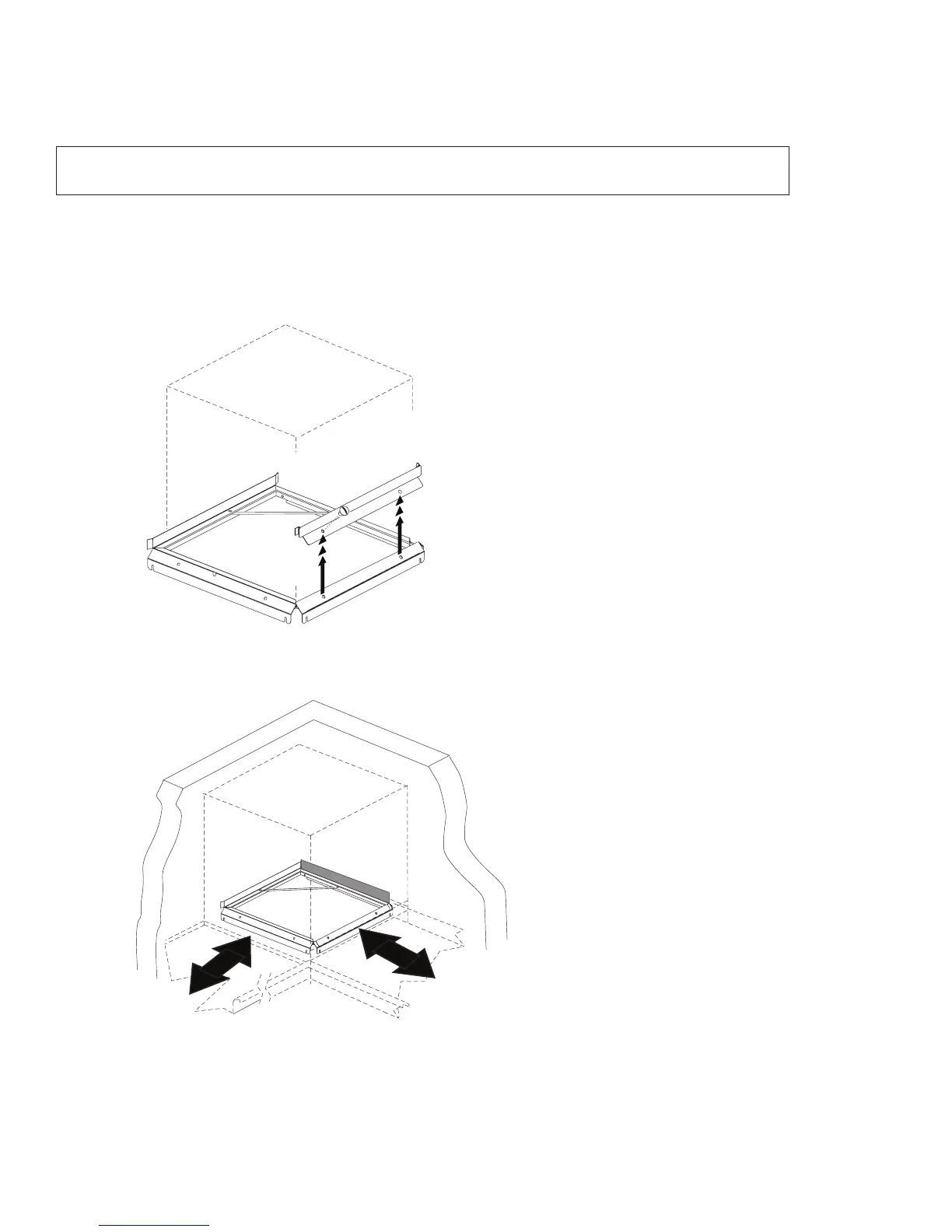

Step 1:
Remove the rack guide (A); save the fasteners.
Step 2:
Move (A) and re-attach as shown in the illustration below.
Step 3:
Slide a dish rack through the machine to check the dish rack clearance.
Dish racks should move smoothly without binding or tipping on the guides.
A
wall
wall
A
Installation
