85
1. Electrical connections for a direct vent
fan (supplied by others) are made
in the Direct Vent Control box, (See
Figure B at right), which was shipped
with the dishwasher and stowed in the
rear of the machine.
2. The control box can be mounted on the
left-side of the machine (See page 79,
Figures I & J) or wall-mounted using
P/N 900958, Model DH5000 Control
Box Wall Mount Kit. The wall-mount kit
is sold separately.
P/N 115109 - Direct Vent Option Installation Instructions
Electrical Connections for a Direct Vent Fan (Supplied By Others)
! IMPORTANT !
Electrical installation must be performed by qualied personnel in accordance with all
local codes and regulations or in the absence of local codes then in accordance with the
National Electrical Code or the Canadian Electrical Code.
DO NOT CONNECT POWER UNTIL THE FAN IS COMPLETELY INSTALLED.

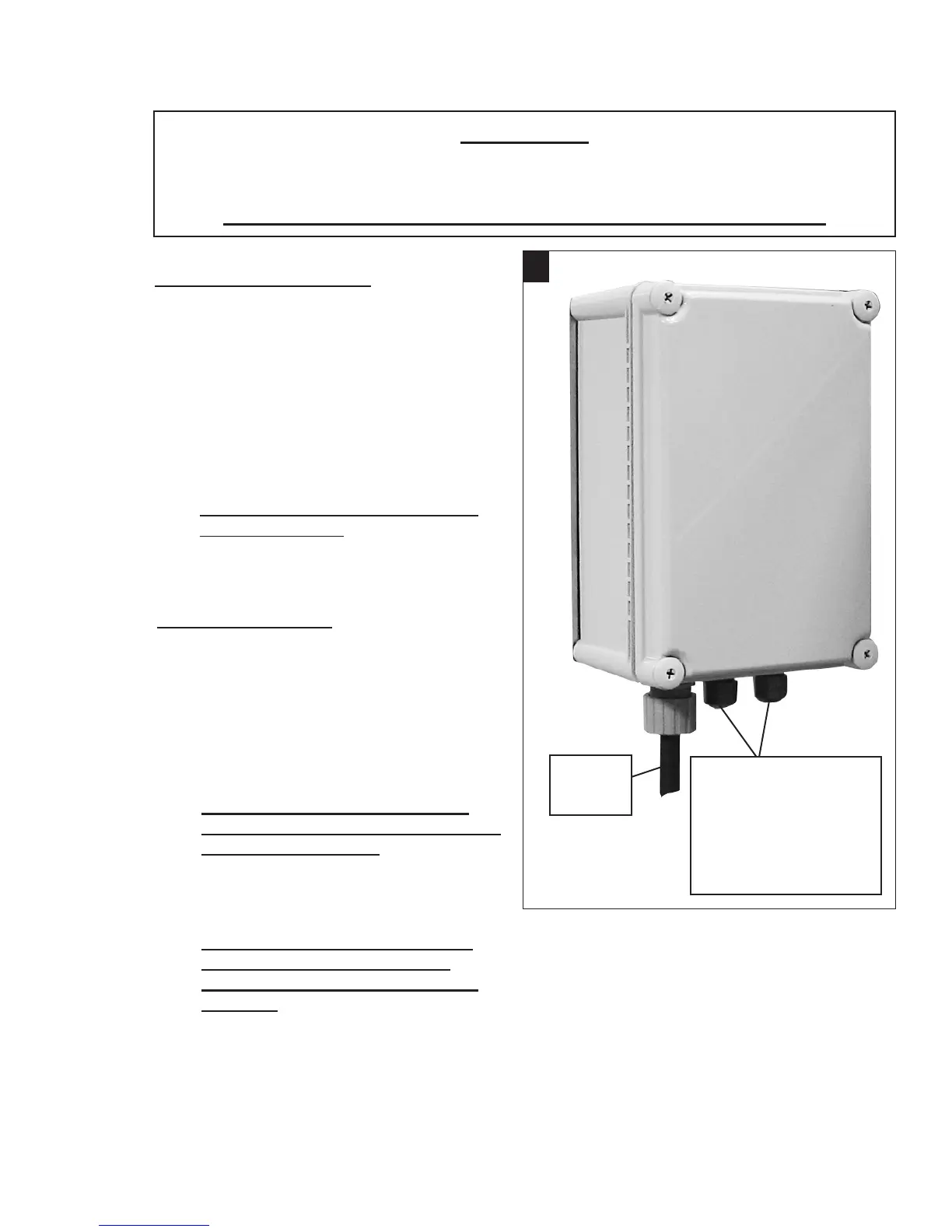

B
Water-tight
Direct Vent
Option
Control Box
Fittings and cables for
an external power
supply and output
to the direct vent
fan must be supplied
by the installer.
Factory
Prewired
Cable
Direct Vent Control Box:
Cable Connections:
1. Refer to Figure B at right.
2. Remove the control box water-tight
cover.
3. An interconnect control cable between
the dishwasher and the control box is
prewired at the factory.
DO NOT CUT NOR DISCONNECT
THIS CABLE WITHOUT PERMISSION
FROM THE FACTORY.
4. One cable is required to bring power
from an external power source into
the control box.
DO NOT USE THE DISHWASHER
AS A POWER SOURCE FOR A
DIRECT VENT FAN SUPPLIED BY
OTHERS.
5. One cable is required to connect
power from the control box to the
direct vent fan.
(continued on next page)
To Next Page
