1. The DH5000T dishwasher equipped with a Condensate Removal Option requires an
incoming cold water supply only.
COLD WATER — 3/4" NPT, 55-75°F/13-24°C maximum temperature, with a minimum
incoming owing pressure of 45 PSI measured at the dishwasher supply connection
before adjusting operating pressure to 20/25 PSI owing pressure.
2. A water hardness of 3 grains/gal (US) [51.3 mg/L] or less is recommended.
3. The cold water supply connection is located on the left side of the dishwasher
approximately 74" above the nished oor (see the illustration below).
4. A manual shut-off valve, 3/4" or larger, should be installed in the cold water supply line
as close to the dishwasher as possible for servicing.
Installation
! VERY IMPORTANT !
The incoming cold water supply pressure must be a minimum
of 45 PSI flowing pressure measured at the cold water supply connection.

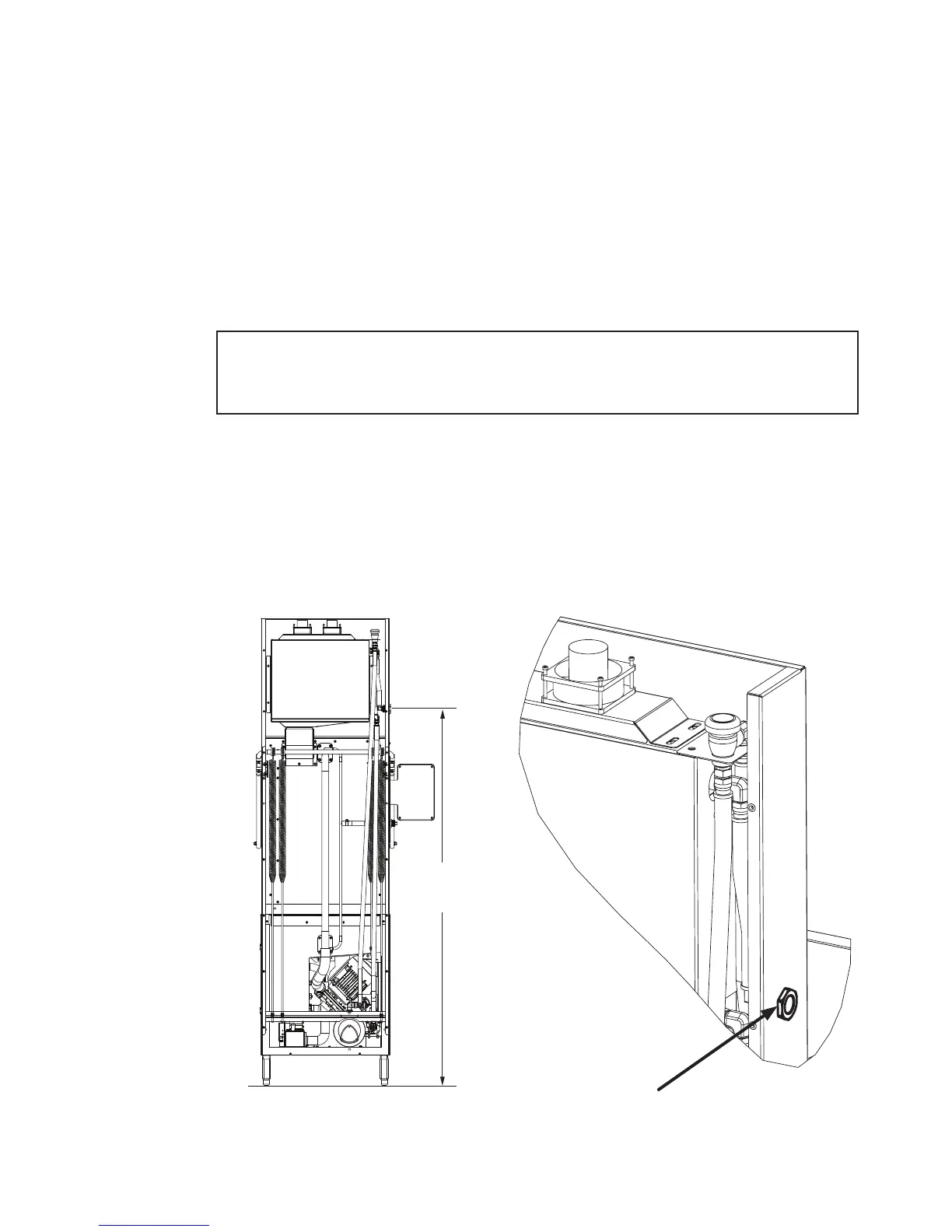

Water Connections for Condensate Removal Option Model
74"
[1880]
3/4" NPT
Cold water
supply connection
Detail View
