ChamSys MagicQ Compact Series - Removing Front Panel Metalwork and Extrusions

MagicQ Training Course
7 of 21 – Part Three: Maintenance
www.chamsys.co.uk
For any other repairs to the console, such as screen replacement the front
panel metalwork needs to be removed.
The side and front extrusions are removed to gain access to the front of the
main PCB.

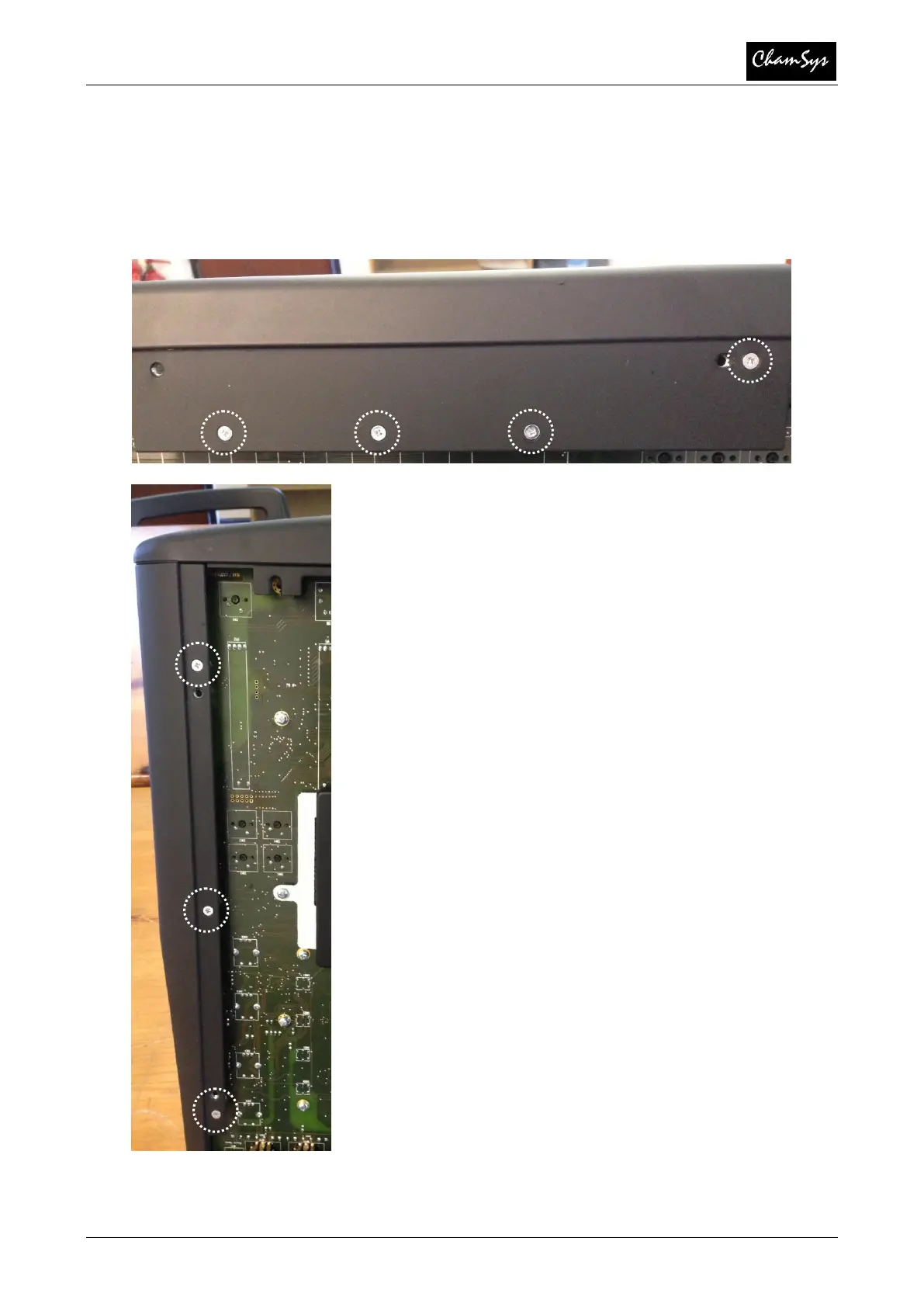

Remove the 10 of M3 x 5mm counter sunk screws on
the metal extrusions.
