MagicQ Training Course
6 of 21 – Part Three: Maintenance
www.chamsys.co.uk

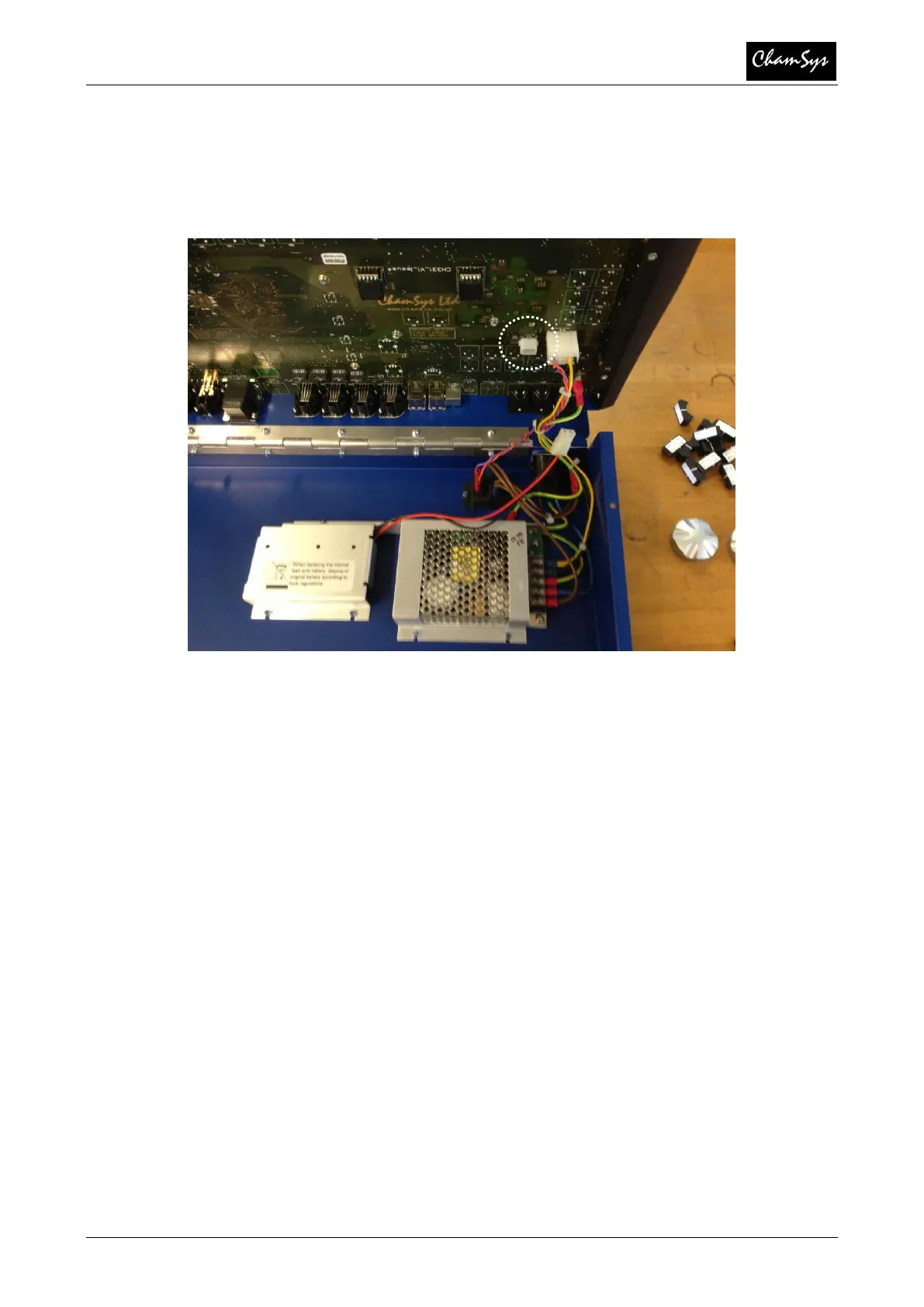

The battery needs to be disconnected from the main PCB to allow the console
to be opened fully.
Disconnect this as below.
At this stage many minor repairs such as replacing the hard drive, power supply
and UPS battery can be carried out, without the need to strip the console down
any further.
