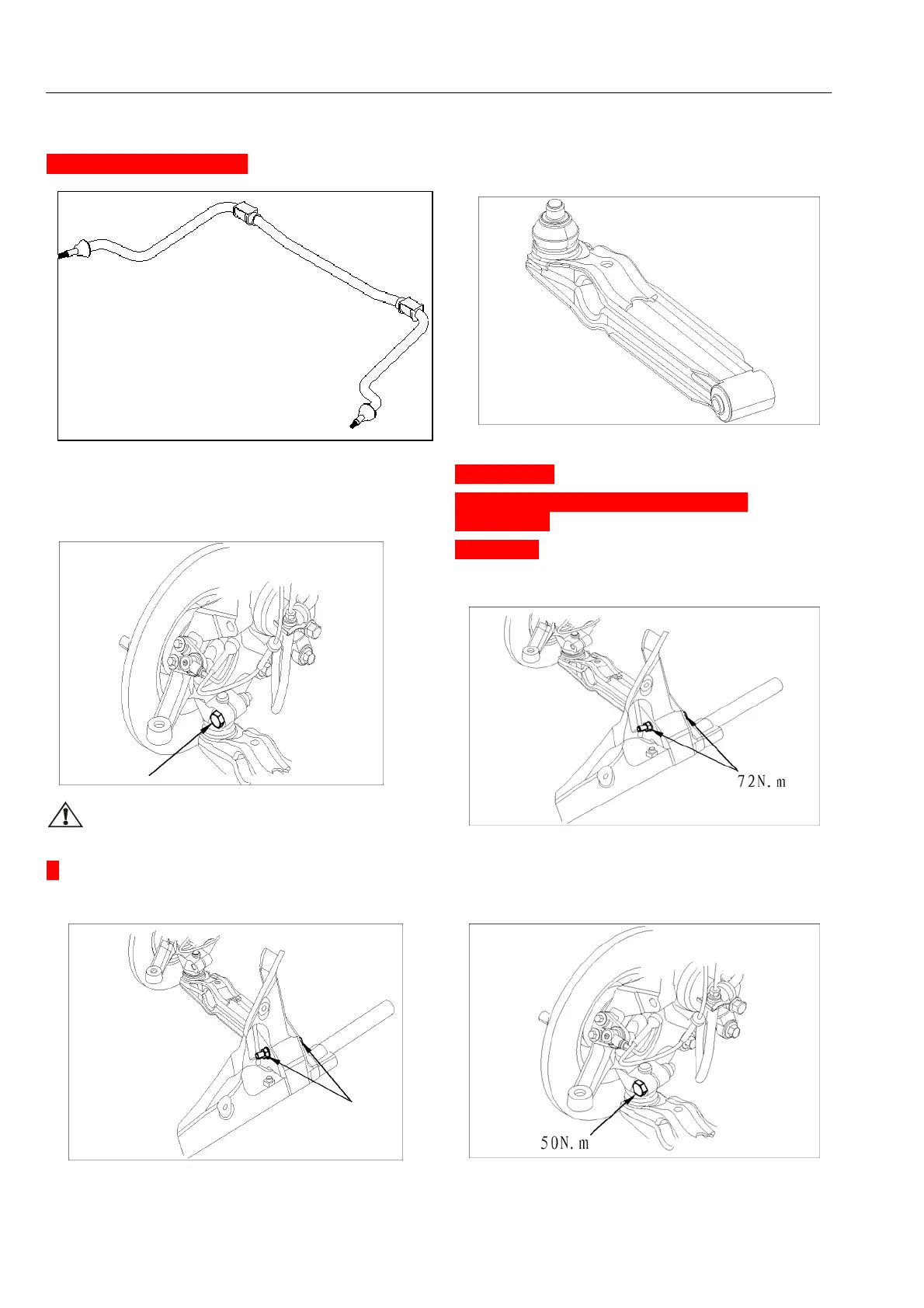

201-01-4 Front Suspension
Disassembly and Installation (Continued)
7. Disassemble the tie rod
8. Disassemble the connecting bolts between the
ball head pin of the front oscillating arm and the
steering knuckle
Warning: Use cotton cloth to protect the ball
head from being damaged.
9. Disassemble the bolts of the front oscillating arm
and the front oscillating arm mounting plate.
10.
Disassemble front oscillating arm
Installation
Reverse the disassembly process for
installation.
1. Install the bolts of the front oscillating arm and
the front oscillating arm mounting plate.
2.Install the
connecting bolts between the ball
head pin of the front oscillating arm and the
steering knuckle
Benni Mini
