201-01-8 Front Suspension
Disintegration and Assembly

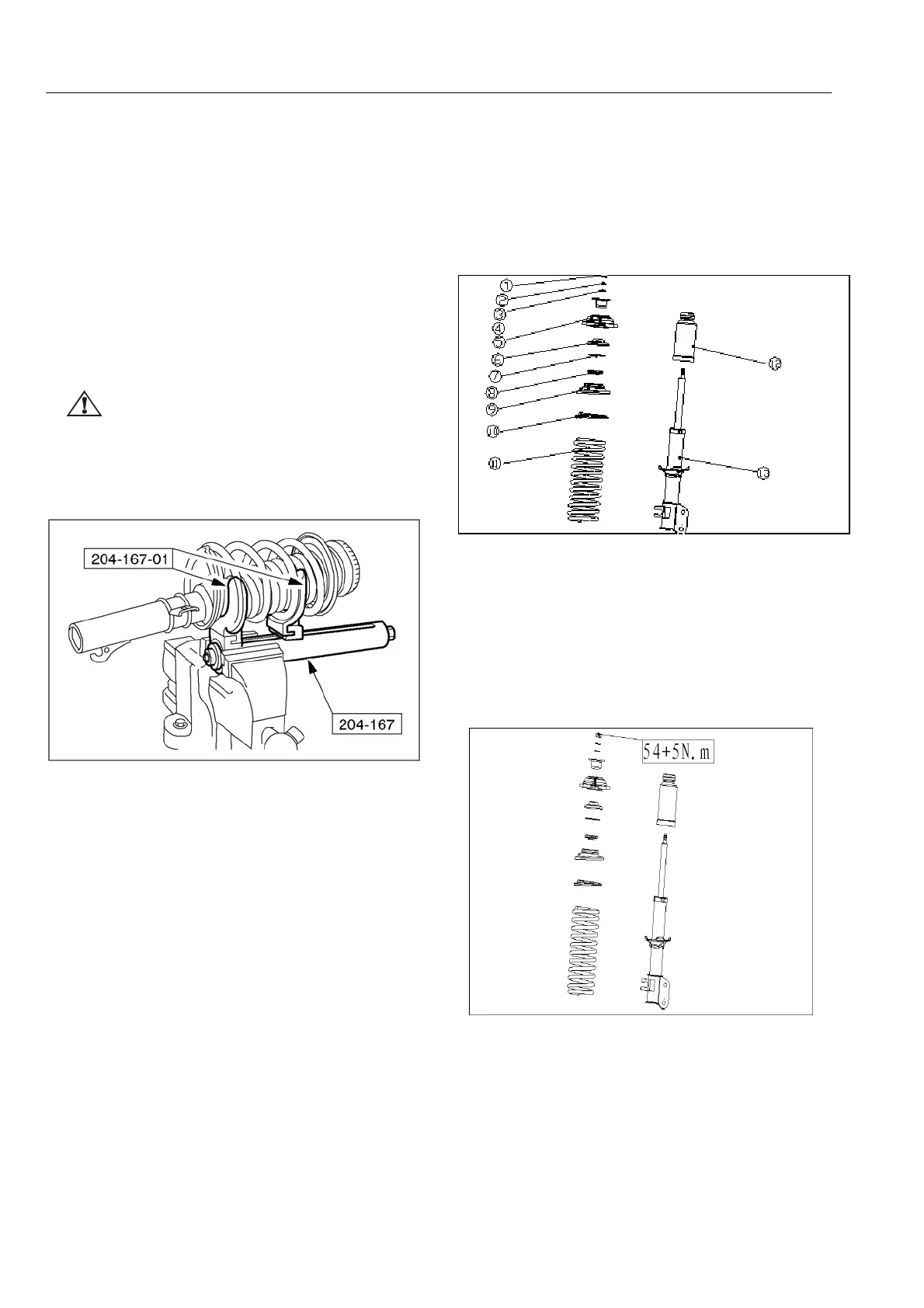

(d) Shock absorbing supporting column and
absorbing supporting spring assembly (14 783 4)
Disintegration
1. Disassemble the suspension assembly. See this
section for relevant information.
2.
Warning: Always be careful to avoid injury
as the spiral spring is at the extreme
strained state.
Compress the spiral spring partially.
3. Disintegrate the front shock absorbing devices
and the spiral springs.
1. Disassemble the nuts
2. Disassemble the washers
3. Disassemble the elastic washers
4. Disassemble the sub assembly of the inner
connecting sleeve.
5. Disassemble the sub assembly of the outer
connecting sleeve.
6. Disassemble the washers
7. Disassemble the bearing pad.
8. Disassemble the bearings.
9. Disassemble the mounting
10. Disassemble the cushion of the spring.
11. Disassemble the spiral spring.
12. Disassemble the collision mat.
13.
Disassemble the absorbing assembly
Assembly
1. Note: Place the end of the spring on the spring seat
correctly.
Reverse the disassembly process for installation.
