Char-Broil 463232012 - Page 19

10
11

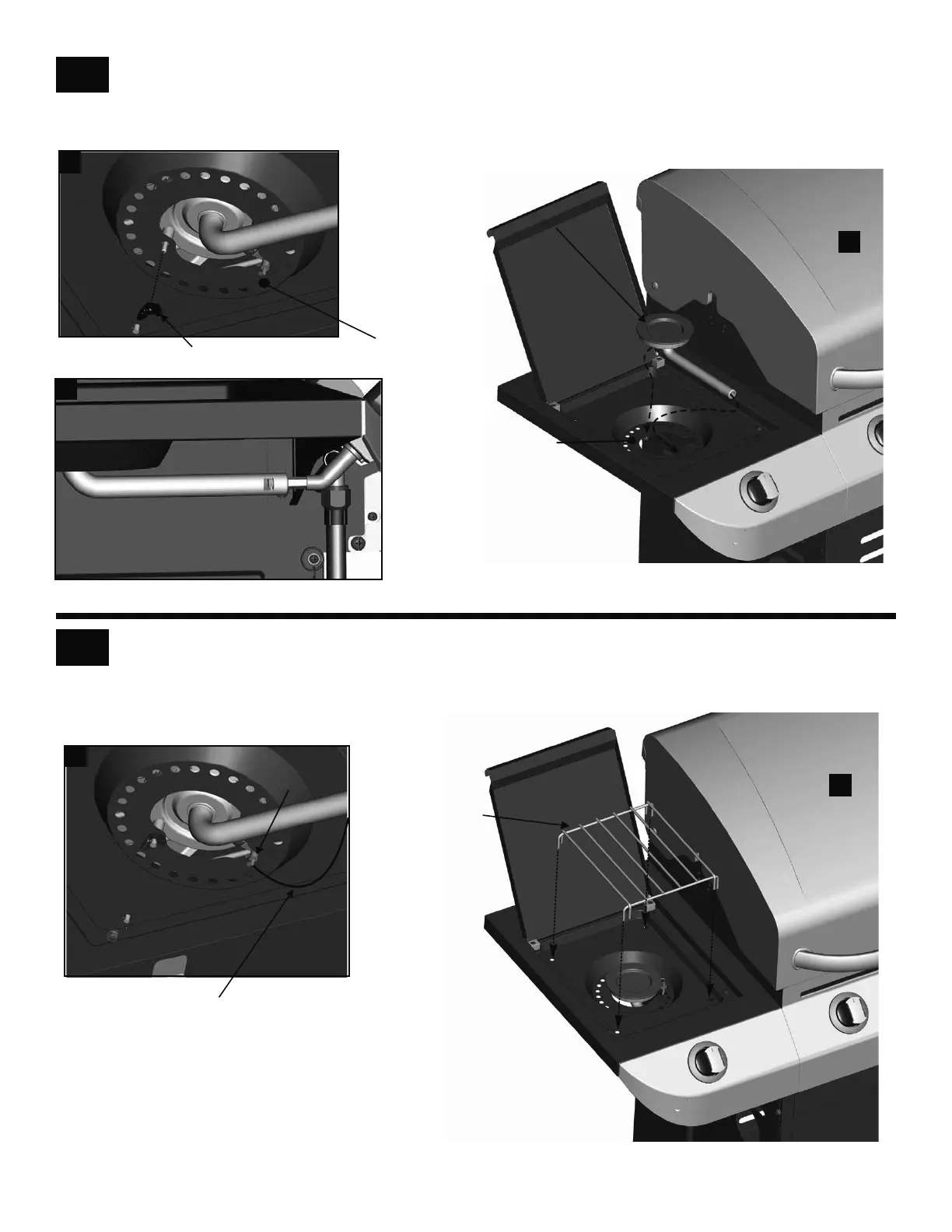

Insert sideburner burner into left shelf.
shelf, shown A.
The stud on bottom of burner
fits into rear small hole in sideburner drip pan on
Secure burner to sideburner drip pan with one Wing nut, shown B.
Make sure burner tube
engages sideburner valve, shown C.
19
Under sideburner shelf, attach sideburner ignitor wire to electrode, shown A. Place sideburner grate onto sideburner shelf,
aligning grate legs with holes in shelf, shown B.
B
Sideburner drip pan
Wing nut
Burner tube
Valve
C
A
Sideburner burner
Sideburner drip pan
A
Sideburner Ignitor Wire
Electrode
Sideburner grate
B
