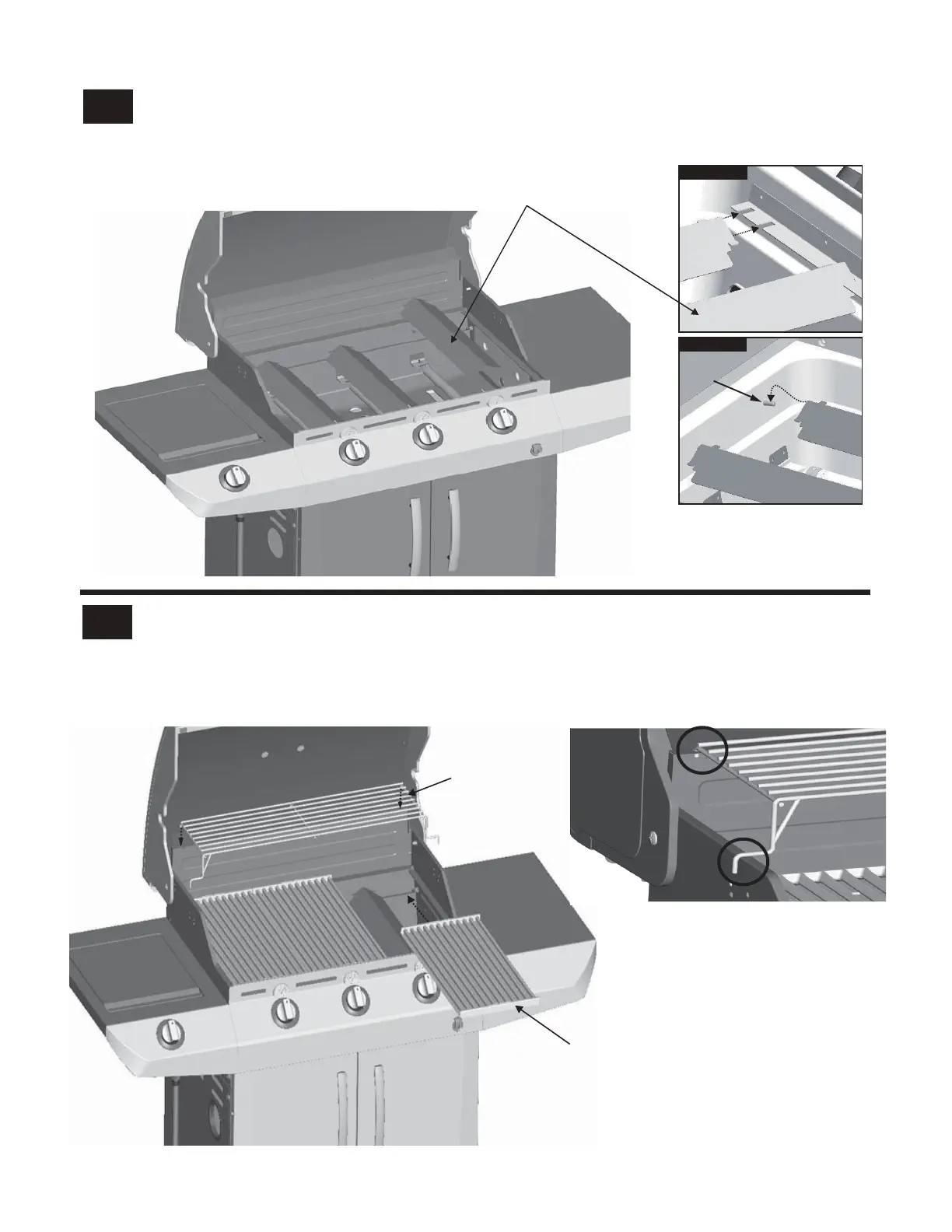

Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in
back of firebox.
Back of firebox
Front of firebox
Note: Some parts omitted for
clarity of illustration
Flame tamers
Pin
17
Place cooking grates onto the firebox as shown. Insert the two wire ends at rear of warming rack into holes in back of
firebox. Front wires of warming rack rest on sides of firebox.
Note: Some parts omitted for
clarity of illustration
Assembled
warming rack
Warming rack
Cooking grate
