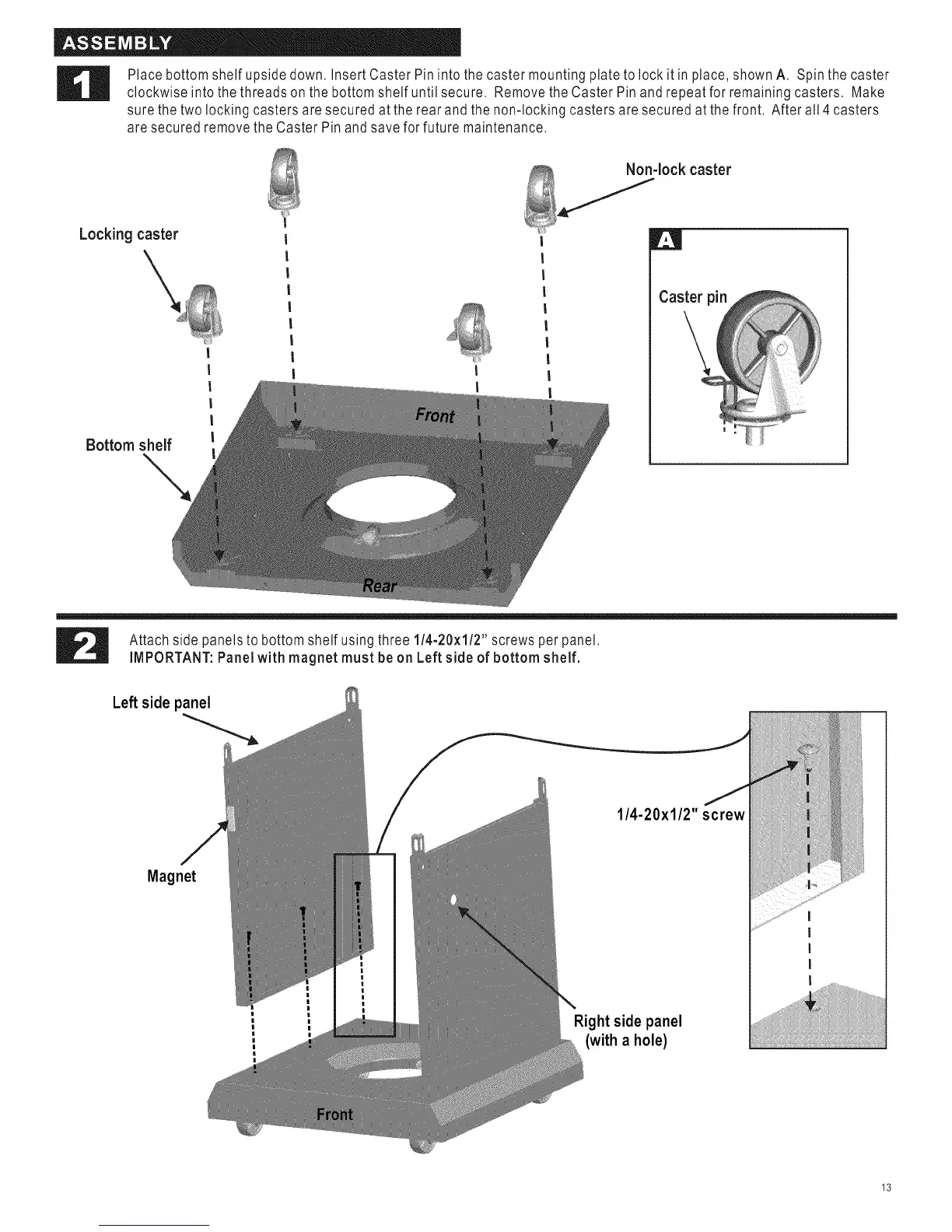

_'_ Placebottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spinthe caster
clockwise intothe threads on the bottomshelf until secure. Removethe Caster Pin and repeatfor remaining casters. Make
sure the two locking casters are secured atthe rear and the non-locking casters are secured at the front. After all 4 casters
are secured removethe Caster Pin and save for future maintenance.
Locking caster
Bottom shelf
Non-lock caster
|
Caster pin
Attach side panelsto bottomshelf usingthree 1/4-20xl/2" screws per panel.
IMPORTANT:Panel with magnet must be on Left side of bottom shelf.
Left side panel
Magnet
/
1/4-20x1/2" screw
Right side panel
(with a hole)
