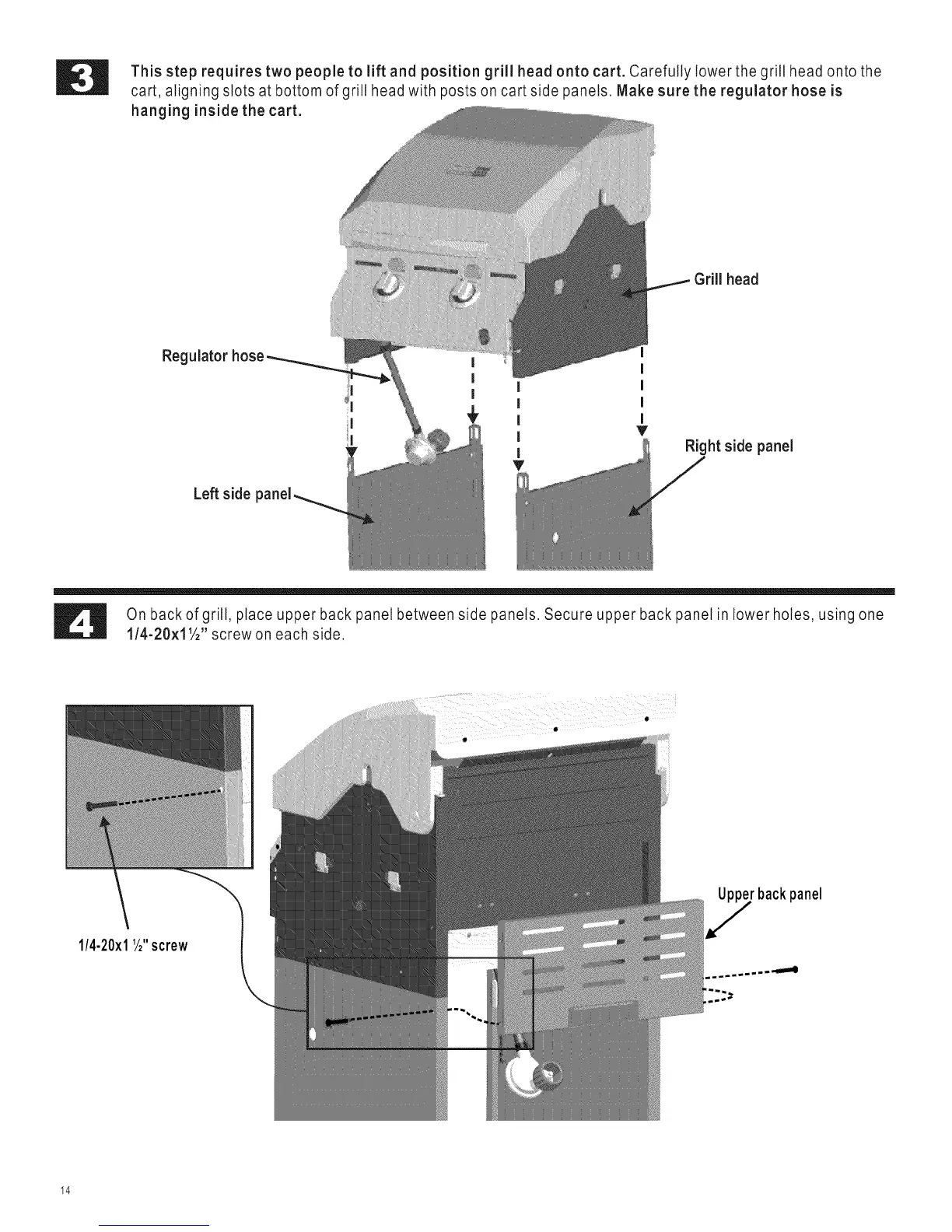

This step requires two people to lift and position grill head onto cart. Carefully lower the grill head onto the
cart, aligning slots at bottom of grill head with posts on cart side panels. Make sure the regulator hose is
hanging inside the cart.
Grill head
Reg
Left side
il
Right side panel
On back of grill, place upper back panel between side panels. Secure upper back panel in lower holes, using one
1/4-20x11/2'' screw on each side.
'backpanel
1/4-20xl ½"screw
,..,,===4
14
