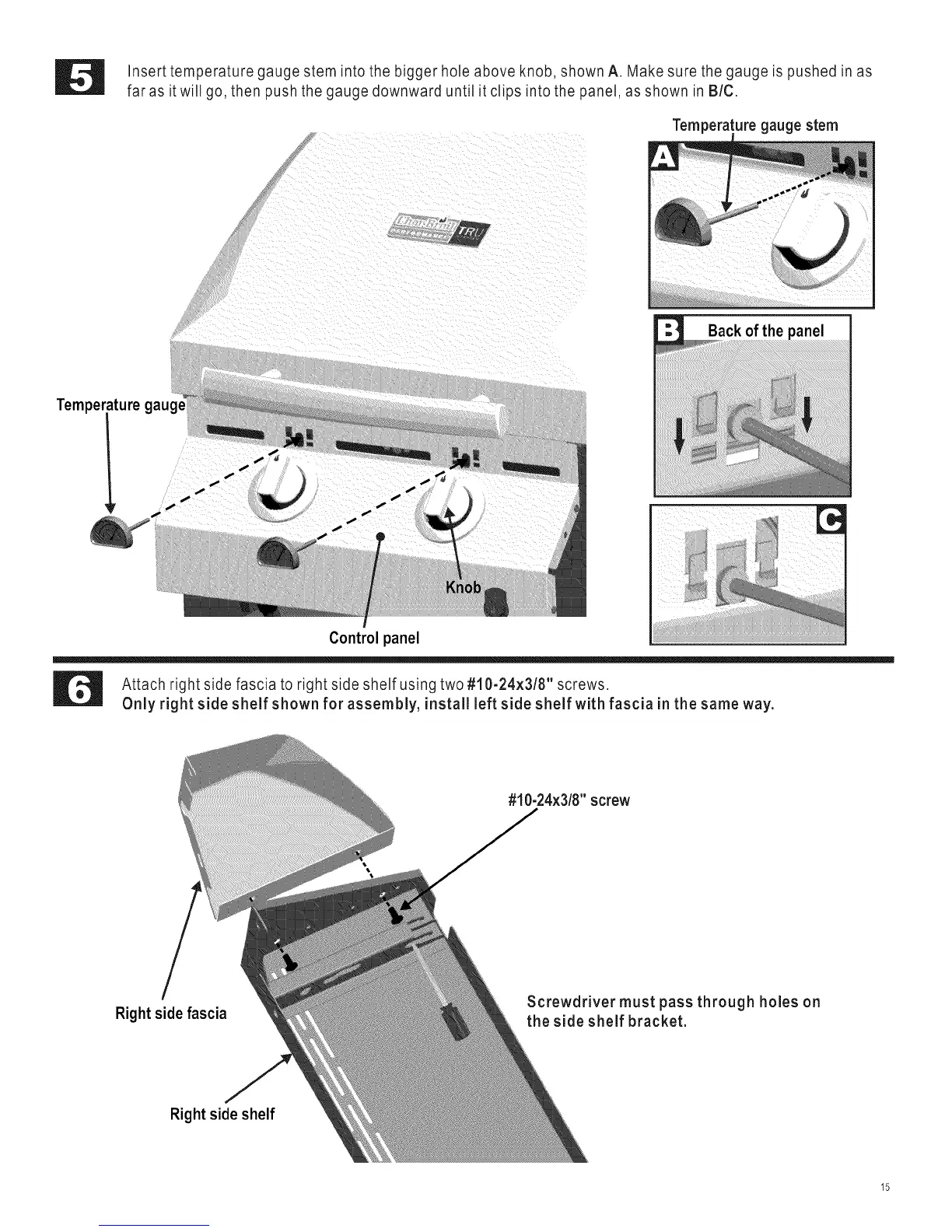

Insert temperature gauge stem into the bigger hole above knob, shown A. Make sure the gauge is pushed in as
far as it will go, then push the gauge downward until it clips into the panel, as shown in B/C.
Tern ure gauge stem
Back of the panel
Temper iture gaug__'
Control panel
Attach right side fascia to right side shelf using two #10-24x3/8" screws.
Only right side shelf shown for assembly, install left side shelf with fascia in the same way.
#10-24x3/8" screw
Right side fascia
Screwdriver must pass through holes on
the side shelf bracket.
Right side shelf
15
To Next Page
