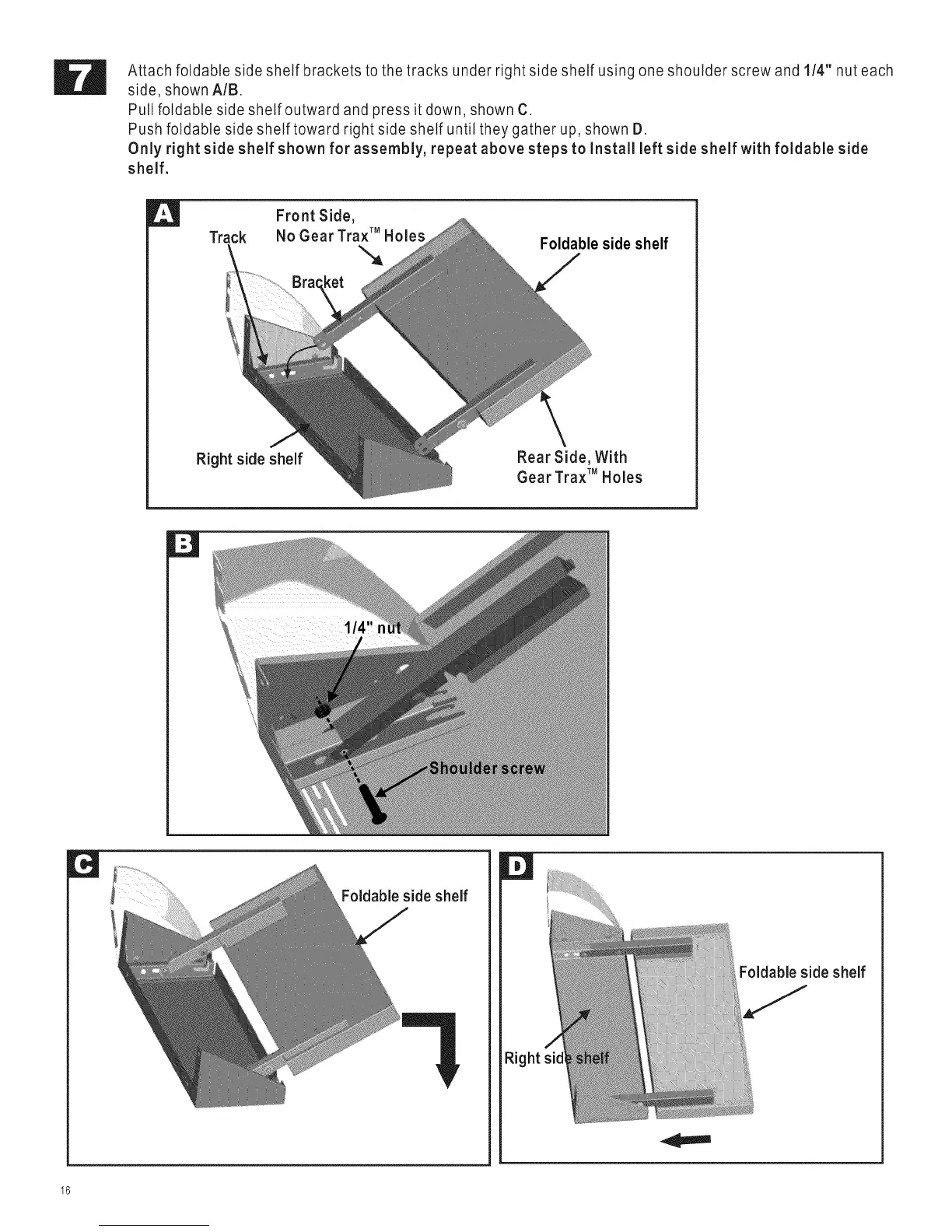

Attach foldable side shelf brackets to the tracks under right side shelf using one shoulder screw and 1/4" nut each
side, shown A/B.
Pull foldable side shelf outward and press it down, shown C.
Push foldable side shelf toward right side shelf until they gather up, shown D.
Only right side shelf shown for assembly, repeat above steps to Install left side shelf with foldable side
shelf.
Front Side,
Track No Gear Trax TM Holes
Foldable side shelf
Right side shelf
Rear Side, With
Gear Trax TM Holes
Foldable side shelf
Foldable side shelf
Right
