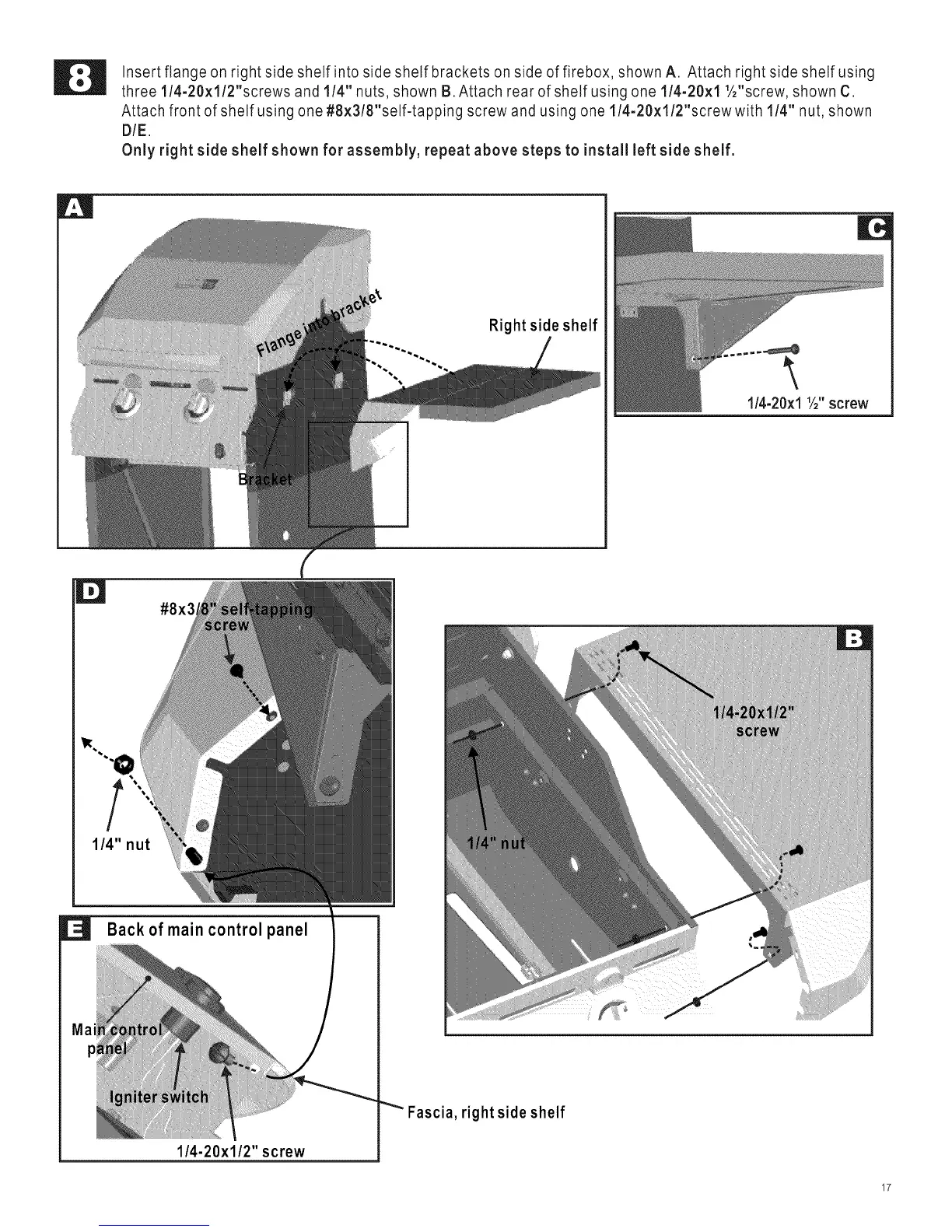

Insert flange on right side shelf into side shelf brackets on side of firebox, shown A. Attach right side shelf using
three l/4-20xl/2"screws and 1/4" nuts, shown B. Attach rear of shelf using one 1/4o20×1 1/2"screw,shown C.
Attach front of shelf using one #Sx3/8"self-tapping screw and using one ll4-20xll2"screwwith 1/4" nut, shown
DIE.
Only right side shelf shown for assembly, repeat above steps to install left side shelf.
I
Right side shelf
1/4-20xl 1/2"screw
#8x3
QI
Mai
P
1/4" nut
Back of main control panel
w!
1/4-20x1/2 screw
Fascia, right side shelf
