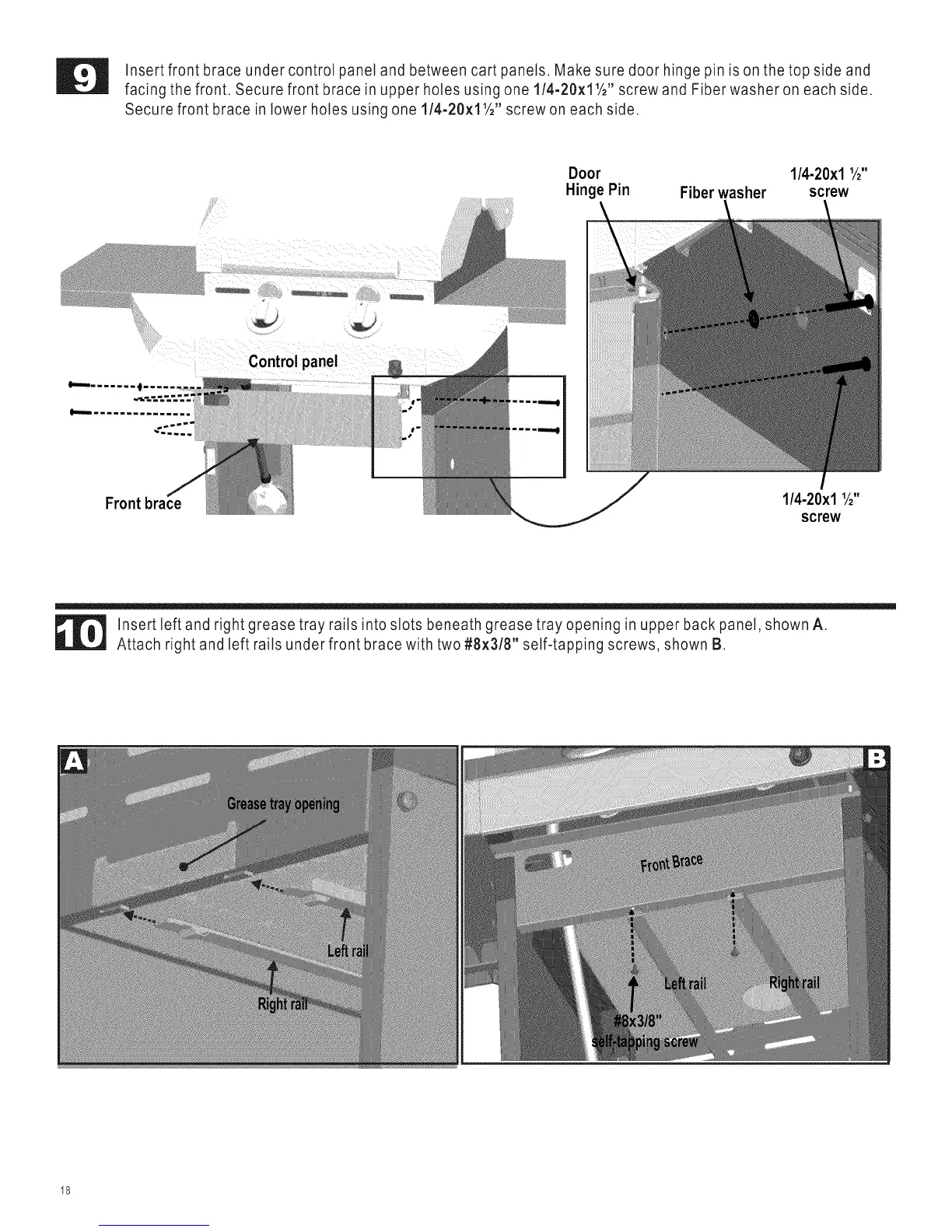

Insert front brace under control panel and between cart panels. Make sure door hinge pin is on the top side and
facing the front. Secure front brace in upper holes using one 1/4-20x11/2" screw and Fiber washer on each side.
Secure front brace in lower holes using one 1/4-20x11/2'' screw on each side.
Door 1/4-20xl 1/2"
Hinge Pin Fiber washer screw
Control panel
Front 1/4-20xl 1/2"
screw
Insert left and right grease tray rails into slots beneath grease tray opening in upper back panel, shown A.
Attach right and left rails under front brace with two #8x3/8" self-tapping screws, shown B.
18
