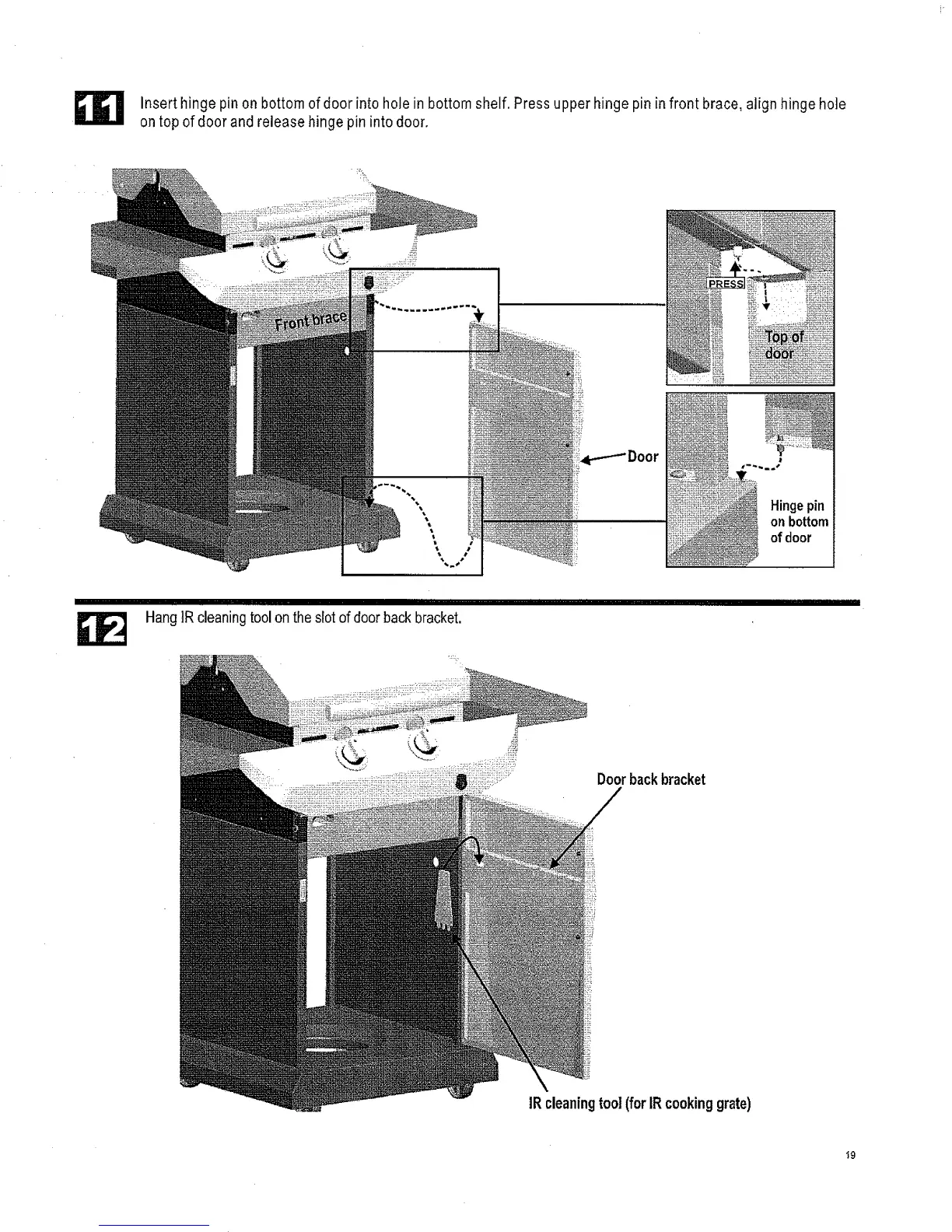

Insert hinge pin on bottom of door into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole
on top of door and release hinge pin into door.
Hingepin
onbottom
ofdoor
I I'1" '
Hang]Rcleaningtool on theslot of doorback bracket.
I I I .... I1'11I'1'1I1'1 IIIIIIIII'1'1
Doorbackbracket
IRcleaningtool (forIRcookinggrate)
