ASSEMBLY
1

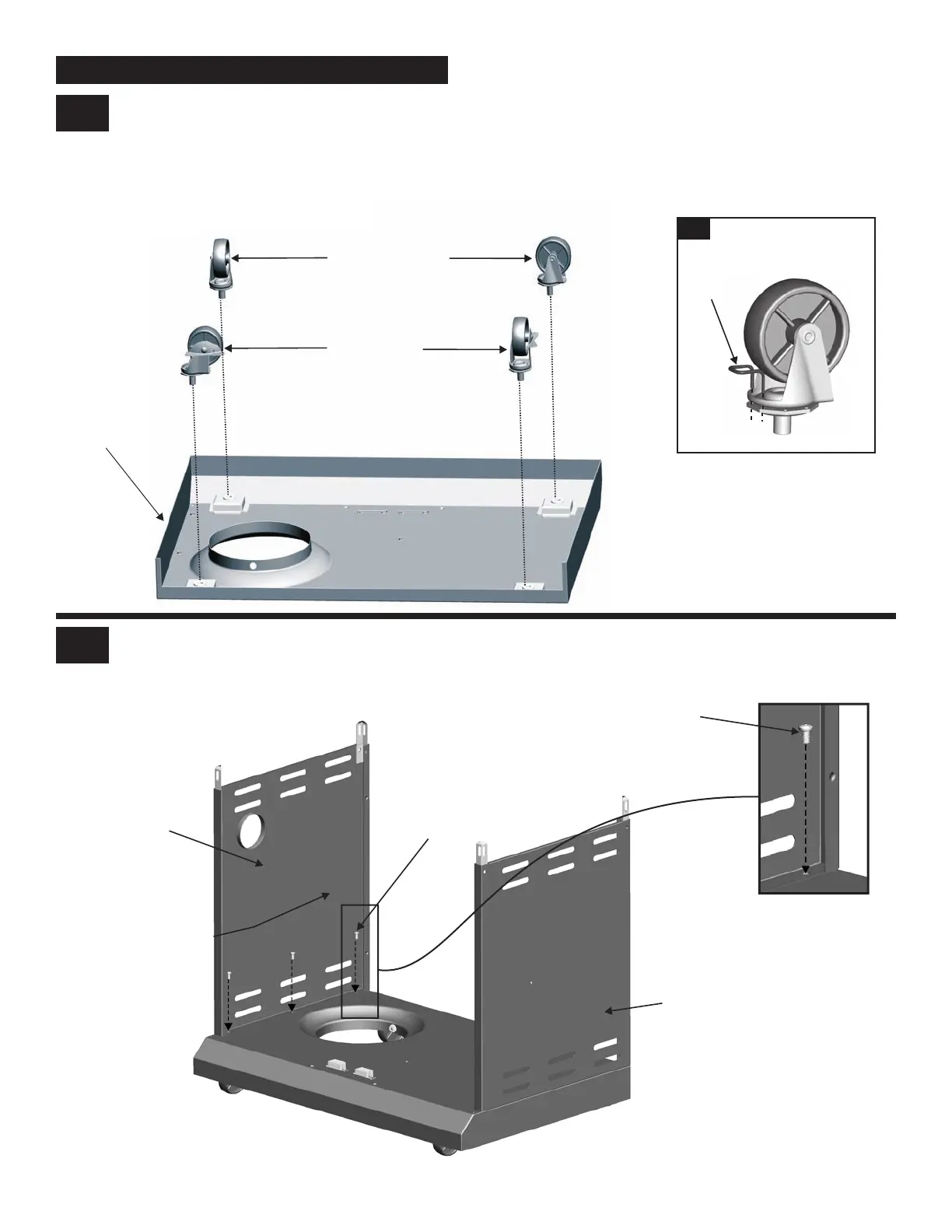

Attach side panels to bottom shelf using three 1/4-20x1/2” screws per panel.
IMPORTANT: Panel with large hole must be on left side of bottom shelf.
Left side panel
(with large hole)
Right side panel
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
Locking caster
Bottom shelf
Rear
Front
Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster
clockwise into the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters. Make
sure the two locking casters are secured at the rear and the non-locking casters are secured at the front. After all 4 casters
are secured remove the Caster Pin and save for future maintenance.
Non-lock caster
Caster pin
A
1/4-20x1/2” screw
1/4-20x1/2” screw
17
To Next Page
