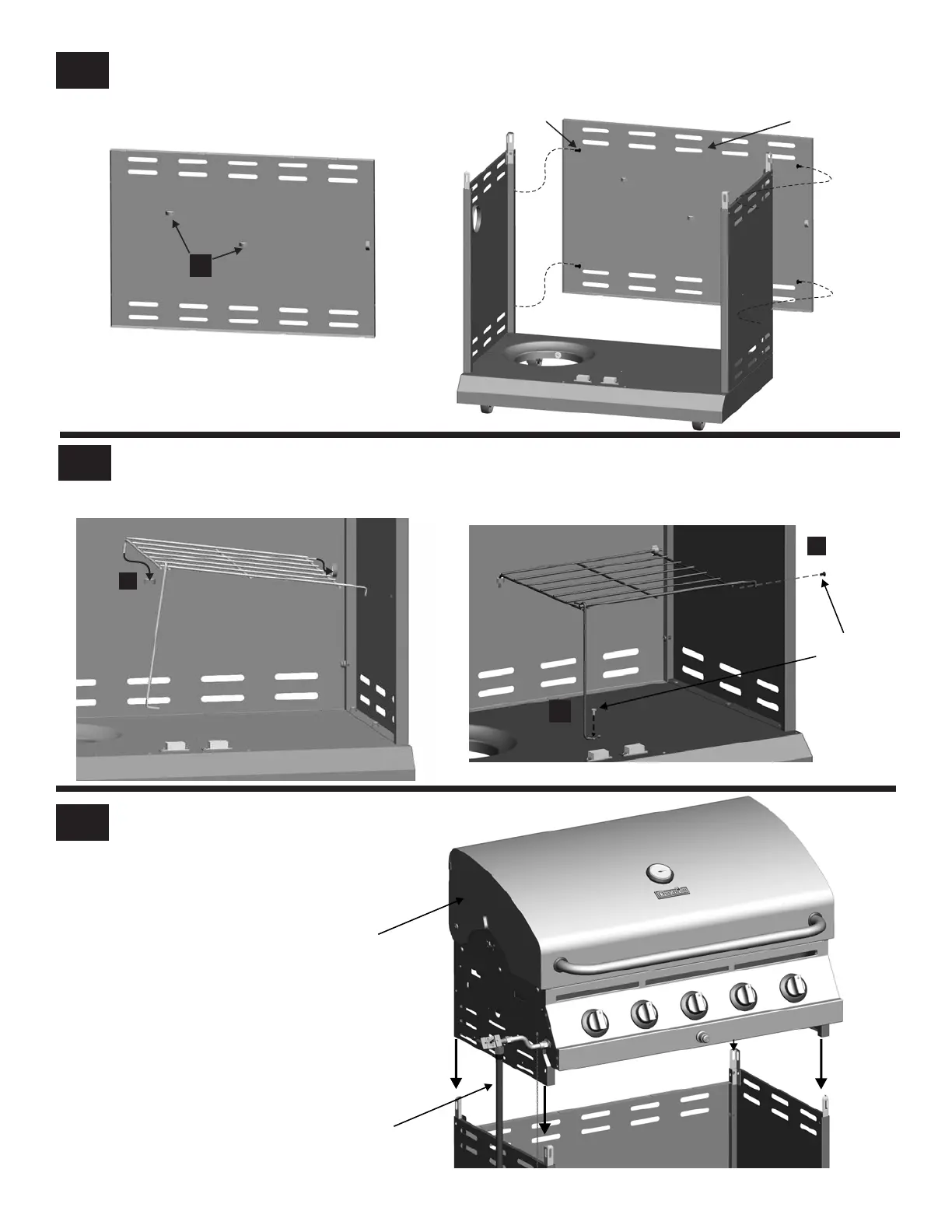

This step requires two people
to lift and position grill head
onto cart. Carefully lower the grill
head onto the cart, aligning slots at
bottom of grill head with posts on
cart side panels. Make sure the
regulator hose is hanging outside
the cart. Grill head must face open
side of cart.
Lower back panel
Regulator hose
Grill head
A
Upside
Downside
Left
Right
Place lower back panel between side panels at rear of bottom shelf. Make sure the slots are positioned as shown (A). Secure
lower back panel to side panels using two 1/4-20x1/2” screws on each side.
1/4-20x1/2” screw
4
Insert wire ends into lower back panel (A). Attach front right side of wire shelf to the right side panel with one #8-32X3/8"
screw (B). Leg attaches to bottom shelf with one #8-32X3/8" screw (C).
A
B
C
#8-32X3/8"
screw
18
To Next Page
