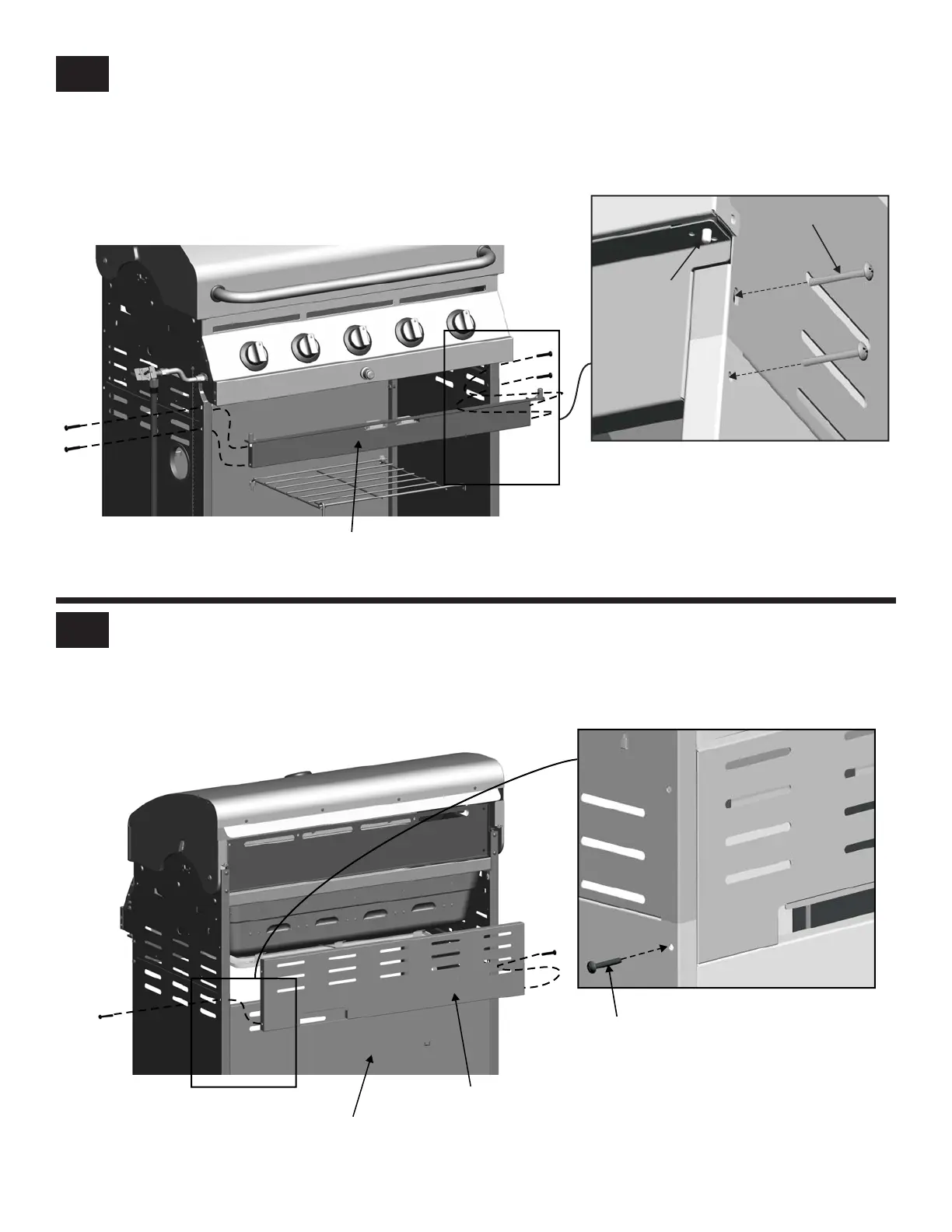

On back of grill, place upper back panel between side panels and above lower back panel. Secure upper back panel, in
lower holes, using one 1/4-20x1½” screw on each side. Do not fully tighten screws until side shelf installation is
complete in later steps.
6
1/4-20x1½” screw
1/4-20x1½”
screw
Front brace
Upper back panel
Lower back panel
Door Pin in
downward
position
Insert front brace under control panel and between cart side panels. Secure using two 1/4-20x1½” screws on each side.
