Char-Broil Basic C58G4 - Page 20

8
9

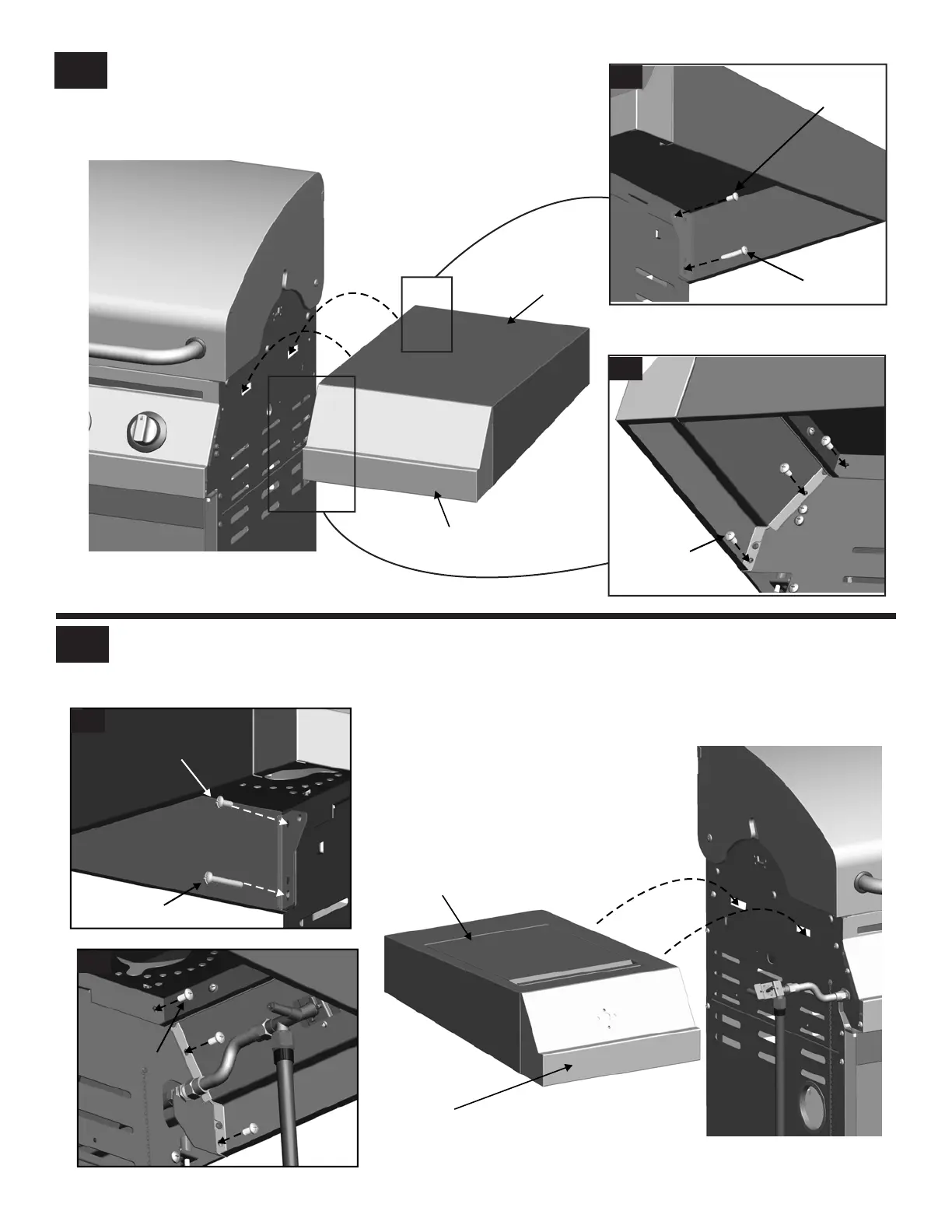

Insert tabs on right side shelf into rectangular slots in side of firebox.
Attach rear of shelf using one 1/4-20x1/2” screw in upper hole. Use
one 1/4-20x1½” screw in lower hole, shown A. Attach front of shelf and
fascia using three 1/4-20x1/2” screws, shown B.
1/4-20x1½”
screw
Tabs into holes
Tabs into holes
Right side shelf
Fascia, right side shelf
1/4-20x1/2”
screw
Insert tabs on left sideburner shelf assembly into rectangular slots in side of firebox. Attach rear of shelf using one 1/4-
20x1/2” screw in upper hole. Use one 1/4-20x1½” screw in lower hole, shown A. Attach front of shelf and fascia using
three 1/4-20x1/2” screws, shown B. Now you may fully tighten lower screws on upper back panel.
Fascia, left sideburner shelf
Left sideburner shelf
1/4-20x1/2”
screw
A
B
1/4-20x1/2”
screw
1/4-20x1½” screw
1/4-20x1/2”
screw
B
A
20
