10
11

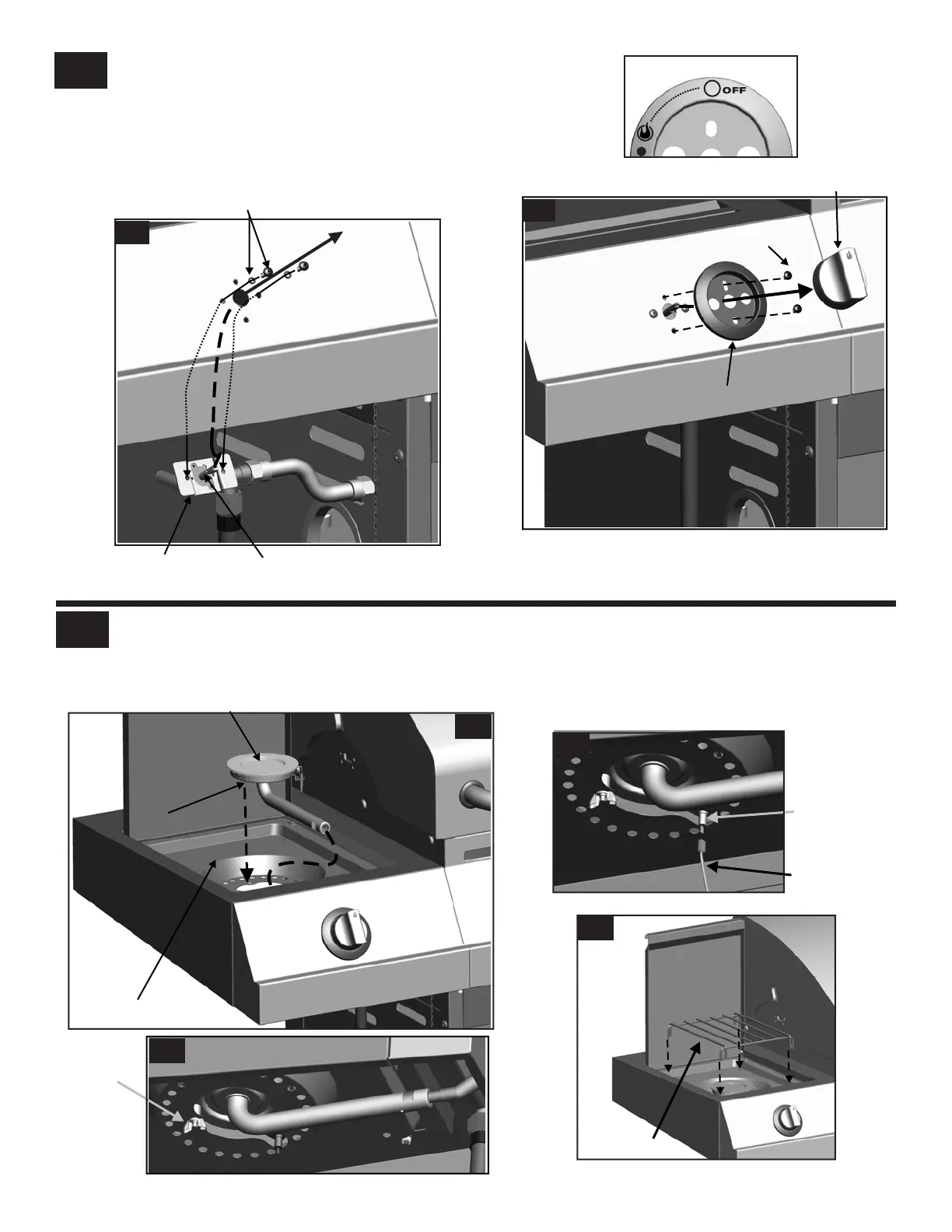

First, remove the two screws and lock washers from the sideburner valve
bracket. Position sideburner valve bracket beneath sideburner shelf fascia so
that valve stem comes through larger center hole in fascia. Secure using lock
washers and screws that were removed from bracket, shown A. Attach control
knob bezel to fascia using two #8-32x1/4” screws. Press sideburner control
knob onto valve stem, shown B.
Control knob
Control knob bezel
Install bezel with “OFF” at top.
Sideburner
valve bracket
Sideburner
valve stem
Sideburner shelf fascia
#8-32x1/4”
screw
Screws and Washers
taken from Valve bracket
Note: Use left and right
holes on fascia to
attach valve bracket
Note: Use upper and lower holes
on fascia to attach bezel
A
B
A
C
Insert sideburner burner into left shelf. The stud on bottom of burner fits into rear small hole in sideburner drip
pan on Secure burner to sideburner drip pan with one Wing nut, make sure burner tube engages shelf, shown A.
sideburner valve, shown B. Under sideburner shelf, attach sideburner ignitor wire to electrode, shown C. Place
sideburner cooking grate onto sideburner shelf, aligning grate legs with holes in shelf, shown D.
Sideburner drip pan
Stud
Wing nut
Electrode
Ignitor wire
Sideburner burner
Valve
Burner tube
B
D
Cooking grate
21
