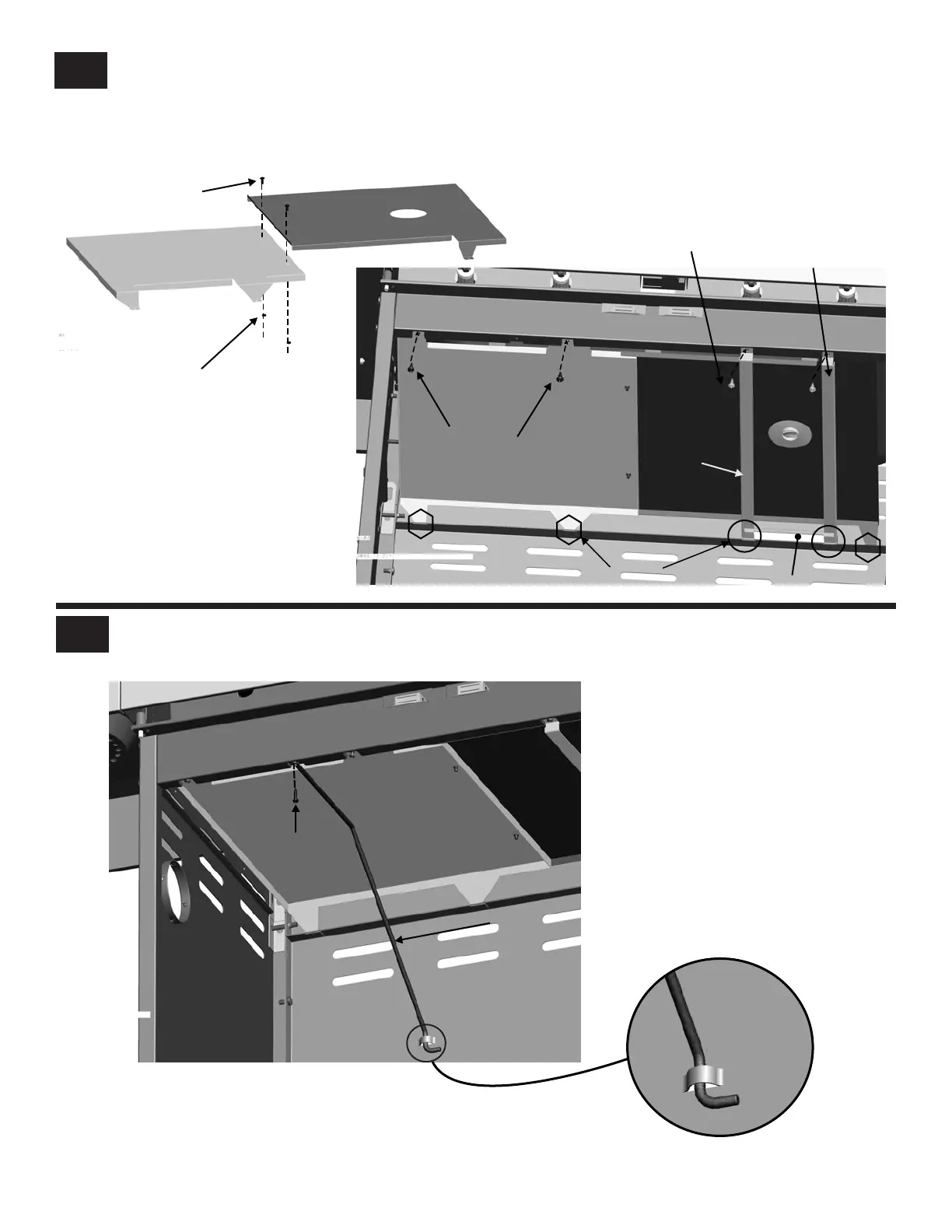

First, attach tank heat shield and shield extension together with two #8-32x3/8” screws and #8-32 hex nuts. Inside of cart,
insert rear shield tabs into two left slots between upper and lower back panels. Attach left and center front shield tabs under
front brace with two #8x3/8” self-tapping screws. Insert left and right grease tray rails into slots beneath grease tray
opening in upper back panel. Attach left rail to front brace, with a #8x3/8” self-tapping screw. Attach right rail and right front
shield extension tab together under front brace with a #8x3/8” self-tapping screw.
Tank heat shield
#8-32x3/8"
screw
#8-32 hex nut
Front
Front
Tank heat shield extension
#8x3/8"
self-tapping screw
#8x3/8"
self-tapping screw
Grease tray
rail (L)
Grease tray rail (R)
Tabs into slots
Grease tray opening
Front brace
Insert end of tank wire (without hole) into back of lower back panel. Attach other end to bottom of front brace with one
#8x5/8” self-tapping screw.
#8x5/8"
self-tapping screw
Tank Wire
Front brace
Lower back panel
