24

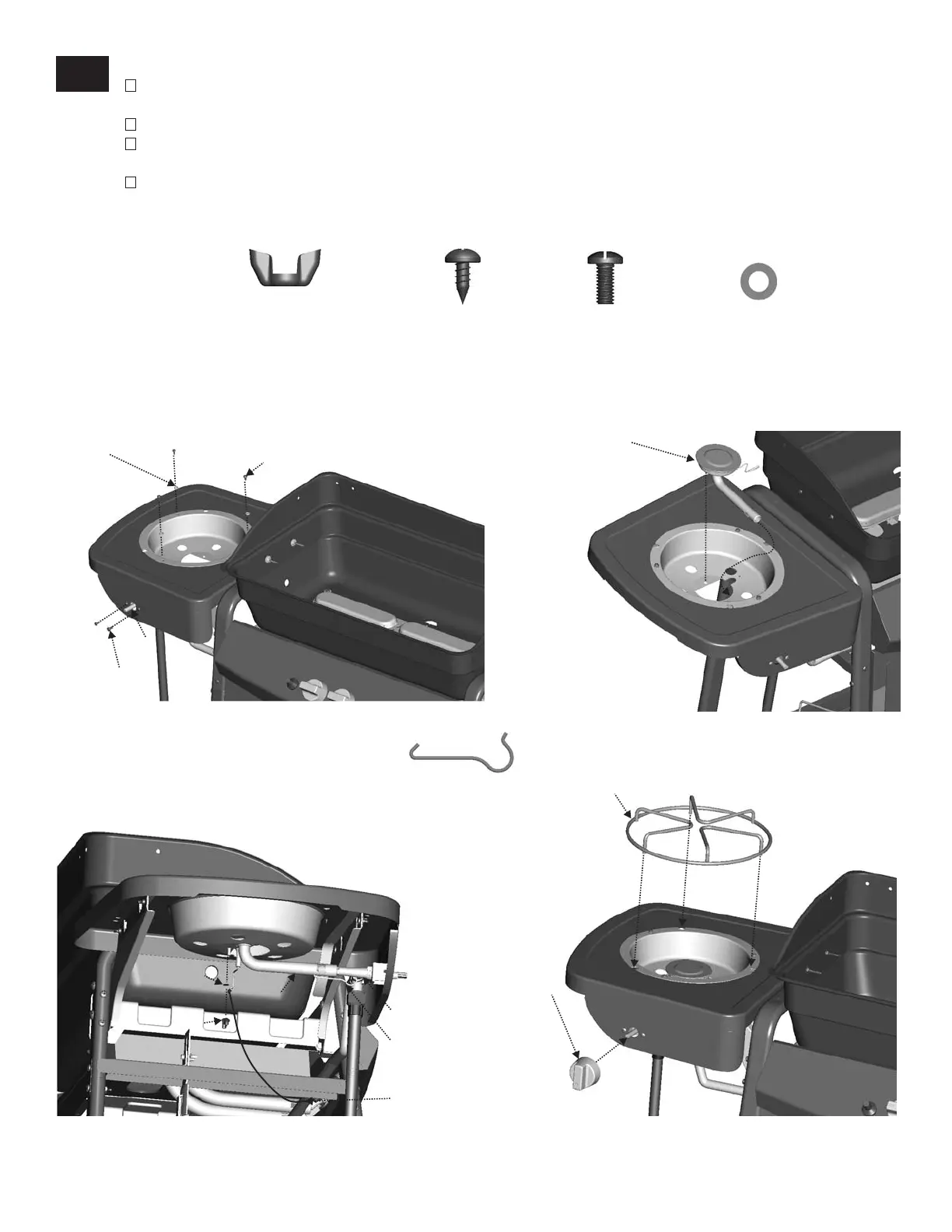

Sideburner
Attach sideburner valve with #8-32x3/8’’ machine screws. Attach sideburner pan with #8-32x3/8’’ sheet metal screws
and 5x9 fiber washer (A).
Place sideburner into shelf (B).
Make sure valve is inside sideburner tube. Attach sideburner with a wing nut. Hook Sideburner clip to sideburner tube
and around manifold. Attach sideburner ignitor wire ( C ) .
Press control knob onto valve stem and sideburner grate onto shelf (D).
13
#8-32X3/8’’
Sheet Metal Screw
Qty.3
#8-32x3/8’’
Machine Screw
Qty.2
5x9 Fiber Washer
Qty.4
#8-32 Wing Nut
Qty.1
#8-32x3/8’’ Sheet Metal Screw
5x9 Fiber Washer
Sideburner Valve
#8-3/8’’ Machine Screw
Sideburner
Sideburner Clip
Qty.1
Sideburner Grate
Control Knob
Sideburner Valve
Sideburner Clip
Sideburner Ignitor Wire
5x9 Fiber Washer
#8-32 Wing Nut
Sideburner
Tube
Correctly assembled burner-to-valve engagement
A
B
C
D
