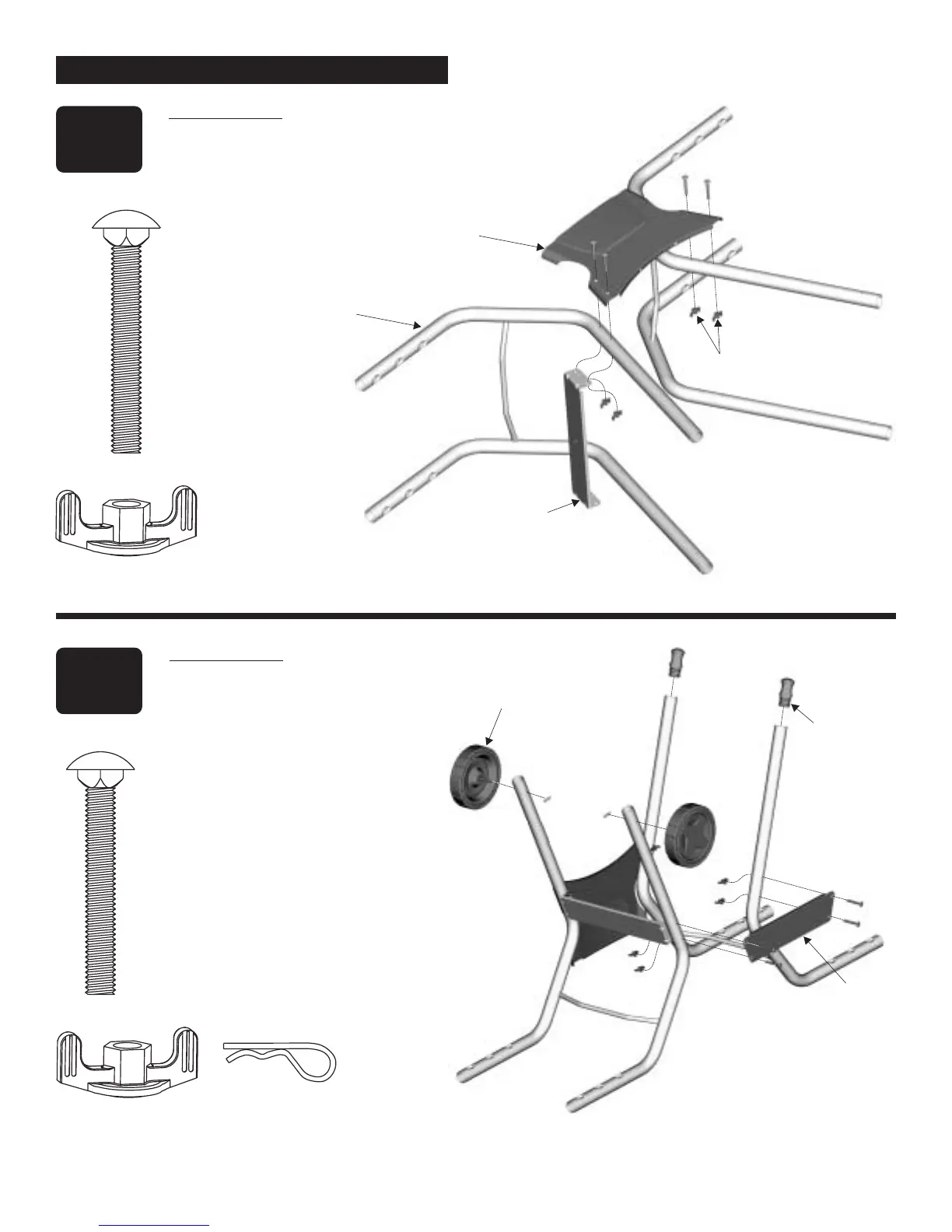

ASSEMBLY – Model No. 463822004
6 • 463822004
1
Qty. 4
Qty. 4
Parts to assemble:
2 Leg Assembly
1 Front Panel
1 Side Support Brace
4 Carriage Bolt, 2”
4 Plastic Tee Knob
A. Lay leg assemblies on their sides.
B. Place front panel on legs.
C. Braces attach to inside of legs.
D. Secure with carriage bolts and tee knobs.
Leave tee knobs loose on right side.NOTE:
Leg Assembly
Side Support Brace
(Fits inside legs.)
Front Panel
NOTE: To prevent scratching, lay grill on packing material to assemble.
Leave these loose.
2
Qty. 4
Qty. 4
Parts to assemble:
1 Back Support Brace
4 Carriage Bolt, 2”
4 Plastic Tee Knob
2 Wheel Assembly
2 Hitch Pin
2 Leg Extender
A. Turn assembly upside-down.
B. Secure back brace and side brace to left leg
and back brace to right leg with carriage bolts
and tee knobs. Leave tee knobs loose
on right side.
C
NOTE:
. Insert wheel assemblies into legs.
D. Push leg extenders into right legs.
Secure with
hitch pin in axle bolt hole closest to leg.
Back
Support
Brace
Qty. 2
Wheel Assembly
Leg Extender
