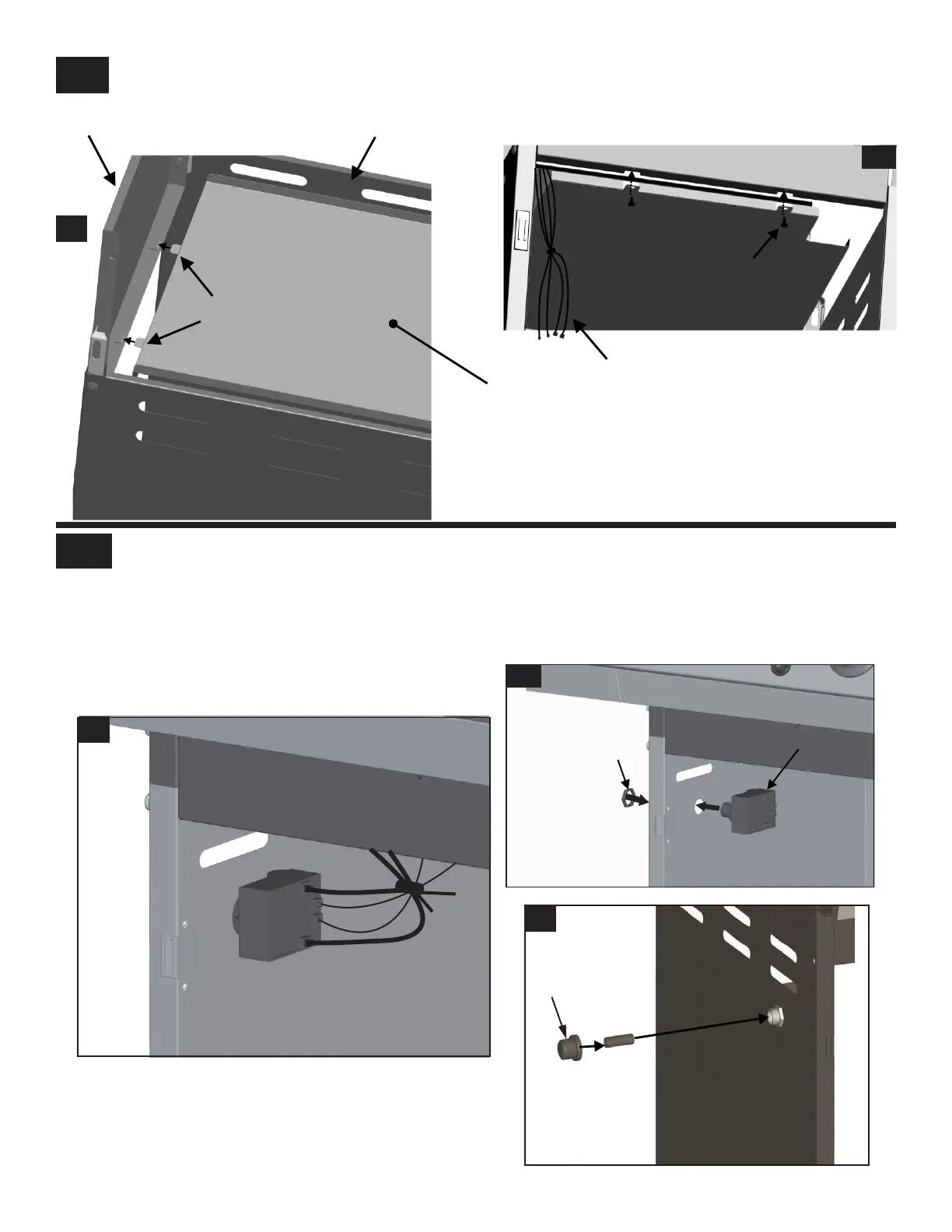

Front brace
Tank heat shield
Left side panel
Right side panel
Upper back panel
Insert tabs into slots
#8x3/8" self-tapping
screw
Note: Some parts omitted for
clarity of illustration
Leave wires outside when attaching
tank heat shield to front brace.
10
9
Inside of cart, insert rear tabs (w/o holes) of tank heat shield into slots on the bottom of upper back panel, shown A.
Attach front tabs (w/ holes) of tank heat shield under front brace using two #8x3/8" self-tapping screws, shown B.
ignition module
Electronic
Left side panel
Nut
NOTE: Switch terminals are larger than electrode terminals
and should only be installed in location shown as (a), (b).
1
(a)
(b)
2
A
B
+
-
Cap
AA Battery
C
Connect each of the wires from main burner electrodes into the back of Electronic Ignition Module. Total (2)
connections. Connect the two wires [(a) and (b)] from switch wiring harness into the back of the Electronic
Ignition Module. Total (2)connections, shown A. Unscrew the cap and nut from electronic ignition module. Attach
electronic ignition module to the cart left side panel with the nut, shown B. Insert AA battery into electronic
ignition module, negative (—) end first. Replace the cap, shown C.
18
A
B
