Bottom shelf
Non-lock caster
Locking caster
Rear
Front
Left side panel
Right side panel
Magnet
Front
Caster pin
A

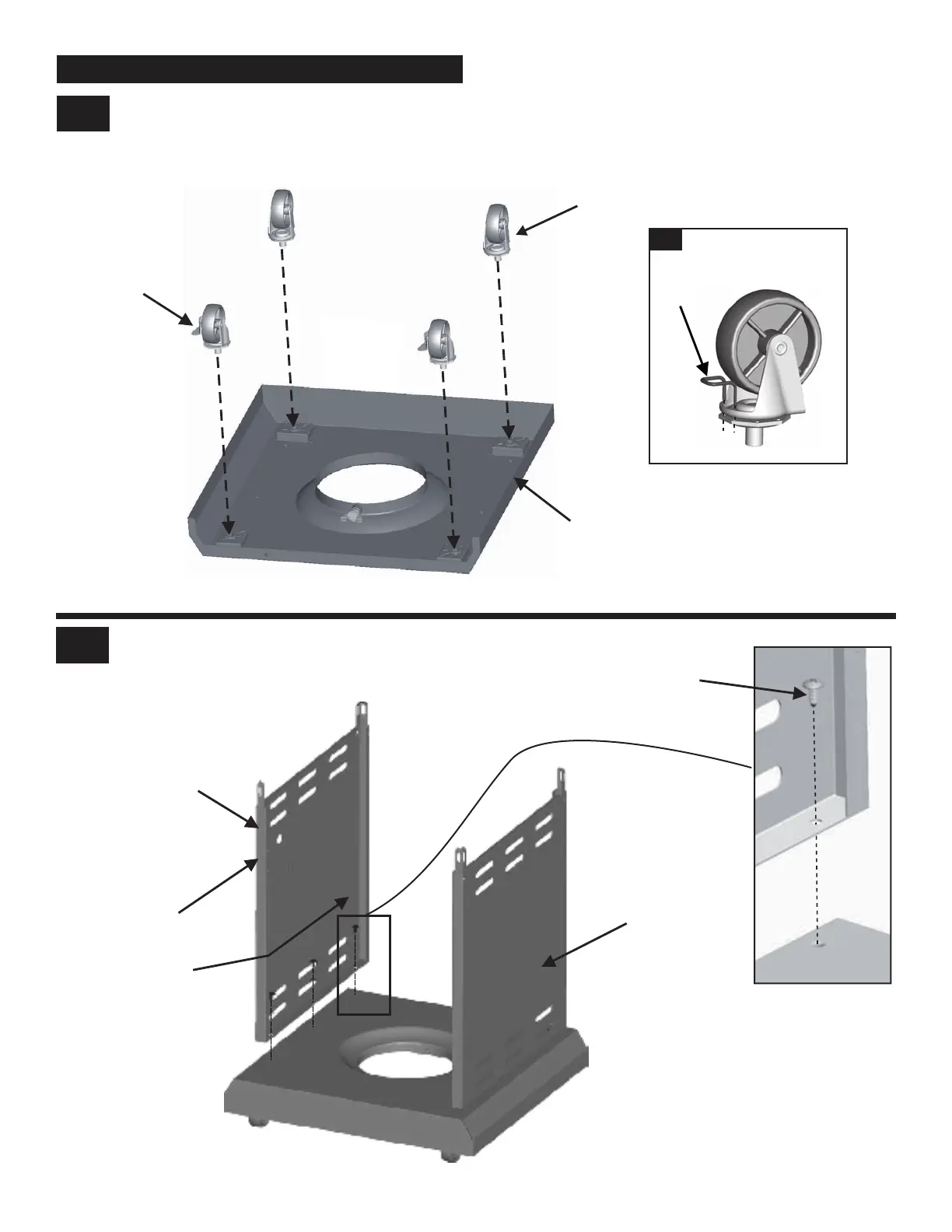

Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster
clockwise into the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters. Make
sure the two locking casters are secured at the rear and the non-locking casters are secured at the front. After all 4 casters
are secured remove the Caster Pin and save for future maintenance.
Attach side panels to bottom shelf using three 1/4-20x1/2” screws per panel.
IMPORTANT: Panel with magnet must be on Left side of bottom shelf.
Make sure side
panels are pushed as
far to the rear of
bottom shelf as
possible before fully
tightening screws.
ASSEMBLY
1/4-20x1/2"
screw
13
To Next Page
