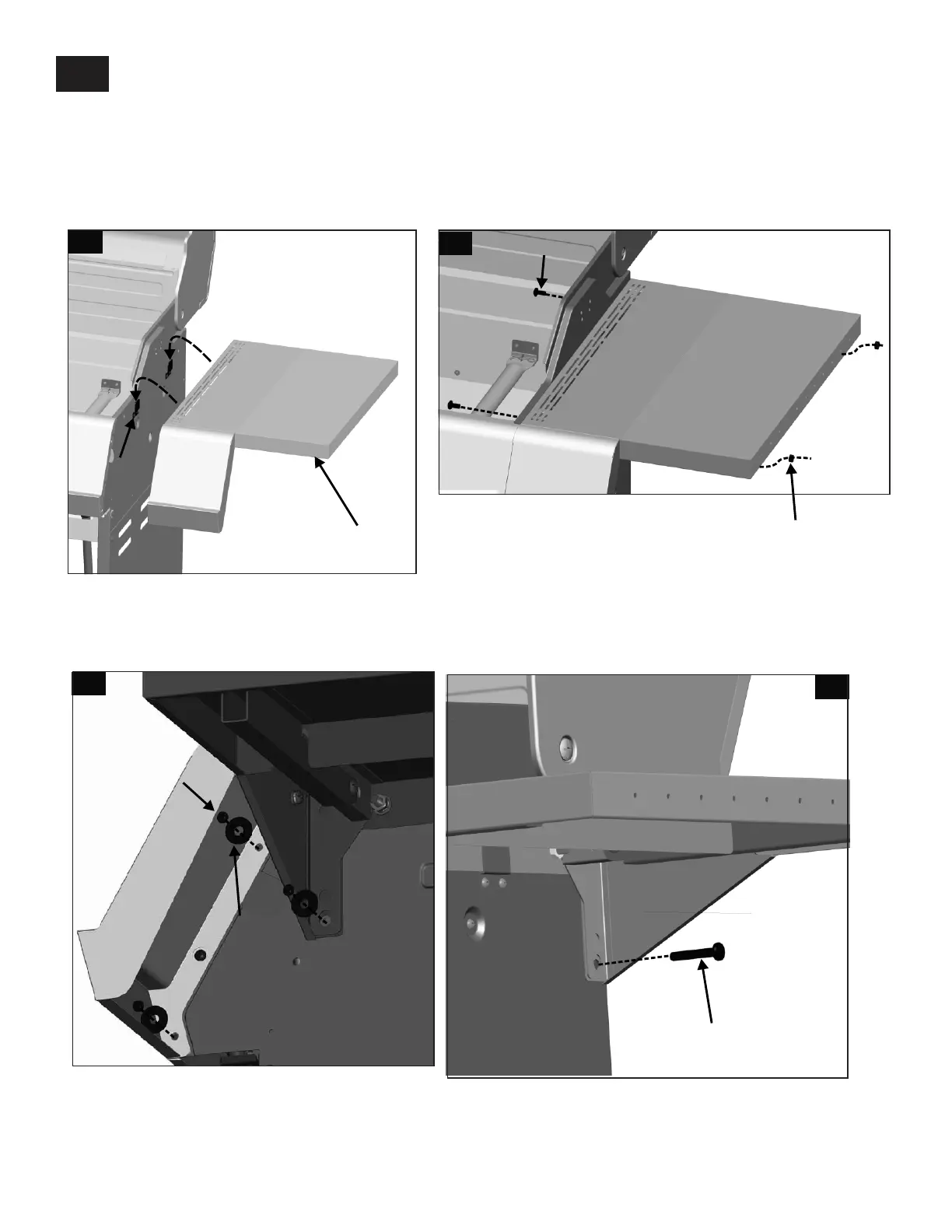

Insert flange on right side shelf into side shelf brackets on side of firebox, shown A.
Attach right side shelf using two 1/4-20x1/2"screws and 1/4" nuts, shown B.
Attach front of shelf using three #8x3/8" self-tapping screws and large flat washers, shown C.
Note: For ease of assembly, use a long-blade screw driver for this step.
Attach rear of shelf using one 1/4-20x1 ½"screw, shown D.
Only right side shelf shown for assembly, repeat above steps to install left side shelf.
Large flat
washer
#8x3/8" self-tapping
screw
Bracket
Right side shelf
1/4" nut
1/4-20x1 ½" screw
1/4-20x1/2" screw
A
B
C
D
