page 14

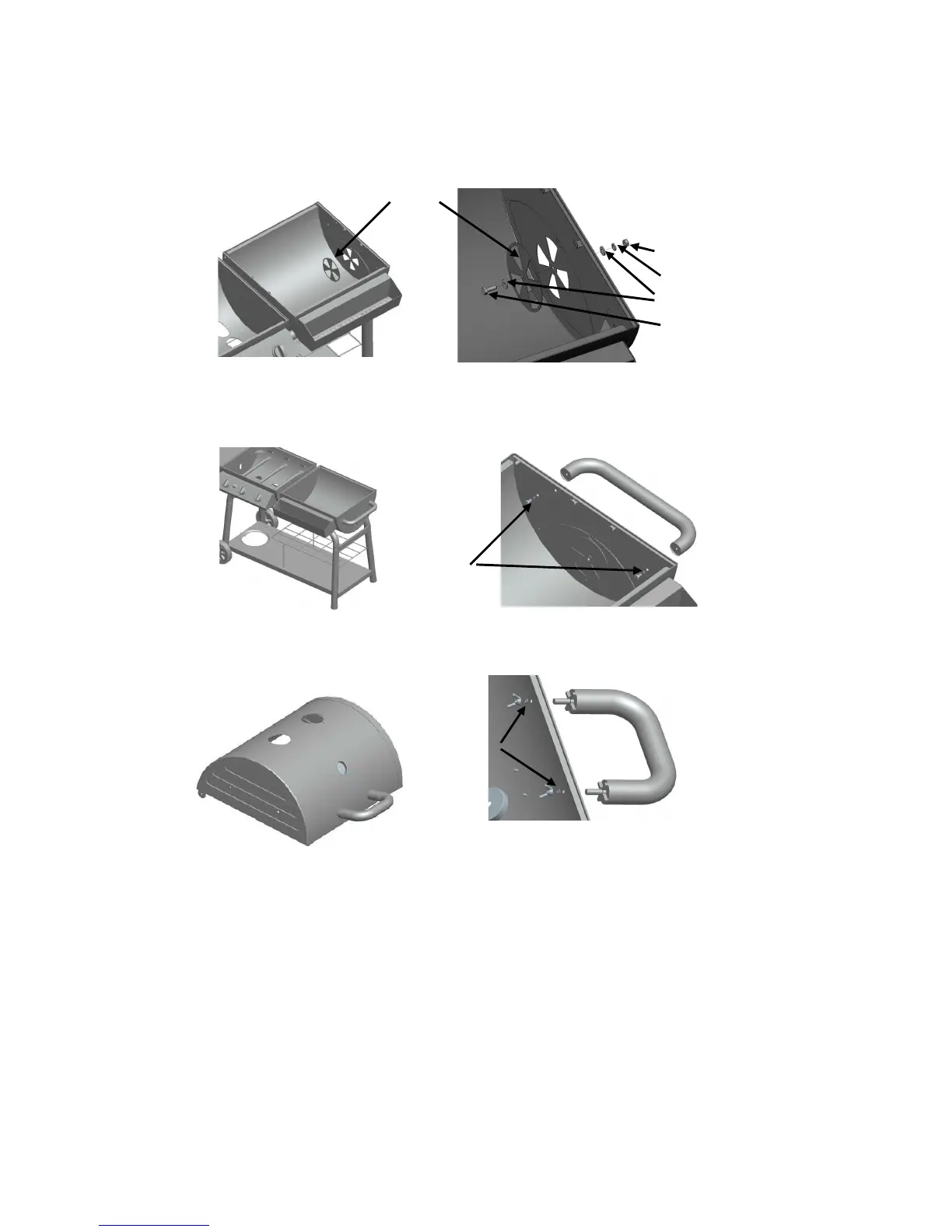

Step 12
Install the SIDE DAMPER to the CHARCOAL GRILL BODY using one (1) ½” BOLT. The
BOLT should first go through a FLAT WASHER then the DAMPER then the GRILL BODY
then another FLAT WAHSER then a LOCK WASHER and then secured with a HEX NUT.
See below.
Step 13
Attach the SIDE HANDLE to the right side of the CHARCOAL GRILL BODY using two (2)
½” BOLTS and two (2) LOCK WASHERS as shown. From inside the GRILL BODY insert
each BOLT through a LOCK WASHER and then through the GRILL BODY and then screw
into the SIDE HANDLE. See below.
Step 14
Attach the HOOD HANDLES to the GRILL HOODS with four (4) LOCK WASHERS and four
(4) WING NUTS as shown below.
Lock Washer
Lock Washer
Nut
Lock Washer
Flat Washer
Bolt
To Next Page
