page 15

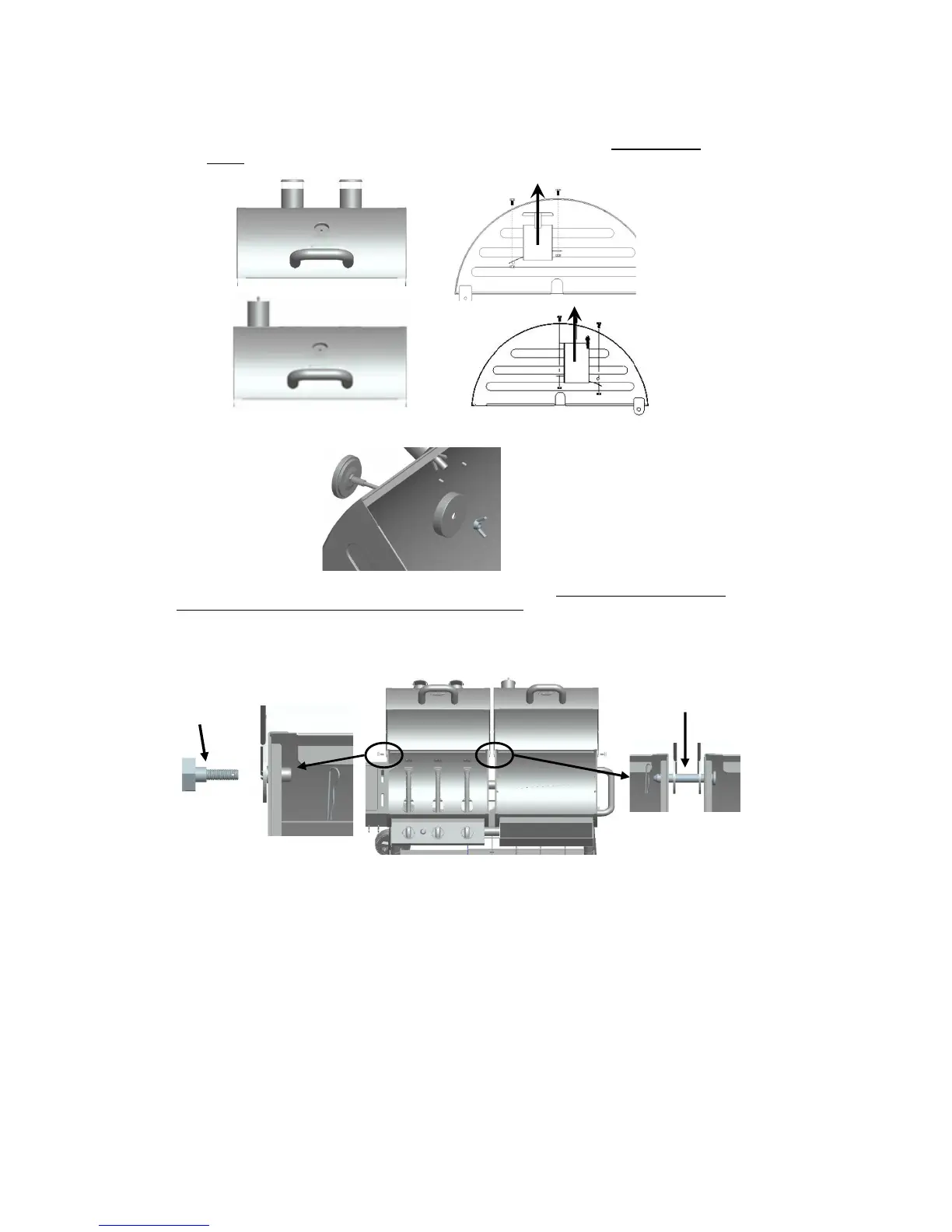

Step 15
Install the GAS CHIMNEY to the GAS GRILL HOOD and the CHARCOAL CHIMNEY to
the CHARCOAL GRILL HOOD. Insert the CHIMNEYS through each hole from inside the
HOOD and secure with two (2) HEX NUTS and two (2) ½” BOLTS for each CHIMNEY,
see below.
Step 16
Insert the THERMOMETERS into the GRILL HOODS and secure with two (2) WING NUTS as
shown.
Step 17
Attach HOODS to the GRILL BODIES using HINGE PINS as shown. Have your helper stand behind
the grill to hold the HOODS in place and keep them from falling. First place the GAS HOOD onto the
GRILL BODY in the closed position then screw the left HINGE PIN into place. Then place the
Charcoal HOOD in place and screw in the right HINGE PIN. Carefully and slightly open the Charcoal
HOOD and insert the center HINGE PIN from inside the charcoal grill through the HOOD then through
the Gas HOOD and Body as shown. Then insert COTTER PINS through the holes in the three HINGE
PINS.
Hinge Pin
