page 17

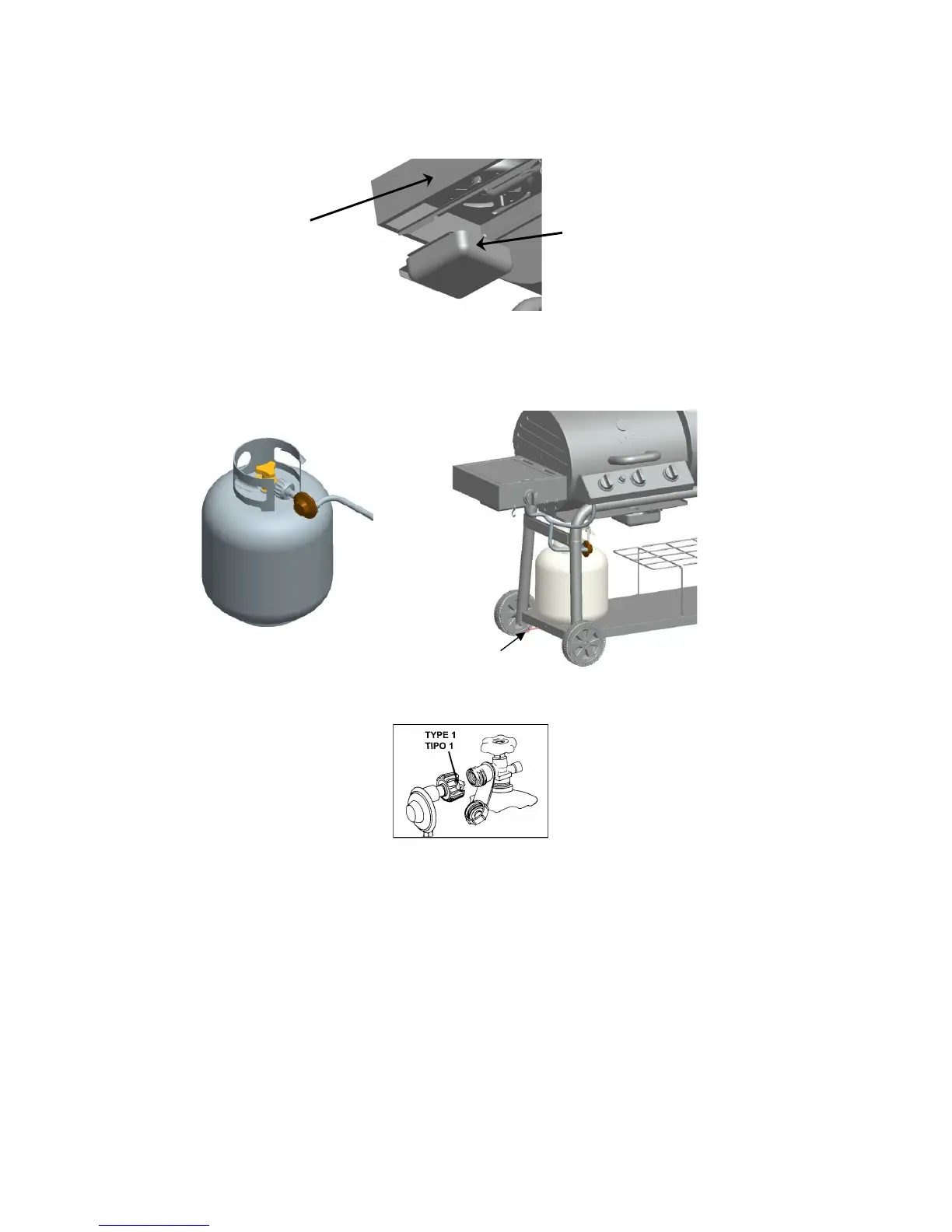

Step 21
Slide the GREASE TRAY into place on the guide rails under the Side Burner as shown below.
Insure that the GREASE TRAY is centered under the burner.
Step 22
1. Place a standard 20 lb. Type 1 LP gas cylinder (see below, not included) into the cart
assembly and connect the cylinder with the gas hose/regulator as shown. (See page 19 for
further instructions).
2. Turn the Screw on the left side of the base panel clockwise to secure the standard 20 lb. LP
gas cylinder.
Grease Tray
Side
Burner
Housing
Screw
NOTE: Hose must
go under and to the
outside of the leg
brace.
