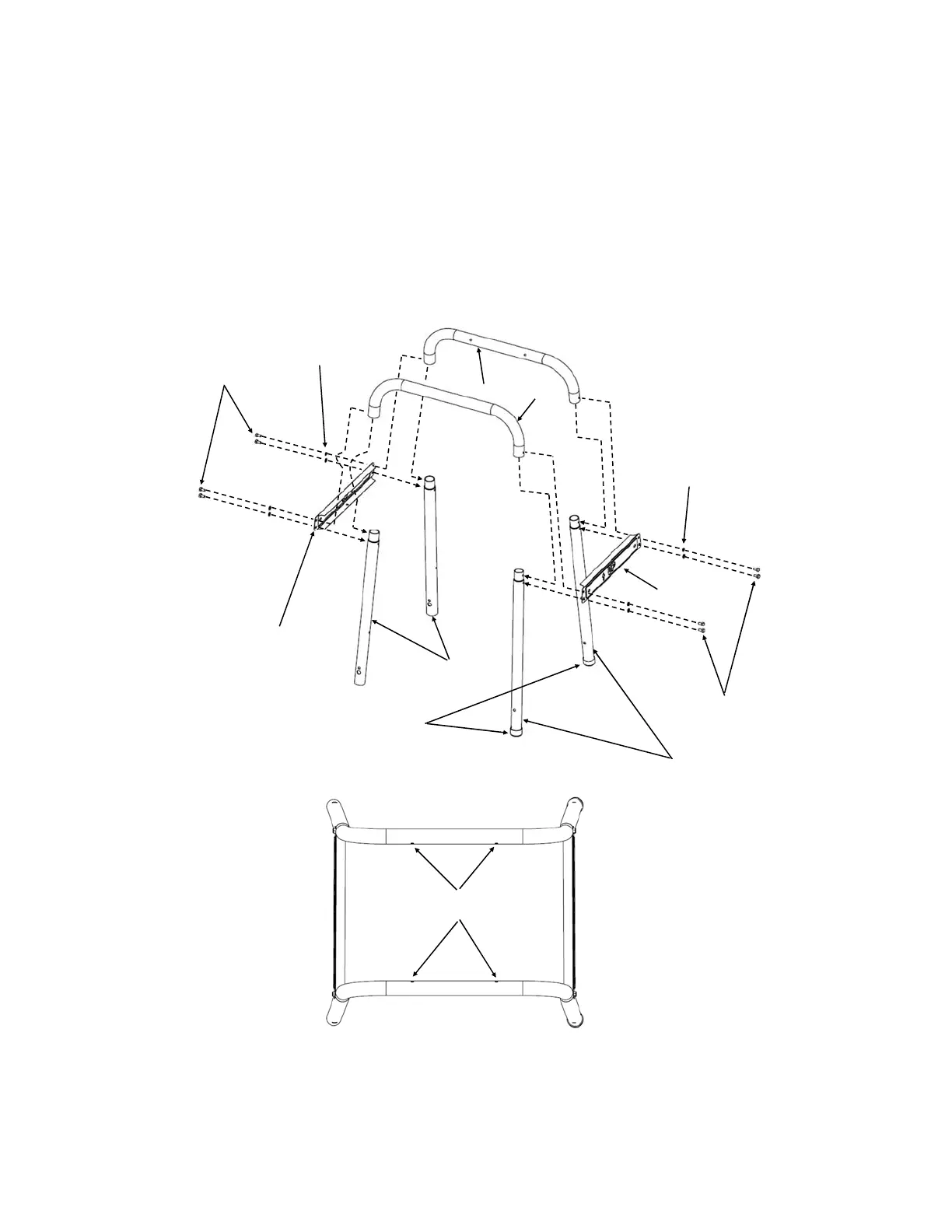

Step 1: Insert the Long Legs and Short Legs into the opening ends of the Leg Cross
Bars. Then place the Leg Braces over the Legs and Leg Cross Bars and secure them
with Lock Washers and two 1/2” Hex Bolts per leg. (NOTE: The orientation of the
Leg Cross Bar is very important for later steps. The two holes on each Leg Cross Bar
must be facing toward the center of the assembly.)
Assembly Instructions
Holes on Leg Cross Bars
TOP VIEW AFTER
ASSEMBLY
Long Legs
Short Legs
Leg Caps
Leg Cross Bars
Lock Washer
Leg Brace
Leg Brace
Hex Bolts
Hex Bolts
Lock Washer
