OME3072 E.2 ™ & © Char-Griller / A&J Manufacturing 5

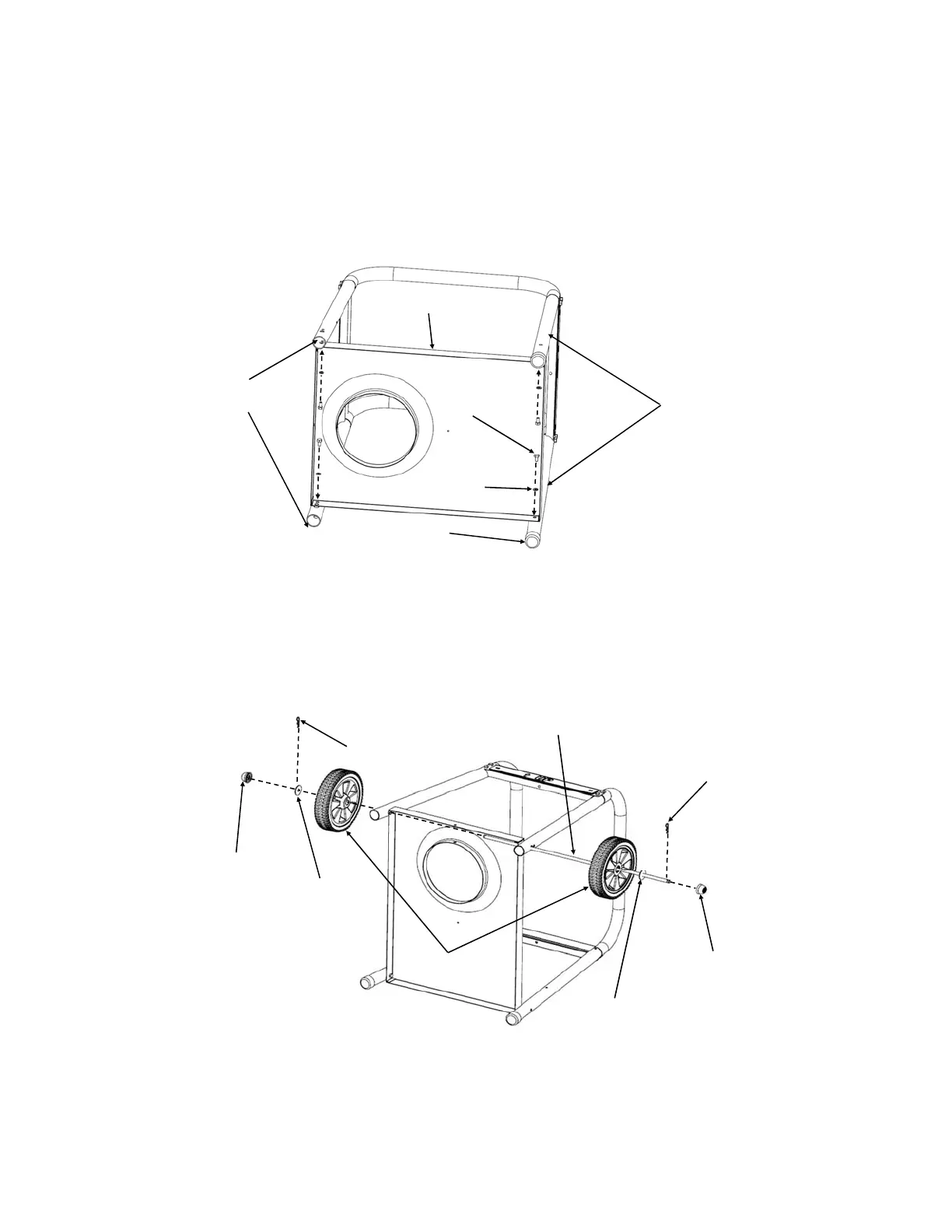

Step 2
Lay the cart assembly from previous step on one side then place the Bottom Shelf
between the four legs then secure it with four Lock Washers and four 1/2” Hex
Bolts. The Bottom Shelf with the Tank Hole should be on the Short Legs side oppo-
site the Long Legs. NOTE: Long Legs have Leg Caps on them.
Long Legs
Leg Cap
Short Legs
Bottom Shelf
Hex Bolt
Step 3
Lay the cart assembly down with the Long Legs on the floor then install the Wheels
and Wheel Axle. On one end of the Axle insert the Large Cotter Pin into the hole on
the Axle and snap in the Hub Cap. Slide one Flat Washer and one Wheel onto the
Axle then slide the Axle through the holes on the Short Legs and Bottom Shelf. Com-
plete the assembly by sliding the other Wheel and Flat Washer onto Axle then insert
the Large Cotter Pin and snap on the Hub Cap.
Lock Washer
Axle
Wheels
Cotter Pin
Flat Washer
Hub Cap
Flat Washer
Large Cotter Pin
Hub Cap
To Next Page
