Step 4

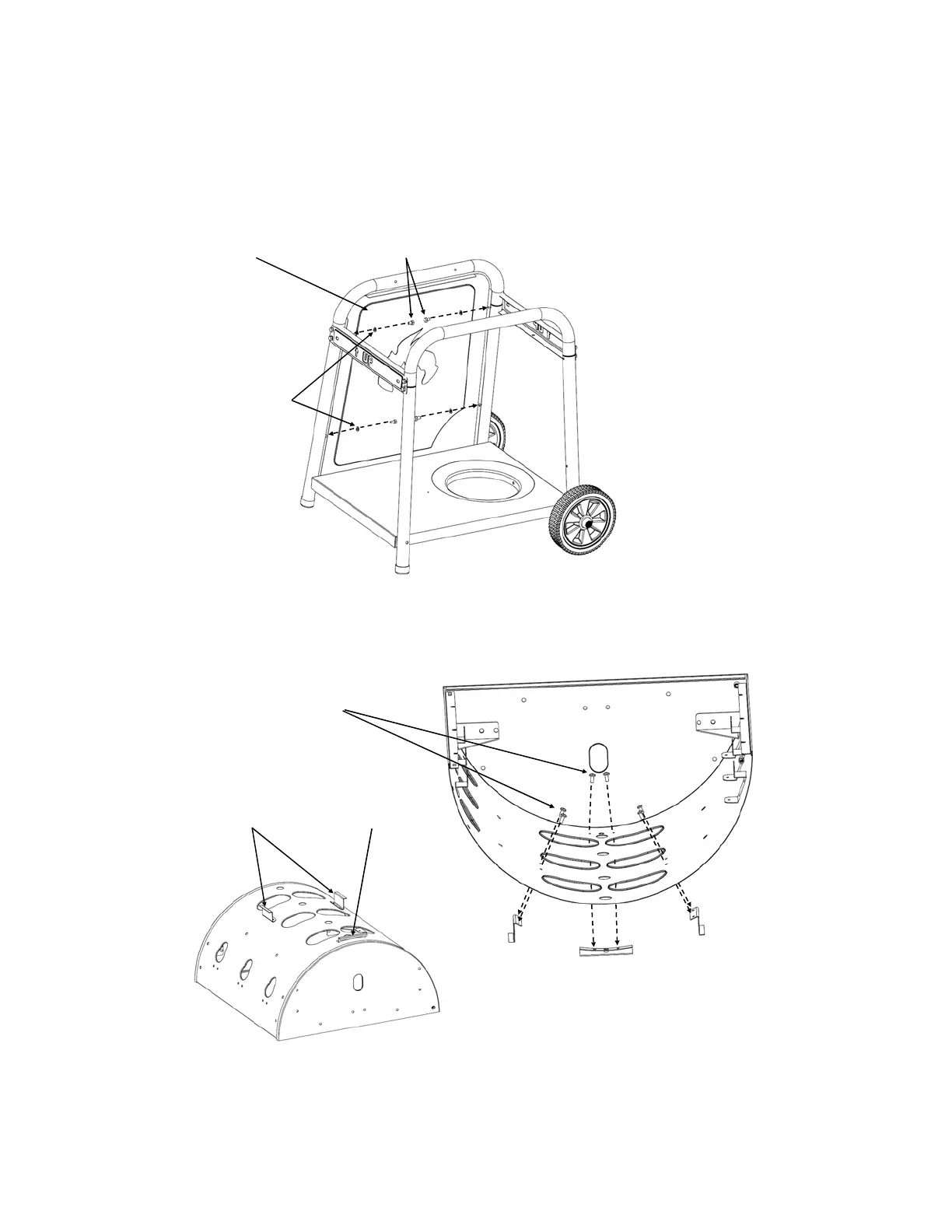

Stand the Cart up right. Place Front Panel between Short and Long Legs and secure
it with four Lock Washers and four 1/2” Hex Bolts.
Front Panel
Step 5
Attach two Slider Brackets and one Stopper Bracket onto the bottom of the Grill
Body with six #10-24 x 0.40” Bolts. (NOTE: Oriented The Slider and Stopper Brack-
ets as shown below. This is critical for installing the Catch Pan on later step). The
Bolts should go in from inside the Grill Body.
Hex Bolts
Lock Washers
Slider Brackets
Stopper Bracket
Pan Head Bolts
To Next Page
