OME3072 E.2 ™ & © Char-Griller / A&J Manufacturing 7

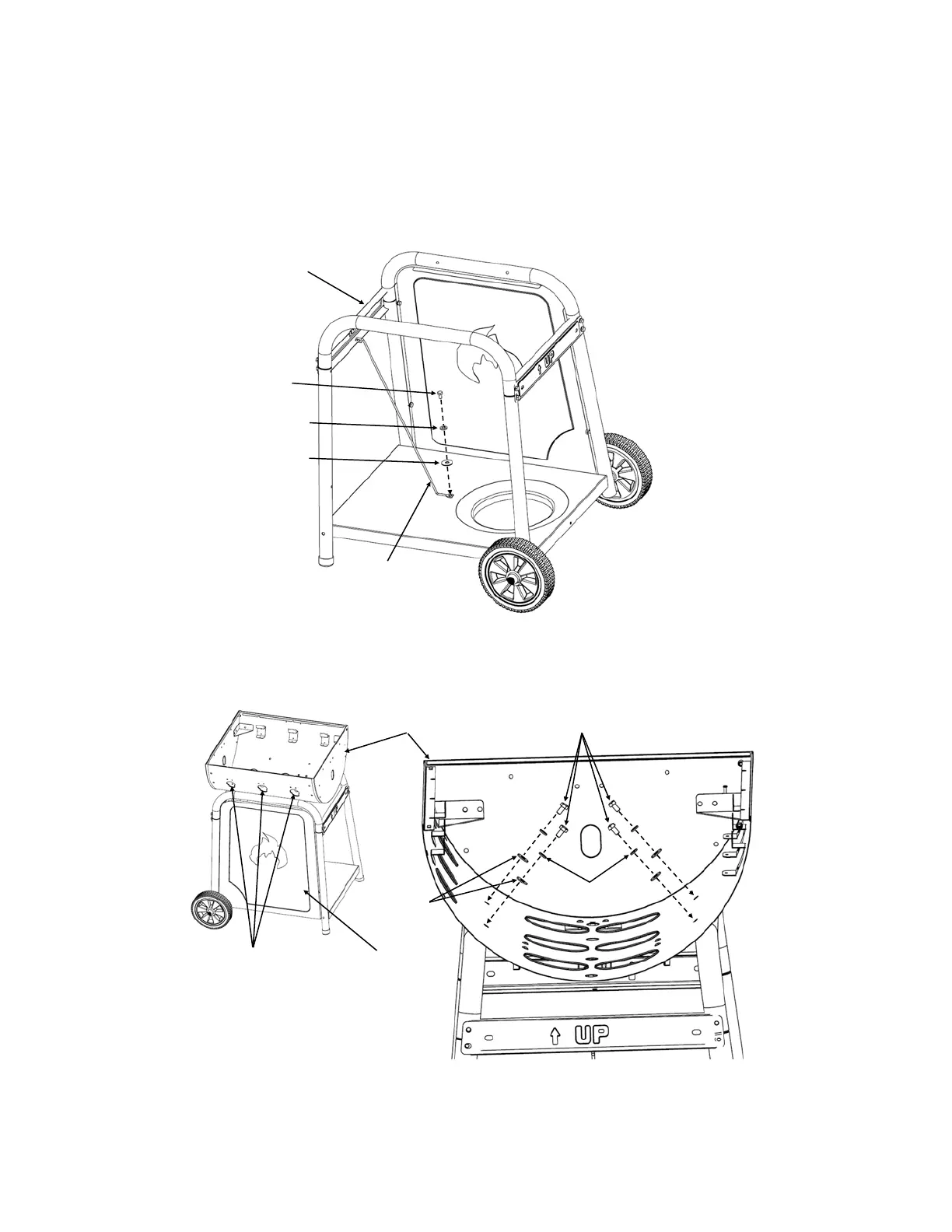

Step 6
Attach the Cylinder Block Bar onto the assembly Cart. First insert the hook on the
Cylinder Block Bar into the hole at the center of the Leg Brace then secure the other
end with a Flat Washer, Lock Washer, and 1/2” Hex Bolt.
Step 7
Attach the Grill Body to the previous assembly cart using four Lock Washers, four
Flat Washers, and four 1/2” Hex Bolts from the inside of the Grill Body. Oriented the
Grill body so that the three opening holes on the Grill Body for the burner tubes are
facing in the same side as the Front Panel.
Cylinder
Block Bar
Leg Brace
Hex Bolt
Lock Washer
Flat Washer
Holes for Burners
Grill Body
Front Panel
Lock Washers
Hex Bolts
Flat
Washers
