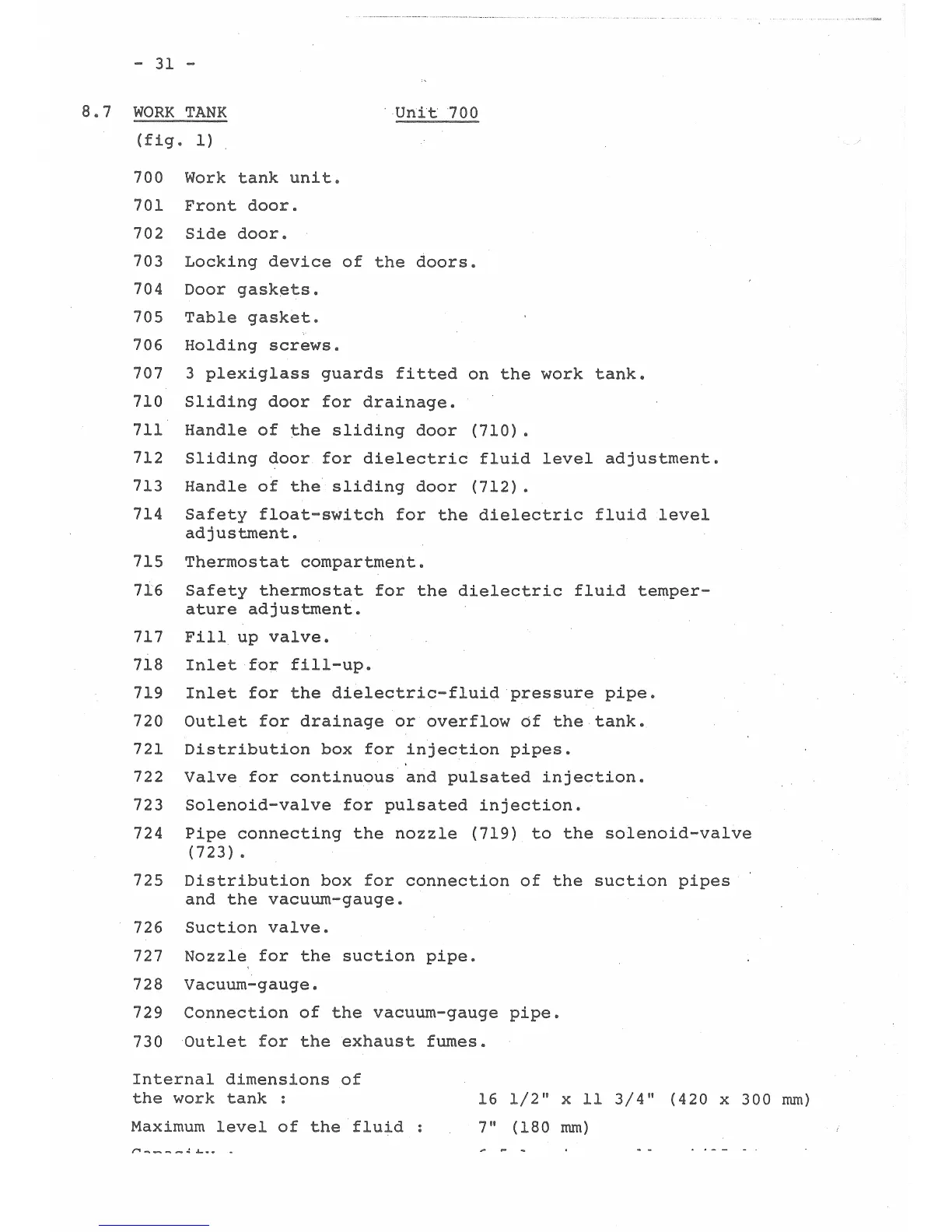

8.7 WORK TANK
(fig. 1)
700 tank unit.
701 Front door.
702 Side door.
Unit 700
703
Locking device of the doors.
704 Door gaskets.
705 Tab gasket.
706 Holding screws.
707 3 plexiglass guards fitted on the work tank.
710 Sliding door for drainage.
711 Handle of the sliding door (710) .
712 Sliding door for dielectric fluid level adjustment.
713 Handle of the sliding door (712) .
714 Safety float-switch for the dielectric fluid level
adjustment.
715 Thermostat compartment.
716 Safety thermostat for the dielectric fluid temper-
ature adjustment.
717 Fill up valve.
718 Inlet for fill-up.
719 Inlet for the dielectric-fluid pressure pipe.
720 Outlet for drainage or overflow of the tank.
721 Distribution box for injection pipes.
722 Valve for continuous and pulsated injection.
723 Solenoid-valve for pulsated injection.
724 Pipe connecting the nozzle (719) to the solenoid-valve
(723).
725 Distribution box for connection of the suction pipes
and the vacuum-gauge.
726 Suction valve.
727 Nozzle for the suction pipe.
728 Vacuum-gauge.
729 Connection of the vacuum-gauge pipe.
730 Outlet for the exhaust fumes.
Internal dimensions of
the work tank
Maximum level of the fluid
16 2" X 11 3/4" (420 X 300 mm)
7
11
(180 mm)
