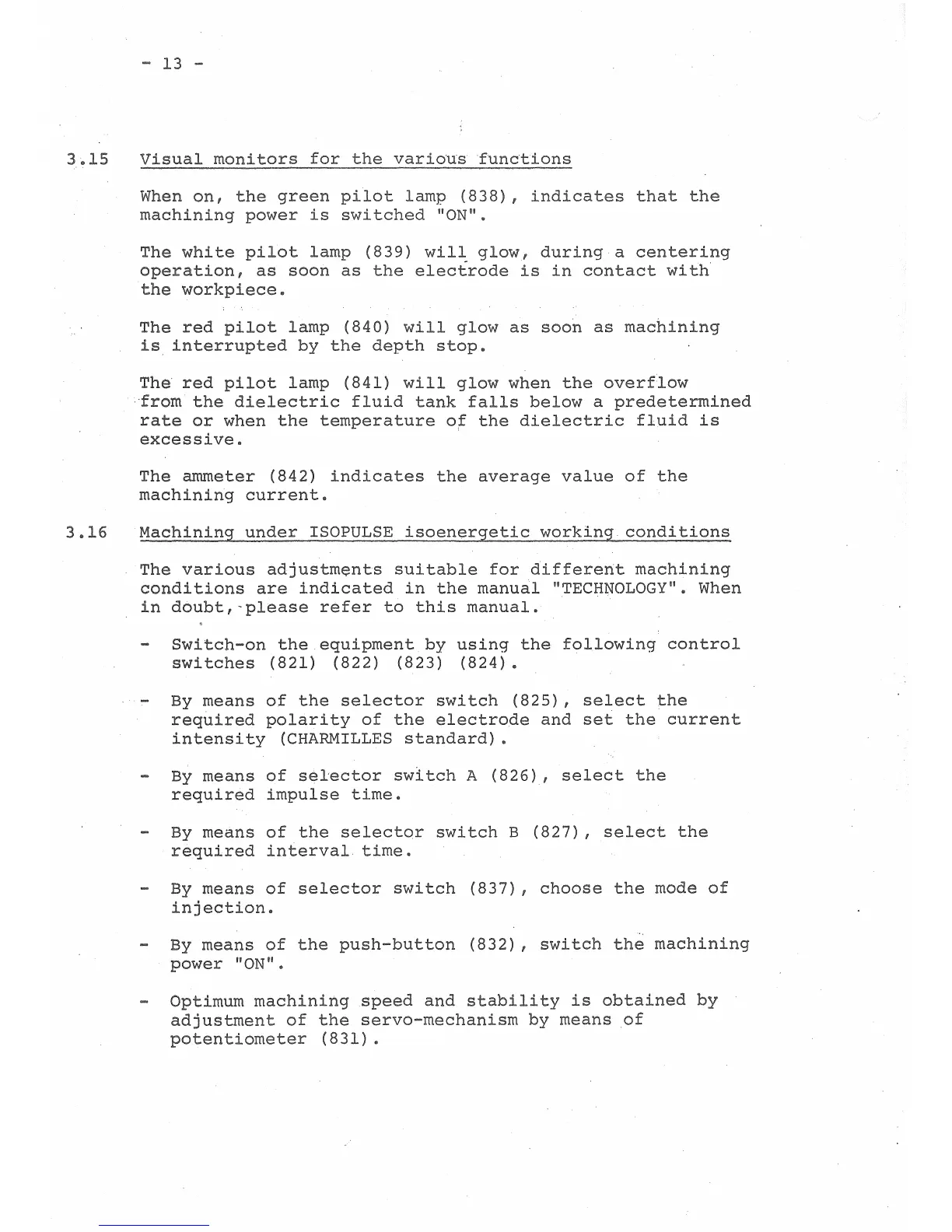

3.15

3.16

-

13

-

Visual

monitors

for

the

various

functions

When

on,

the

green

pilot

lamp

(838),

indicates

that

the

machining

power

is

switched

"ON".

The

white

pilot

lamp

(839)

will

glow,

during

a

centering

operation,

as

soon

as

the

electrode

is

in

contact

with

the

workpiece.

The

red

pilot

lamp

(840)

will

glow

as

soon

as

machining

is

interrupted

the

depth

stop.

The

red

pilot

lamp

(841)

will

glow

when

the

overflow

from

the

dielectric

fluid

tank

falls

be

a

predetermined

rate

or

when

the

temperature

of

the

dielectric

fluid

is

excessive.

The

ammeter

(842)

indicates

the

average

value

of

the

machining

current.

Machining

under

ISOPULSE

isoenergetic

working.

conditions

The

various

adjustments

suitable

for

different

machining

conditions

are

indicated

in

the

manual

"TECHNOLOGY~~.

When

in

doubt,-please

refer

to

this

manual.

Switch-on

the

equipment

by

using

the

following

control

switches

(821) (822)

(823)

(824).

By

means

of

the

selector

switch

(825),

select

the

required

polarity

of

the

electrode

and

set

the

current

intensity

(CHARMILLES

standard).

By

means

of

selector

switch

A

(826),

select

the

required

impulse

time.

means

of

the

selector

switch

B

(827),

select

the

required

interval

time.

By

means

of

selector

switch

(837),

choose

the

mode

of

injection.

By

means

of

the

push-button

(832),

switch

the

machining

power

"ON".

Optimum

machining

speed

and

stability

is

obtained

adjustment

of

the

servo-mechanism

by

means

potentiometer

(831).
