3

-

2

-

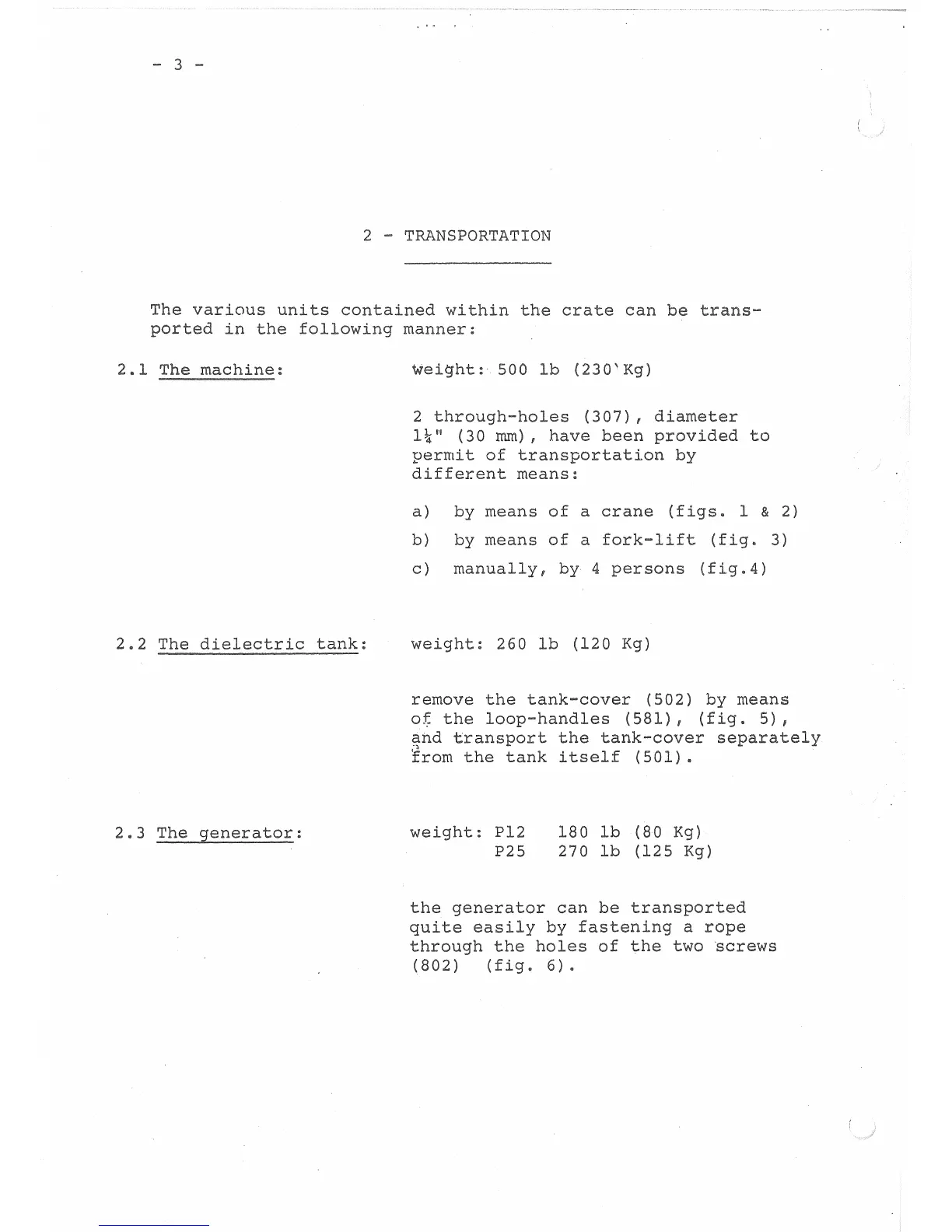

TRANSPORTATION

The

various

units

contained

within

the

crate

can

be

trans-

ported

in

the

following

manner:

2.1

The

machine:

2.2

The

dielectric

tank:

2.3

The

generator:

wei~ht:

soo

lb

(230'Kg)

2

through-holes

(307),

diameter

1~"

(30

mrn),

have

been

provided

to

permit

of

transportation

by

different

means:

a)

by

means

of

a

crane

(figs.

1 & 2)

b)

by

means

of

a

fork-lift

(fig.

3)

c)

manually,

by

4

persons

(fig.4)

weight:

260

1b

(120

Kg)

remove

the

tank-cover

(502)

by

means

o~

the

loop-handles

(581),

(fig.

5),

and

transport

the

tank-cover

separately

Irom

the

tank

itself

(501).

weight:

Pl2

P25

180

lb

(80

Kg)

270

lb

(125

Kg)

the

generator

can

be

transported

quite

easily

by

fastening

a

rope

through

the

holes

of

the

two

screws

(802)

(fig.

6)'
