- 1 -

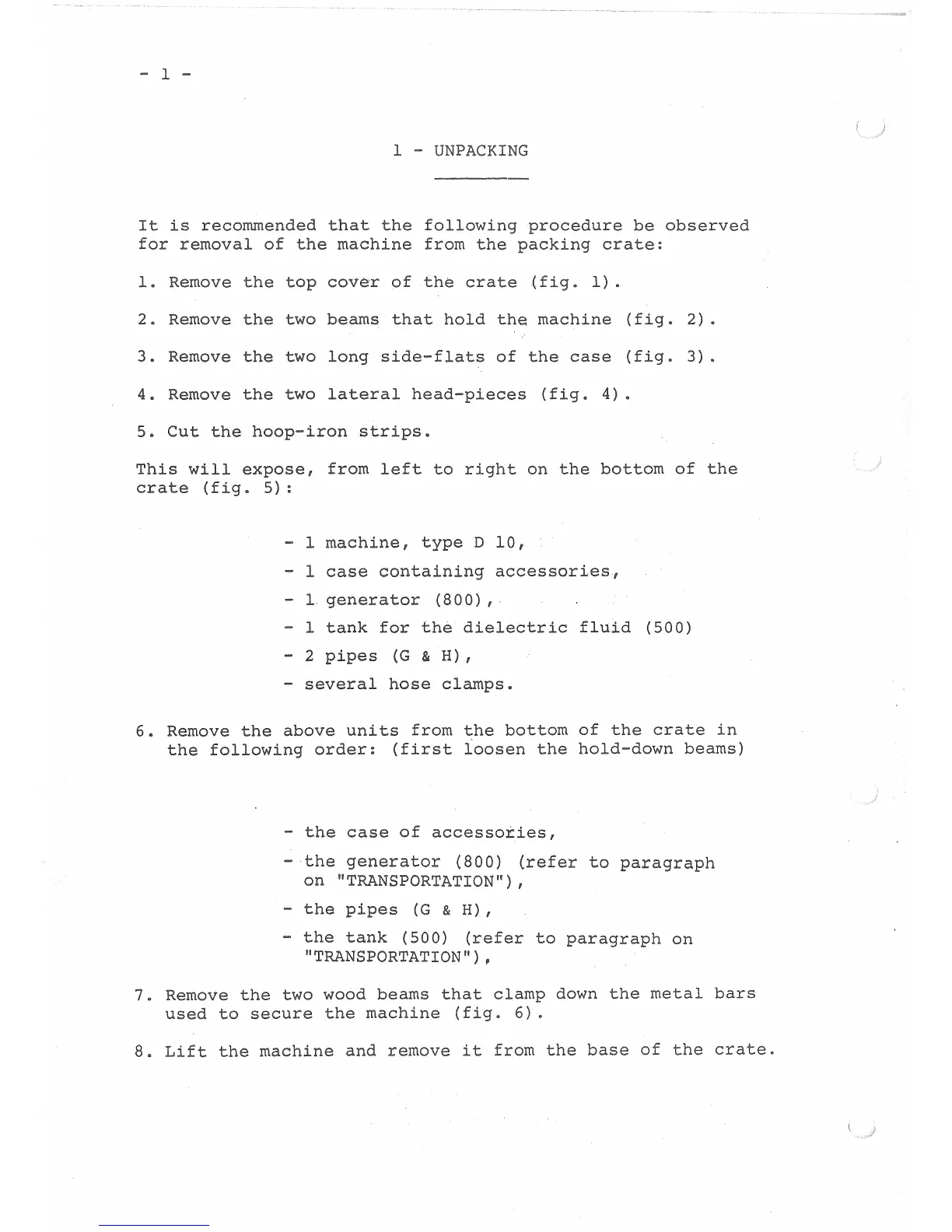

l -- UNPACKING
It is recommended
that
the
following
procedure observed
for removal
of the machine
from the packing
crate:
l.
Remove the top cover of the crate (fig.
1) .
2 • Remove
the
two beams that hold the machine
(fig. 2) •
3. Remove
the
two long side-flats of
the
case
(fig. 3) •
4 • Remove the
two lateral head-pieces (fig.
4) •
5. Cut the hoop-iron strips.
This will expose, from left to right on the bottom of the
crate (fig. 5):
- 1 machine, type D 10,
- 1 case containing accessories,
- l generator (800),.
- 1 tank for the dielectric fluid (500)
2 pipes (G & H) ,
- several hose clamps.
6. Remove the above units from the bottom of crate in
the following order: (first loosen the hold-down beams)
the case of accesso~ies,
- the generator (800) (refer to paragraph
on uTRANSPORTATION"),
-the pipes (G & H),
- the tank (500) (refer to paragraph on
''TRANSPORTATION"),
7. Remove the two wood beams that clamp down the metal bars
used to secure machine (fig. 6).
8. Lift the machine and remove it from the base of the crate.
