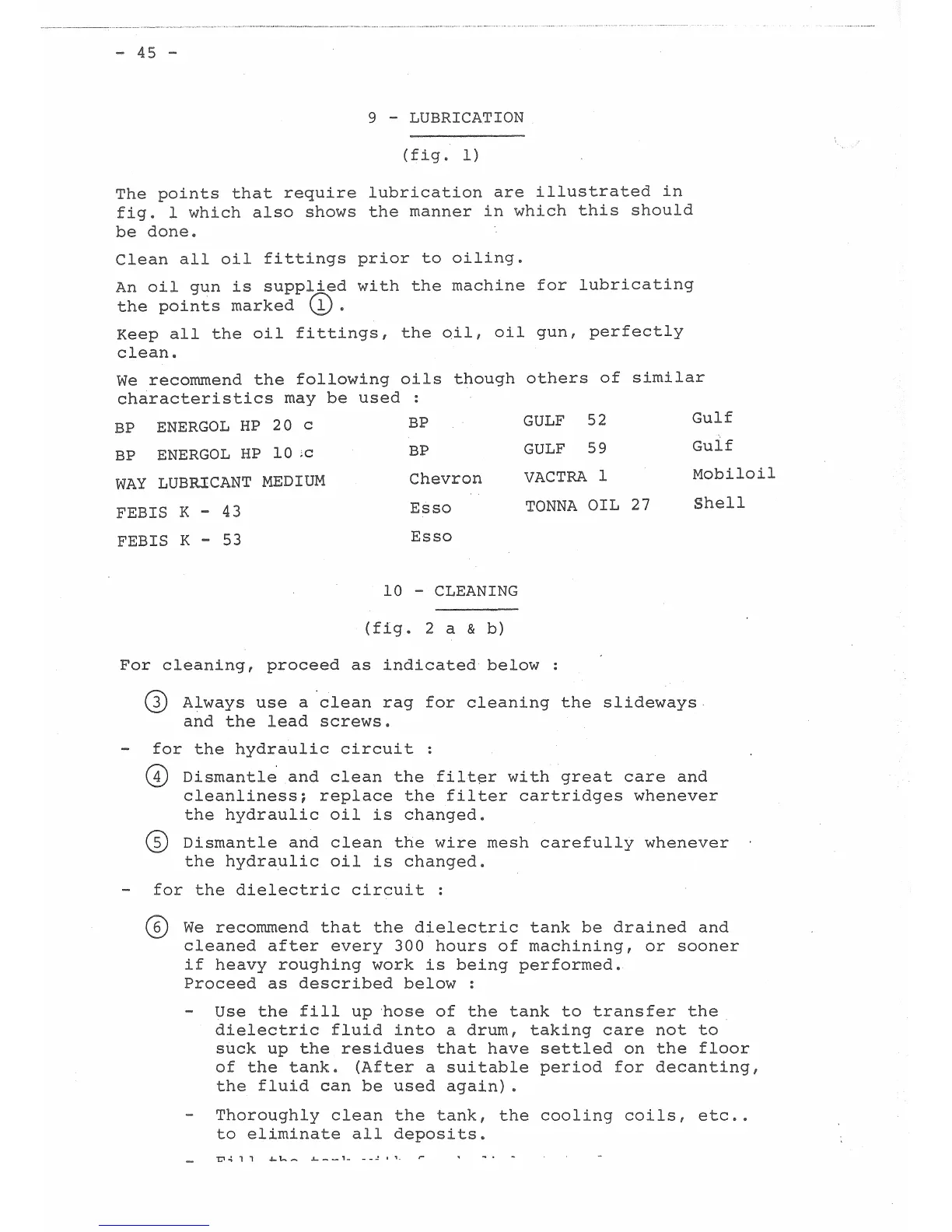

9 - LUBRICATION
(fig. 1)
The points that require lubrication are illustrated in
. l which also shows the manner in which this should
be done.
Clean all oil fittings prior to oiling.
An oil gun is supplied with the machine for lubricating
the points marked G) .
Keep all the oil fittings, the oil, oil gun, perfectly
clean.
We recommend the following oils though others of similar
characteristics may be used :
BP
ENERGOL
HP
20 c
BP
GULF
52
Gulf
BP
ENERGOL
HP
10 ;c
BP
GULF
59
Gulf
WAY
LUBRICANT
MEDIUM
Chevron
VACTRA 1
Mobiloil
FEB IS K -
43
Esso
TONNA OIL
27
Shell
FEB IS K -
53
Esse
10 - CLEANING
(fig. 2 a & b)
For cleaning, proceed as indicated below
(D Always use a .clean rag for cleaning the slideways
and the lead screws.
for the hydraulic circuit
(D Dismantle and clean the filter with great care and
cleanliness; replace the filter cartridges whenever
the hydraulic oil is changed.
QD Dismantle and clean the wire mesh carefully whenever
the hydraulic oil is changed.
for the dielectric circuit :
G) We recommend that the dielectric tank be drained and
cleaned after every 300 hours of machining, or sooner
if heavy roughing work is being performed.
Proceed as described below
Use the fill up hose of the tank to trans r the
dielectric fluid into a drum, taking care not to
suck up the residues that have settled on the floor
of the tank. (After a suitab period for decanting,
the fluid can be used again) .
Thoroughly c an the tank, the cooling coils, etc ..
to eliminate all deposits.
