37

-

8~10

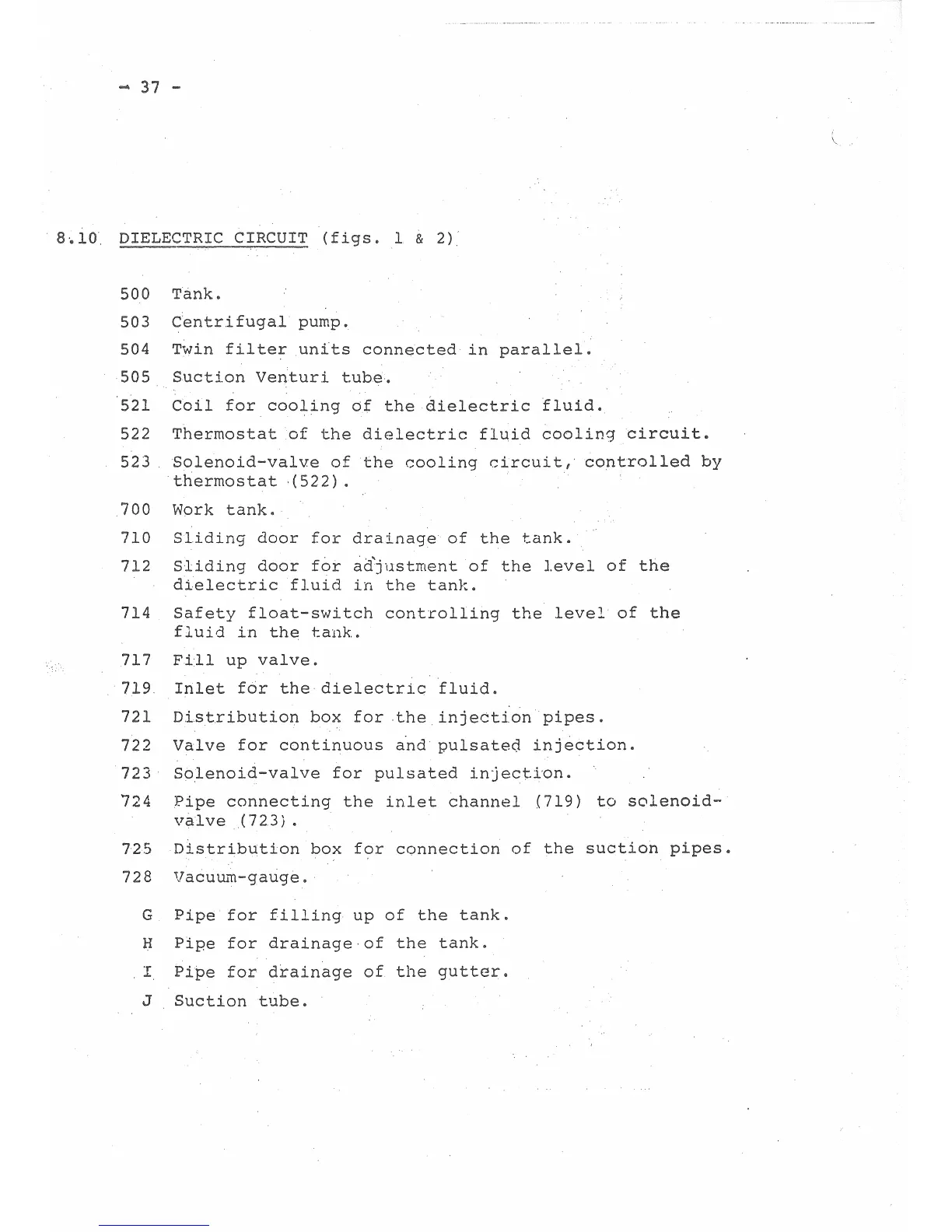

DIELECTRIC CIRCUIT

(figs.

l & 2)

500

Tank.

503

C~ntrifugal

pump.

504

Twin

filter

units

connected

in

parallel.

505

Suction

Venturi

tube.

521

Coil

for

cooling

of

the

~ielectric

fluid.

522

Thermostat

of

the

dielectric

fluid

cooling

circuit.

523

Solenoid-valve

of

the

cooling

circuit,

controlled

by

thermostat

·(522).

700

Work

tank.

710

Sliding

door

for

drainage

of

the

tank.

712

Sliding

door

for

ad'justrnent

of

the

level

of

the

dielectric

fluid

in

the

tank.

714

Safety

float-switch

controlling

the

level

of

the

fluid

in

the

tank.

717

Fill

up

valve.

719

Inlet

for

the

dielectric

fluid.

721

Distribution

box

for

the

injection

pipes.

722

Valve

for

continuous

and

pulsate~

inj~ction.

723

Solenoid-valve

for

pulsated

injection.

724

Pipe

connecting

the

inlet

channel

(719)

to

solenoid-

valve

(723}.

725

Distribution

box

for

connection

of

the

suction

pipes.

7 2 8

Vacuwll-gauge.

G

Pipe

for

filling

up

of

the

tank.

H

Pipe

for

drainage·

of

the

tank.

I

Pipe

for

drainage

of

the

gutter.

J

Suction

tube.
