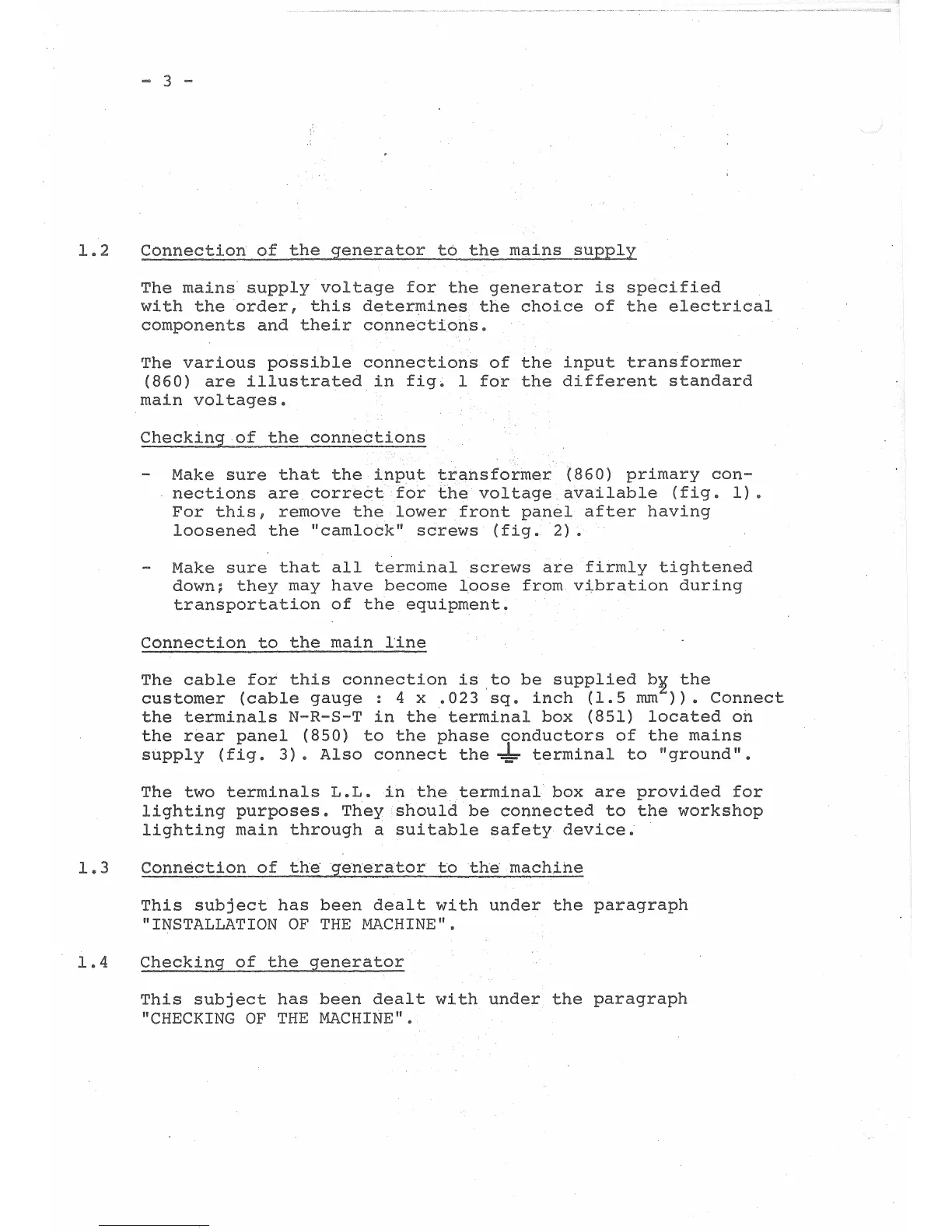

- 3 -

1.2

Connection

of

the

generator

t6

the

mains_supply

mains

supply

voltage

for

generator

is

specified

with

the

order,

this

determines

the

choice

of

the

electrical

components

and

their

connections.

The

various

possible

connections

of

the

input

transformer

(860)

are

illustrated

in

fig~

1

for

the

different

standard

main

voltages.

Checking

of

the

connections

Make

sure

that

the

input

transformer

(860)

primary

con-

nections

are

correct

for

the

voltage

available

(fig.

l).

For

this,

remove

the

lower

front

panel

after

having

loosened

the

"camlock"

screws

(fig.

2).

Make

sure

that

all

terminal

screws

are

firmly

tightened

down;

they

may

have

become

loose

from

vibration

during

transportation

of

the

equipment.

Connection

to

the

main

line

The

cable

for

this

connection

is

.to

be

supplied

b¥

the

customer

(cable

gauge

: 4 x

.023

sq.

inch

(1.5

mm

))

•

Connect

the

terminals

N-R-S-T

in

the

terminal

box

(851)

located

on

the

rear

panel

(850)

to

the

phase

conductors

of

the

mains

supply

(fig.

3).

Also

connect

the-!-

terminal

to

"ground".

The

two

terminals

L.L.

in

the

terminal

box

are

provided

for

lighting

purposes.

They

should

be

connected

to

the

workshop

lighting

main

through

a

suitable

safety

device.

1.

3

Connection

of

the·

g:enerator

to

the

machine

This

subject

has

been

dealt

with

under

the

paragraph

"INSTALLATION

OF

THE

MACHINE".

1.4

Checking

of

the

generator

This

subject

has

been

dealt

with

under

the

paragraph

"CHECKING

OF

THE

MACHINE

11

•
