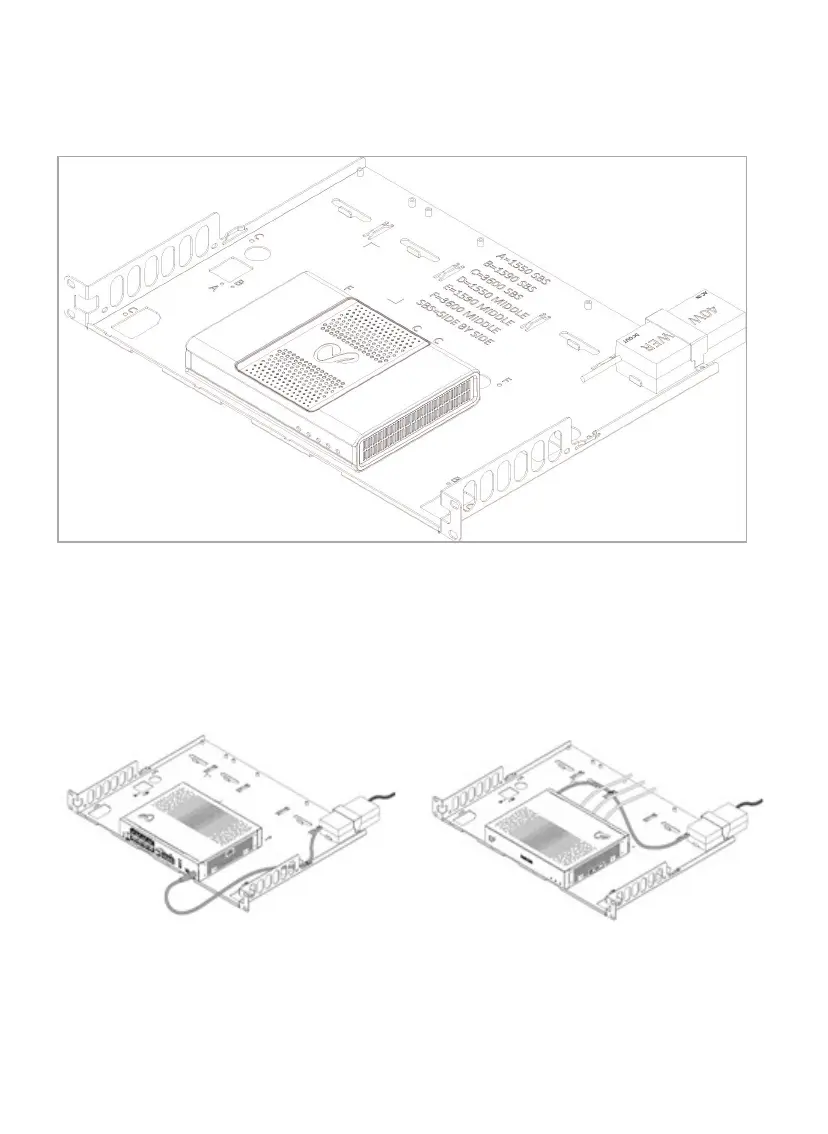

1530 / 1550 single installation:
LEDs are facing the front, and ports are facing the rear of the shelf.
Note - The front panel of the appliance is located 5 mm from the front of the
shelf.
1570 / 1590 single installation:
LEDs are facing the rear, and ports
are facing the front of the shelf.
LEDs are facing the front, and ports
are facing the rear of the shelf.
Note - The rear panel of the
appliance is flush with the front of the
shelf.
Note - The front panel of the
appliance is flush with the front of the
shelf.
