Attaching the Appliance Rails to the Appliance
Rack Mounting Page 19
To attach the appliance rails:
1. Set the appliance rail on the side of the appliance. The ridges on the appliances rails point

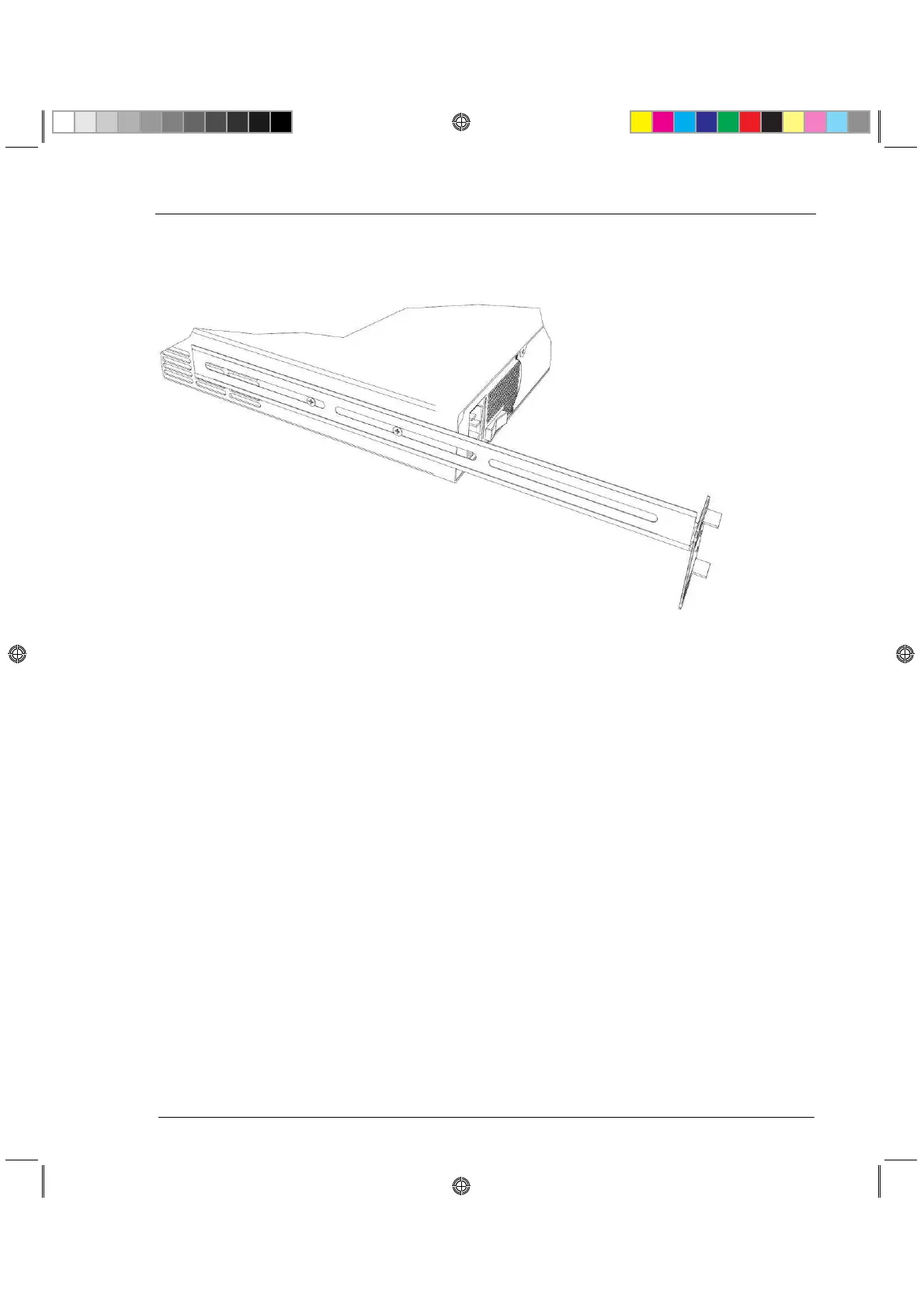

to the appliance. This diagram shows the appliance rail and rail plate positioned correctly:
2. Attach the appliance rails to the appliance using three appliance rail screws.
3. Do steps 1 and two again for the other side of the appliance.
