Chenbro RM23608 - Mini SAS HD Connector: CB1, CB2; HDD Connector (CN011, CN021, CN031, CN041, CN051, CN061, CN071, CN081)

Chenbro Storage Chassis
8-Port 12Gbps Mini-SAS HD Backplane User Manual
Http://www.chenbro.com
9

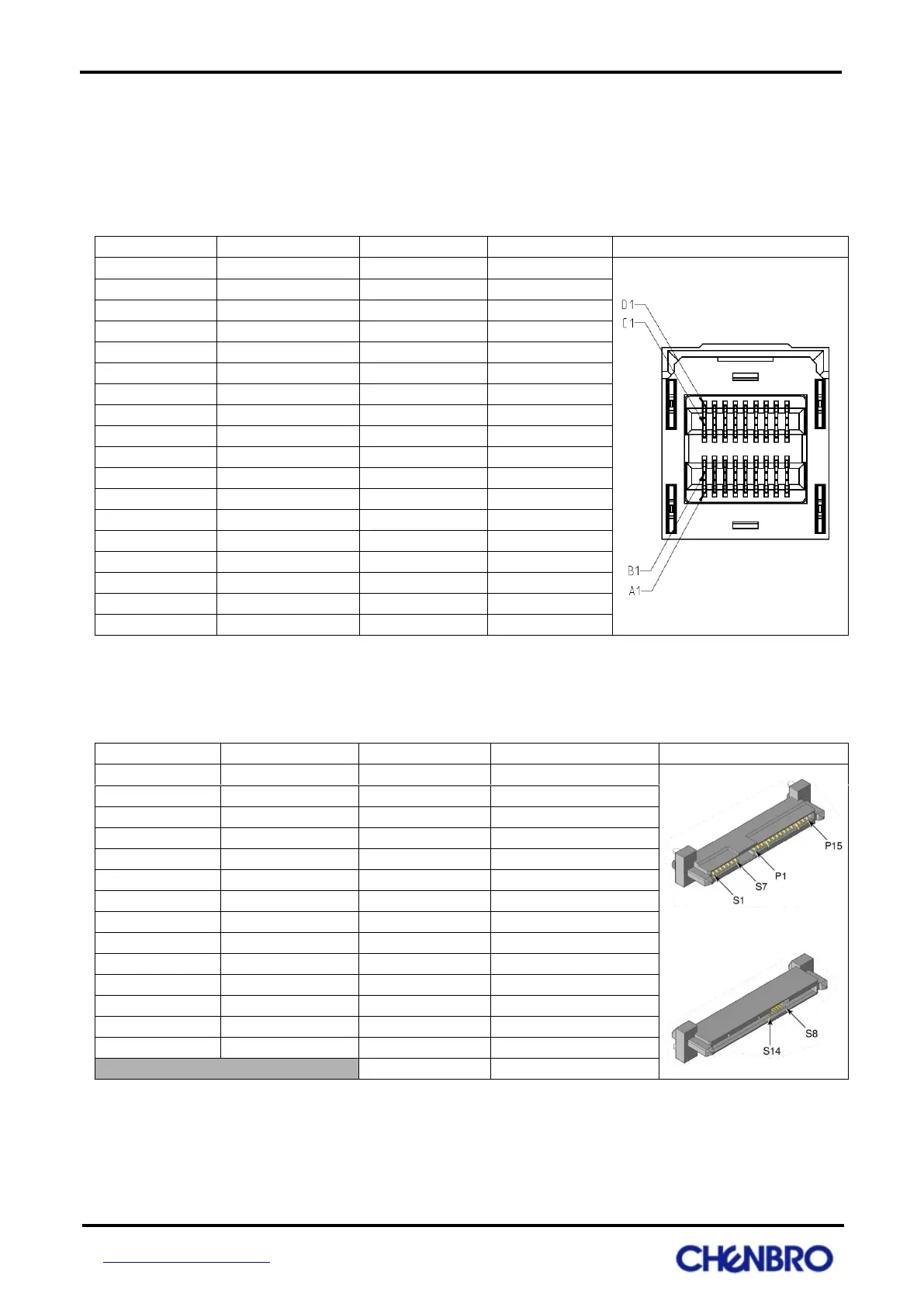

Mini SAS HD Connector: CB1, CB2
Mini SAS HD connectors are used to link with host or cascade to other active backplane. backplane will
automatically switch as downstream (cascade) or upstream (host) mode.
PIN-Number
PIN-Define
PIN-Number
PIN-Define
Drawing
A1
NA
C1
GND
A2
NA
C2
NA
A3
GND
C3
GND
A4
RP1
C4
TP1
A5
RN1
C5
TN1
A6
GND
C6
GND
A7
RP3
C7
TP3
A8
RN3
C8
TN3
A9
GND
C9
GND
B1
NA
D1
NC
B2
GND
D2
NA
B3
GND
D3
GND
B4
RP0
D4
TP1
B5
RN0
D5
TN1
B6
GND
D6
GND
B7
RP2
D7
TP2
B8
RN2
D8
TN2
B9
GND
D9
GND
HDD Connector (CN011, CN021, CN031, CN041, CN051, CN061,
CN071, CN081)
It is used to connector with SAS/SATA HDD.
PIN-Number
PIN-Define
PIN-Number
PIN-Define
Drawing
S1
GND
P1
NC
S2
RP
P2
NC
S3
RN
P3
NC
S4
GND
P4
GND
S5
TN
P5
POWER ENABLE
S6
TP
P6
GND
S7
GND
P7
5V PRE-CHARGE
S8
NC
P8
5V
S9
NC
P9
5V
S10
NC
P10
GND
S11
NC
P11
NC
S12
NC
P12
GND
S13
NC
P13
12V PRE-CHARGE
S14
NC
P14
12V
P15
12V
