CHERY A21 SERVICE MANUAL MECHANISM OF 2.0NALC ENGINE
28

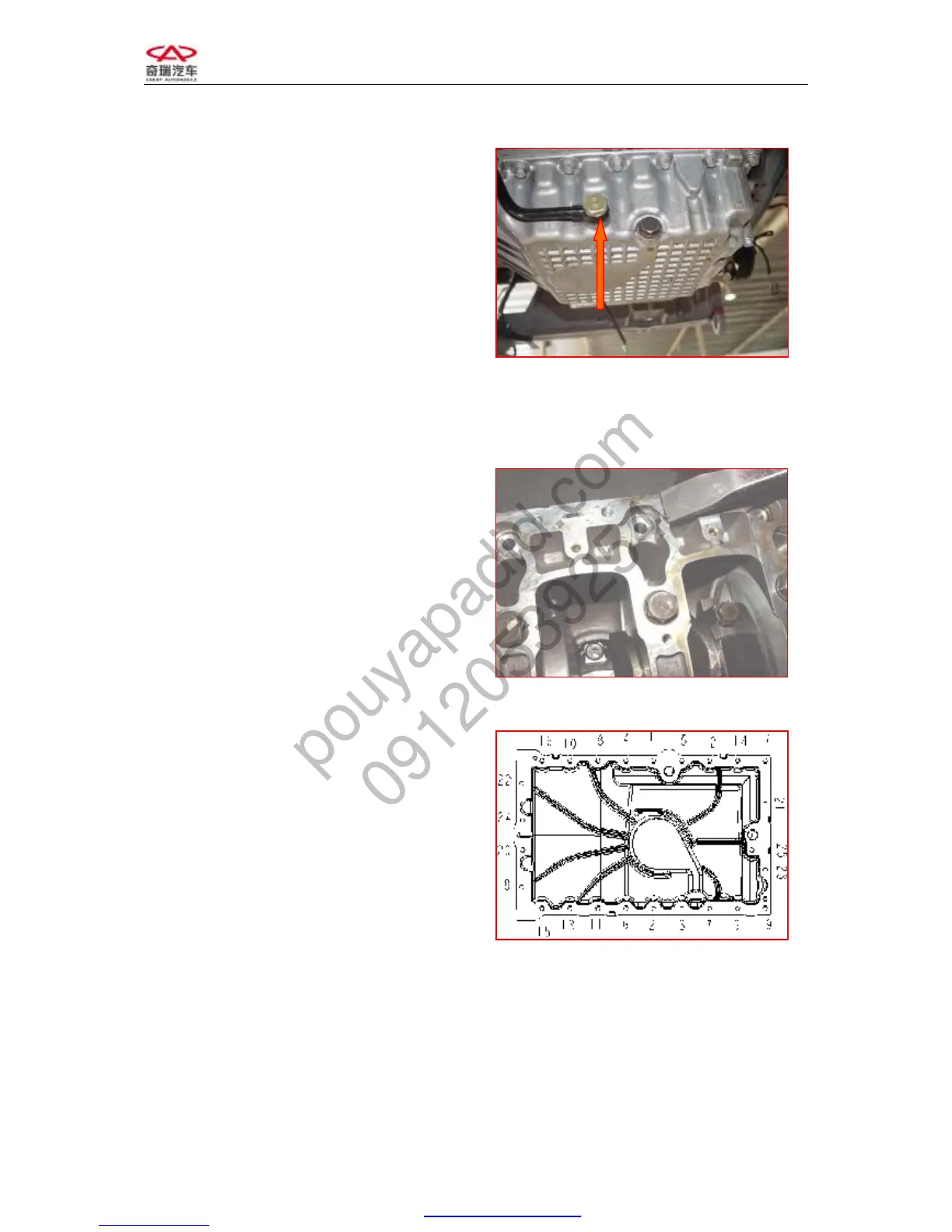

4) Remove the connecting bolt between the
oil return pipe of PVC valve and the oil
pan with 15# sleeve wrench.
5) Tap the edge of oil pan with rubber
pestle, and then remove the oil pan.
Note: Pay attention to safety because the oil
pan might fall down when being tapped.
6) Clean the engine frame with
right-angled tool to get rid of old Le Tai
glue.
Note: Do not lacerate the frame surface.
1.2.2 Installation
1) Spread Le Tai 5910 glue on the
connection surfaces of frame and oil
pan, close the oil pan and fasten the
fastening bolt of oil pan.
Note: Spread glue to the inner of hole for
installing bolt on the oil pan!
2) Screw the bolt. Screw to combine
enough at first then to get specified
Torque.
See the diagram for screwing sequence.
Torque: 15±3NM
3) Infuse engine oil to specified capacity.
