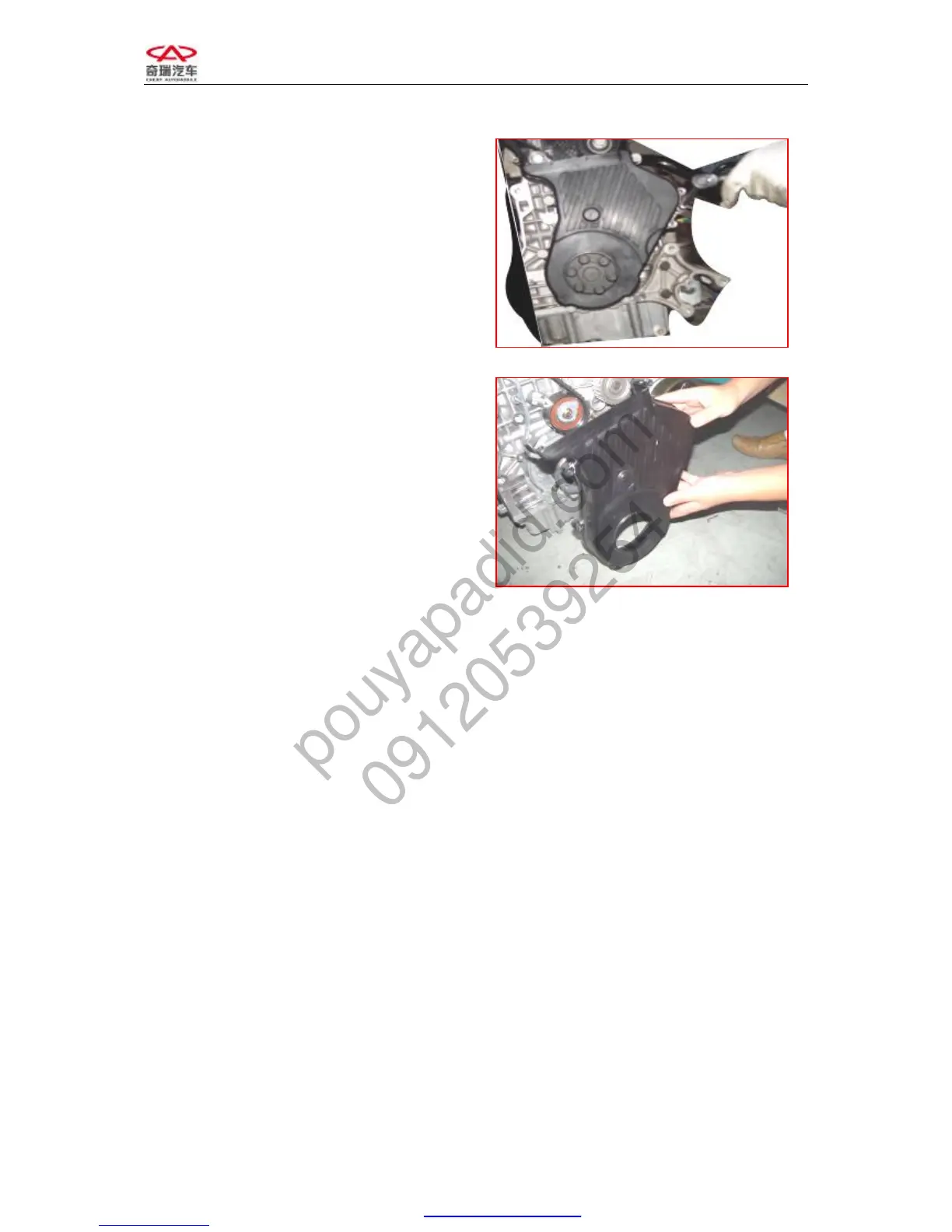

CHERY A21 SERVICE MANUAL MECHANISM OF 2.0NALC ENGINE
11
5) Remove the 5 bolts on the lower cover
of timing belt with 10# sleeve, ratchet
wheel and ratchet rod.
6) Remove the lower cover.
1.3 Inspection
Observe the timing cover and the timing belt.
Replace the timing belt cover or adjust the
position of timing belt if any trail from crack
or friction is found.
1.4 Installation
The installing steps are reverse to those for
removal.
Note: Install the lower cover first and then
install the upper one.
2. Replace timing belt
2.1 Needed tools and auxiliary materials
Allen wrench, 10#, 13# sleeve, ratchet wheel
and ratchet rod.
2.2 Removal
1) Remove the upper and lower covers of
timing belt (see replace covers of
