CHERY A21 SERVICE MANUAL MECHANISM OF 2.0NALC ENGINE
27
II. MAINTENANCE
1. Replace oil pan
1.1 Needed tools and auxiliary materials
10# open end wrench, 10#, 15# and 17#
sleeve, ratchet wheel and ratchet rod, Le Tai
5901 Glue, engine oil
1.2 Process of Replacement
1.2.1 Process of removal

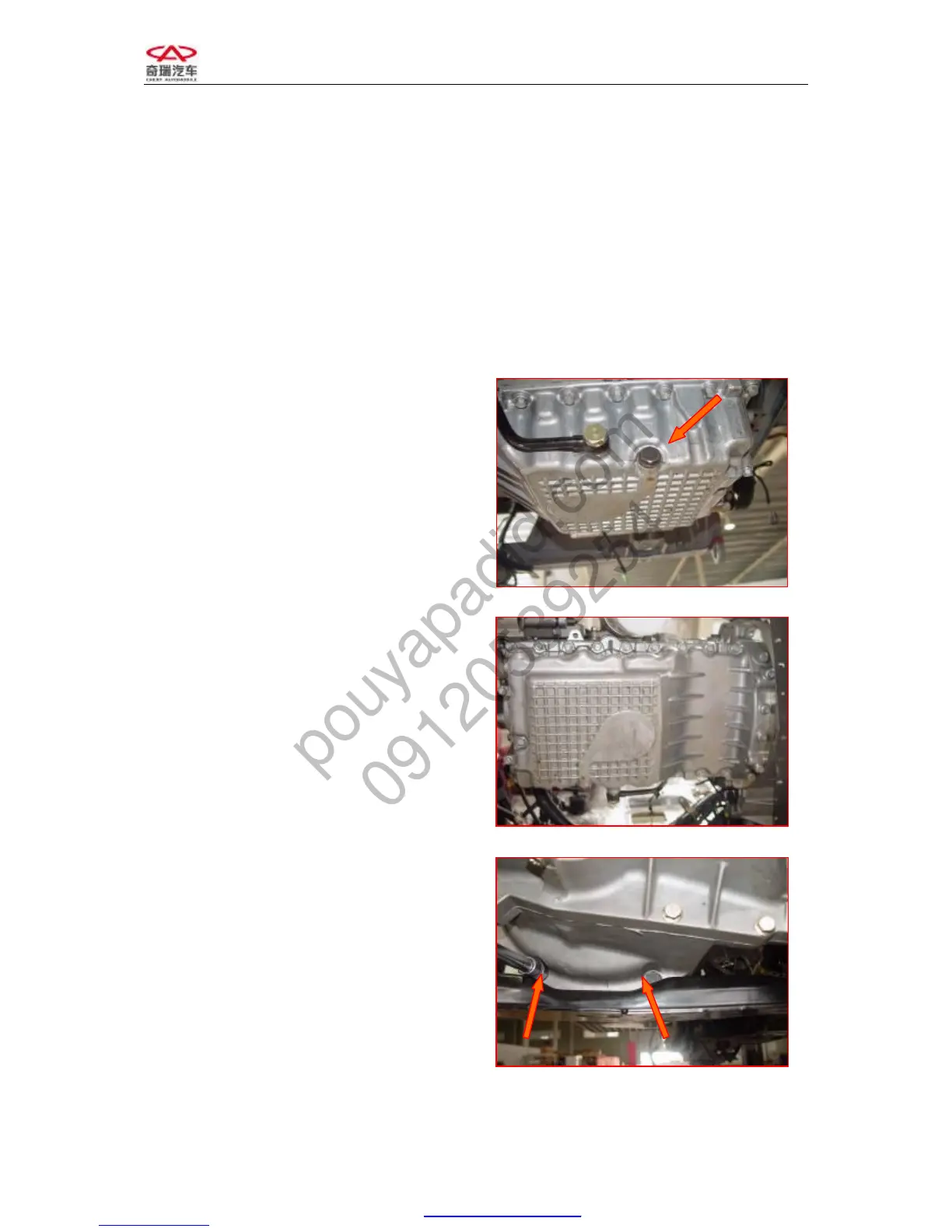

1) Loosen the oil discharge bolt of oil pan
to discharge the engine oil.
Note: Engine oil should be stored in special
container. And Pay attention to environment
protection.
2) Remove the fastening bolt of oil pan
with 10# open end wrench and 10#
sleeve.（18 bars of M7×25, 3 bars of
M7×40,4 bars of M7×95）
3) Remove the connecting bolt (2 bars,
black) between oil pan and transmission
housing with 17# sleeve wrench.
