CHERY A21 SERVICE MANUAL MECHANISM OF 2.0NALC ENGINE
29
2 Replace the engine oil strainer
2.1 Needed tools and auxiliary materials
10# open end wrench, 10#, 15#, 17# sleeve,
ratchet wheel and ratchet rod, Le Tai 5901
Glue, engine oil
2.2 Process of replacement
2.2.1 Process of removal
1) Remove the oil pan.（See “replace oil
pan” for details）

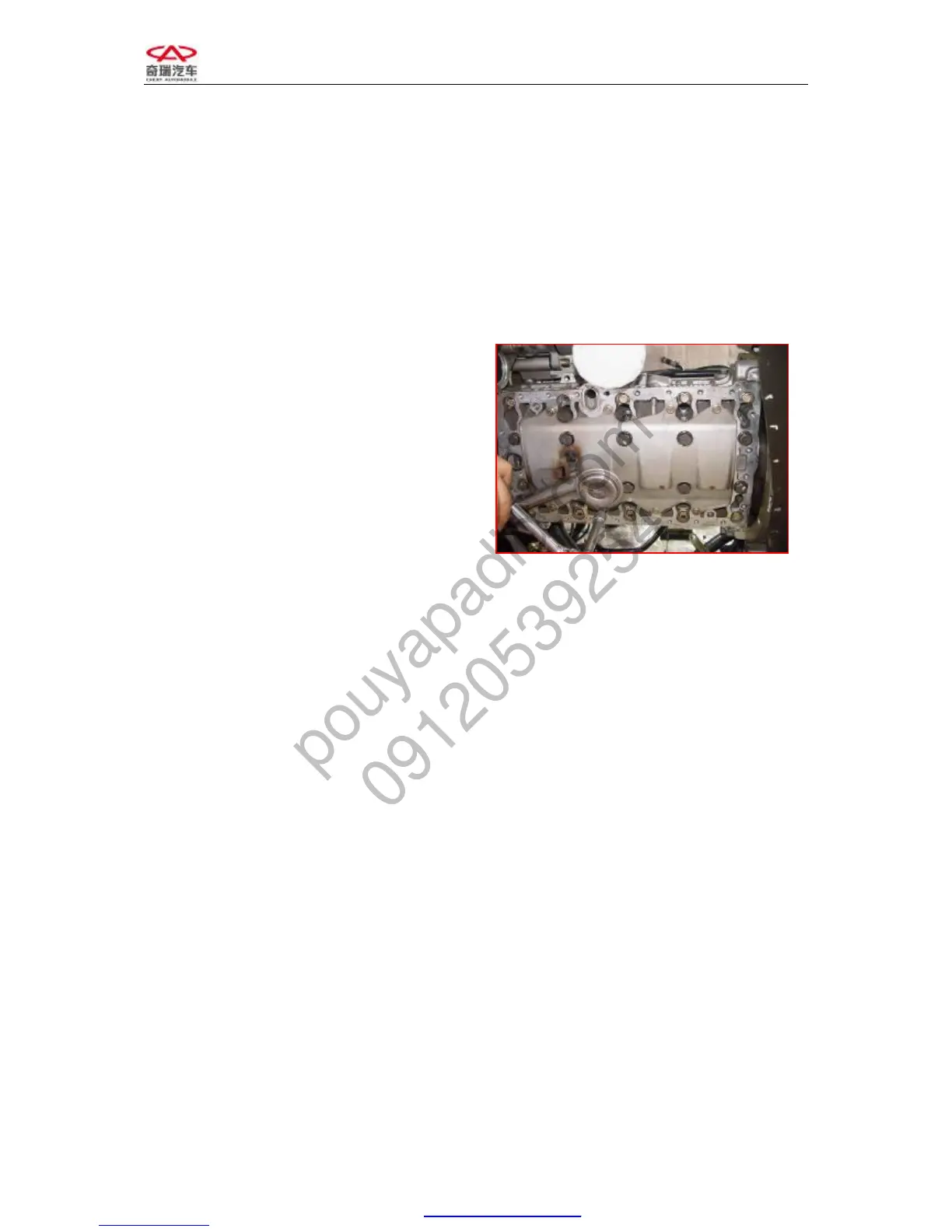

2) Remove the connecting bolt between
engine oil strainer and frame with 10#
sleeve wrench.（total 8 bars）
3) Draw out the engine oil strainer
carefully.
2.2.2 Installation
1) Spin the nozzle of engine oil strainer
into the frame carefully.
2) Mount the 8 bolts for the strainer and
fasten them.
Note: the bolts should be mounted with Le
Tai 243 glue.
Torque: 8±3Nm
3) Install oil pan (See “installation of oil
pan” for details).
