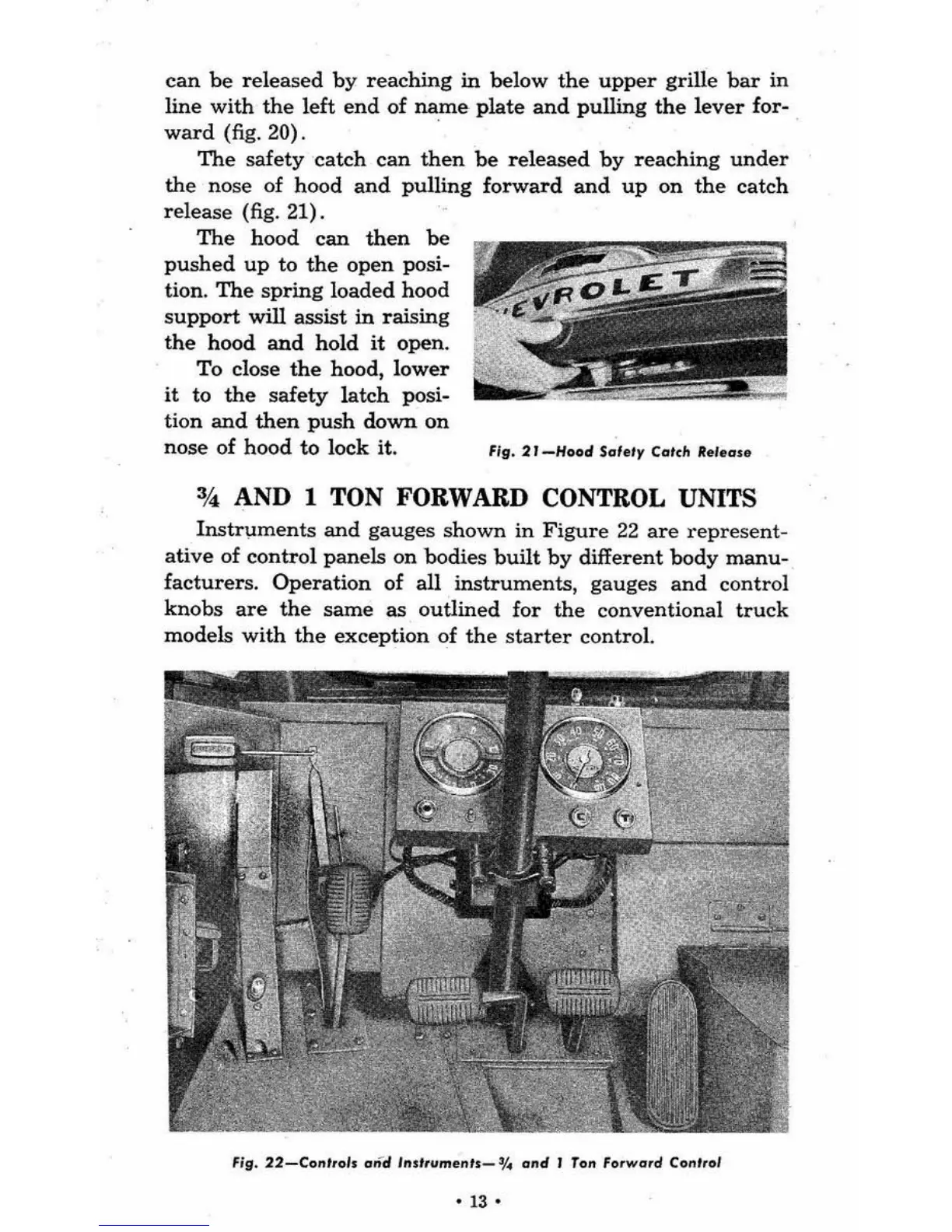

can be released by reaching in below the upper grille bar in
line with the l eft end of name plate and pulling the lever for-
ward (fig. 20).
The safety catch can then be released by reaching under
the no se of hood and pulling forward and up on the catch
release (fig. 21).
The hood can then be
pushed up to the open posi-
tion.
The spring loaded hood
support will assist in raising
the hood and hold it open.
To close the hood, lower
it to the safety latch posi-
tion and then push down on
nose of hood to lock it. F ig. 2' -Hood Saf.,y COl." R. '. all
34, AND 1 TON FORWARD CONTROL UNITS
Instrl,lments and gauges shown in Figure 22 are represent-
ative of control panels on bodies built by different body manu-
facturers. Operation of all instruments, gauges and control
knobs are the same as outlined for the conventional truck
models with the exception of the starter control.
Fig. 22-Co,,',ol. and I"II,um e ,,'s_ 0/. a"d , Ton fo,wa,d Co nl,ol
-13-
